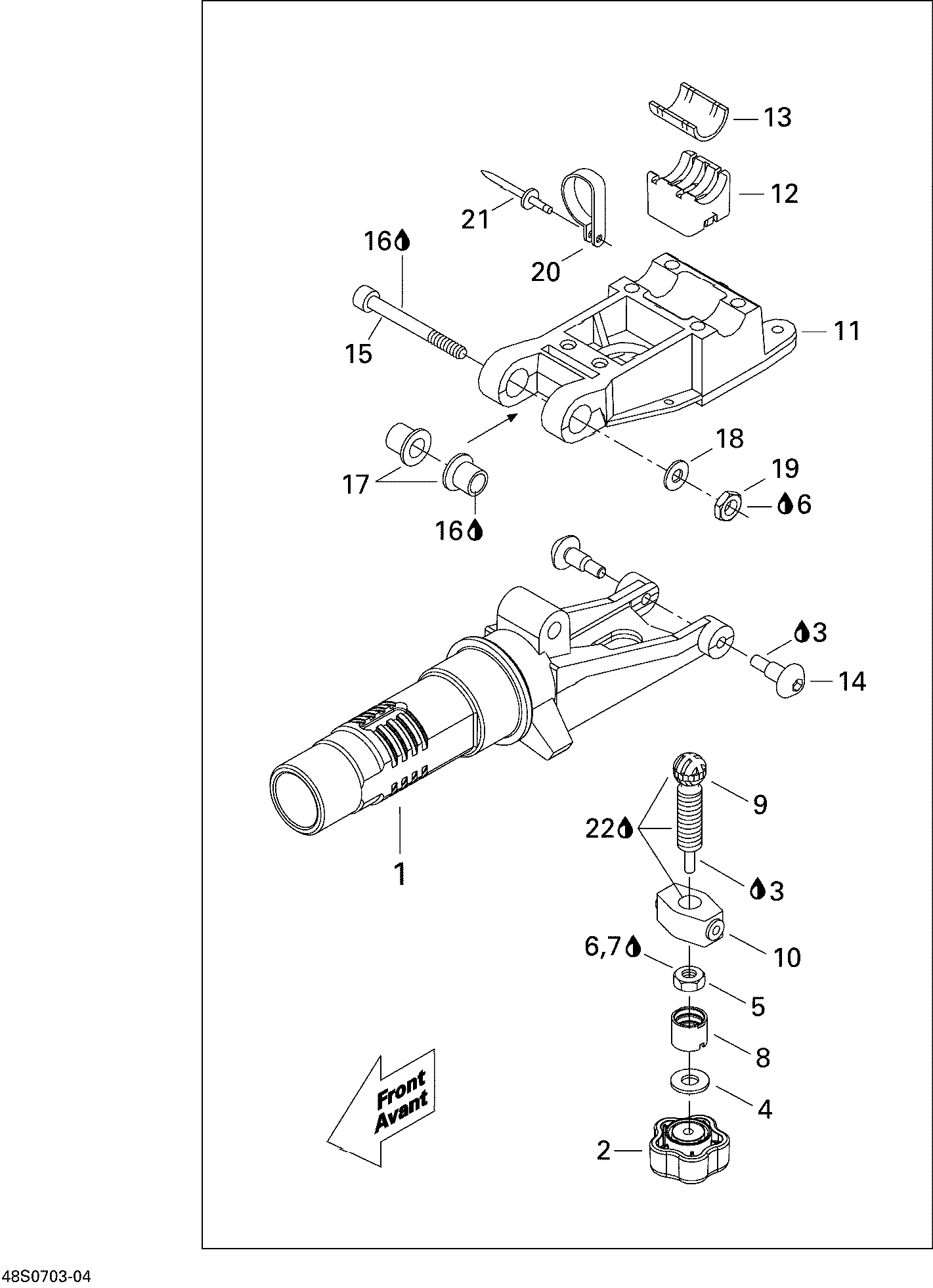

07- Adjustable Handle Bar для BRP GTX LTD - 2007
-
№АртикулНазвание
-
1277000758400 Steering StemSteering Stem
-
2277000764 Adjuster HandleAdjuster Handle
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4234082600 Flat Washer 8 mmFlat Washer 8 mm
-
5232180600 Nut M8Nut M8
-
6293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
7293800041 Loctite, Primer N, 128 GLoctite, Primer N, 128 G
-
8277001529 Stopper BushingStopper Bushing
-
9277001531 ScrewScrew
-
10277001530 BlockBlock
-
11277000901 Steering SupportSteering Support
-
12277000762 StopperStopper
-
13293830098 Rubber PadRubber Pad
-
14277000763 Threaded PivotThreaded Pivot
-
15250000004 Socket Head Screw M10 X 73 Scotch GripSocket Head Screw M10 X 73 Scotch Grip
-
16293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
17277000844 Support BushingSupport Bushing
-
18234001600 Flat Washer 10 mmFlat Washer 10 mm
-
19232100600 Hex Jam Nut M10Hex Jam Nut M10
-
20293750021 Clamp TieClamp Tie
-
21293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
