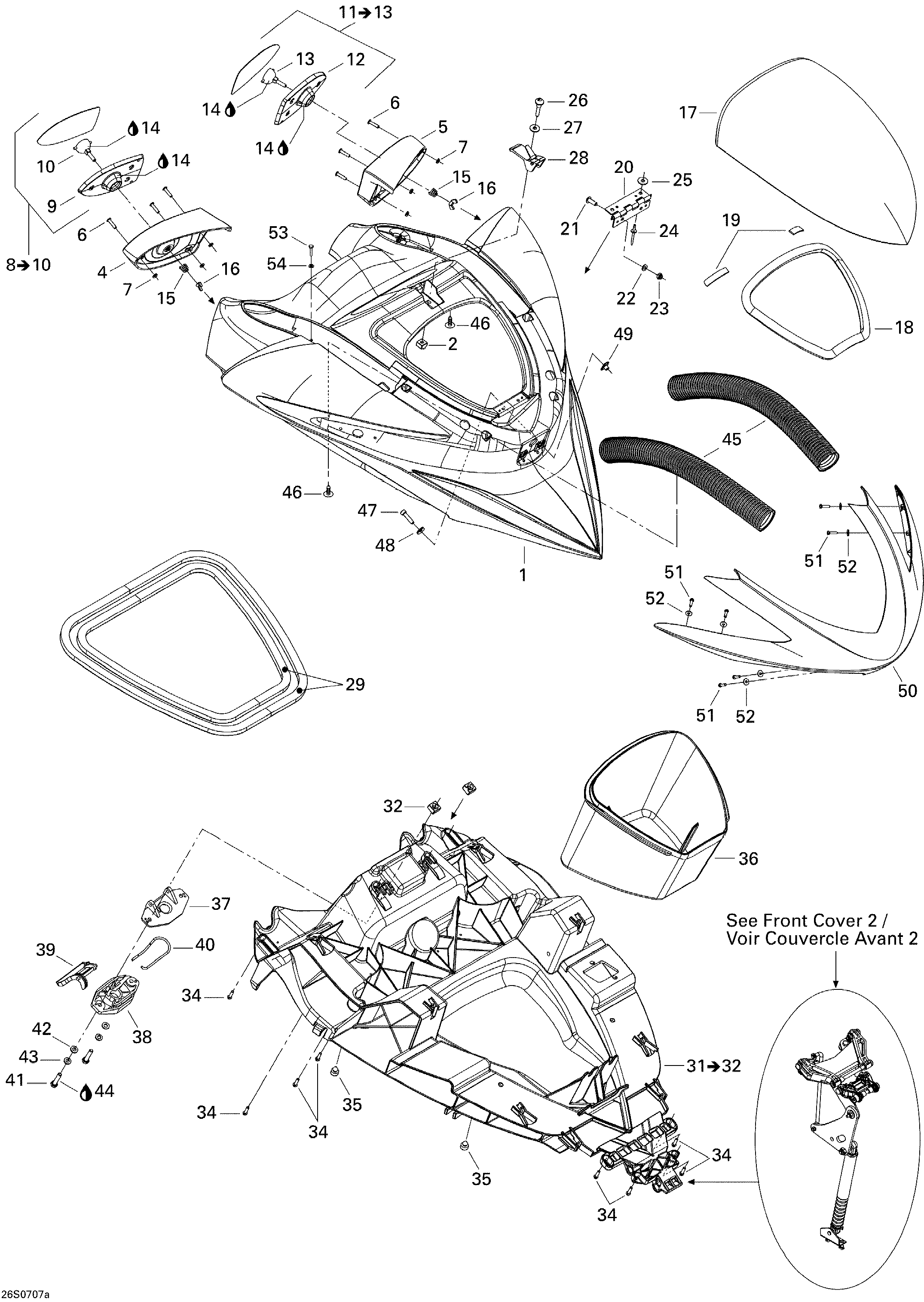

09- Front Cover 1 для BRP RXP 1503 NA - 2007
-
№АртикулНазвание
-
1269501589 Upper Storage Cover. Deep BlackUpper Storage Cover. Deep Black
-
1269501592 Upper Storage Cover. Viper RedUpper Storage Cover. Viper Red
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
4269501590 RH Mirror Housing. YellowRH Mirror Housing. Yellow
-
4269501593 RH Mirror Housing. Viper RedRH Mirror Housing. Viper Red
-
5269501591 LH Mirror Housing. YellowLH Mirror Housing. Yellow
-
5269501594 LH Mirror Housing. Viper RedLH Mirror Housing. Viper Red
-
6293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
7213200016 Flat Washer, EmhartFlat Washer, Emhart
-
8269501633 RH Mirror Ass'y. Includes 8 to 10RH Mirror Ass'y. Includes 8 to 10
-
9269500697 Frame MirrorFrame Mirror
-
10269500079 Mirror Ball JointMirror Ball Joint
-
11269501634 LH Mirror Ass'y. Includes 11 to 13LH Mirror Ass'y. Includes 11 to 13
-
12269500697 Frame MirrorFrame Mirror
-
13269500079 Mirror Ball JointMirror Ball Joint
-
14293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
15269500453 Mirror SpringMirror Spring
-
16232661600 Wing Nut M6Wing Nut M6
-
17269501596 Access Cover. Deep BlackAccess Cover. Deep Black
-
17269501629 Access Cover. Viper RedAccess Cover. Viper Red
-
18293250087 GasketGasket
-
19293200020 Seal, MeterSeal, Meter
-
20269500338 HingeHinge
-
21205451660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
22211200035 Flat WasherFlat Washer
-
23232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
24204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
25234052600 Flat Washer 5 mmFlat Washer 5 mm
-
26291001242 Anchoring StudAnchoring Stud
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28269501487 LatchLatch
-
29293200093 Neoprene SealNeoprene Seal
-
31269501379 Lower Storage Cover. Includes 31 to 32Lower Storage Cover. Includes 31 to 32
-
32269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
34241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
35293830005 Rubber Plug, BlackRubber Plug, Black
-
36269501133 Storage BoxStorage Box
-
37269700076 Latch CoverLatch Cover
-
38269000015 Latch BaseLatch Base
-
39269700077 Latch LeverLatch Lever
-
40269700017 Latch SpringLatch Spring
-
41207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
42234061600 Flat Washer M6Flat Washer M6
-
43234161601 Lock Washer Helical M6Lock Washer Helical M6
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45291002489 Ventilaltion Hose (Black)Ventilaltion Hose (Black)
-
46293730011 Dart, BlackDart, Black
-
47205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
48234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
49293100003 Nut M6Nut M6
-
50269501597 Front GrillFront Grill
-
51241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
52234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
53243163560 Plastite Hex Screw M6.8 X 35Plastite Hex Screw M6.8 X 35
-
54234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
