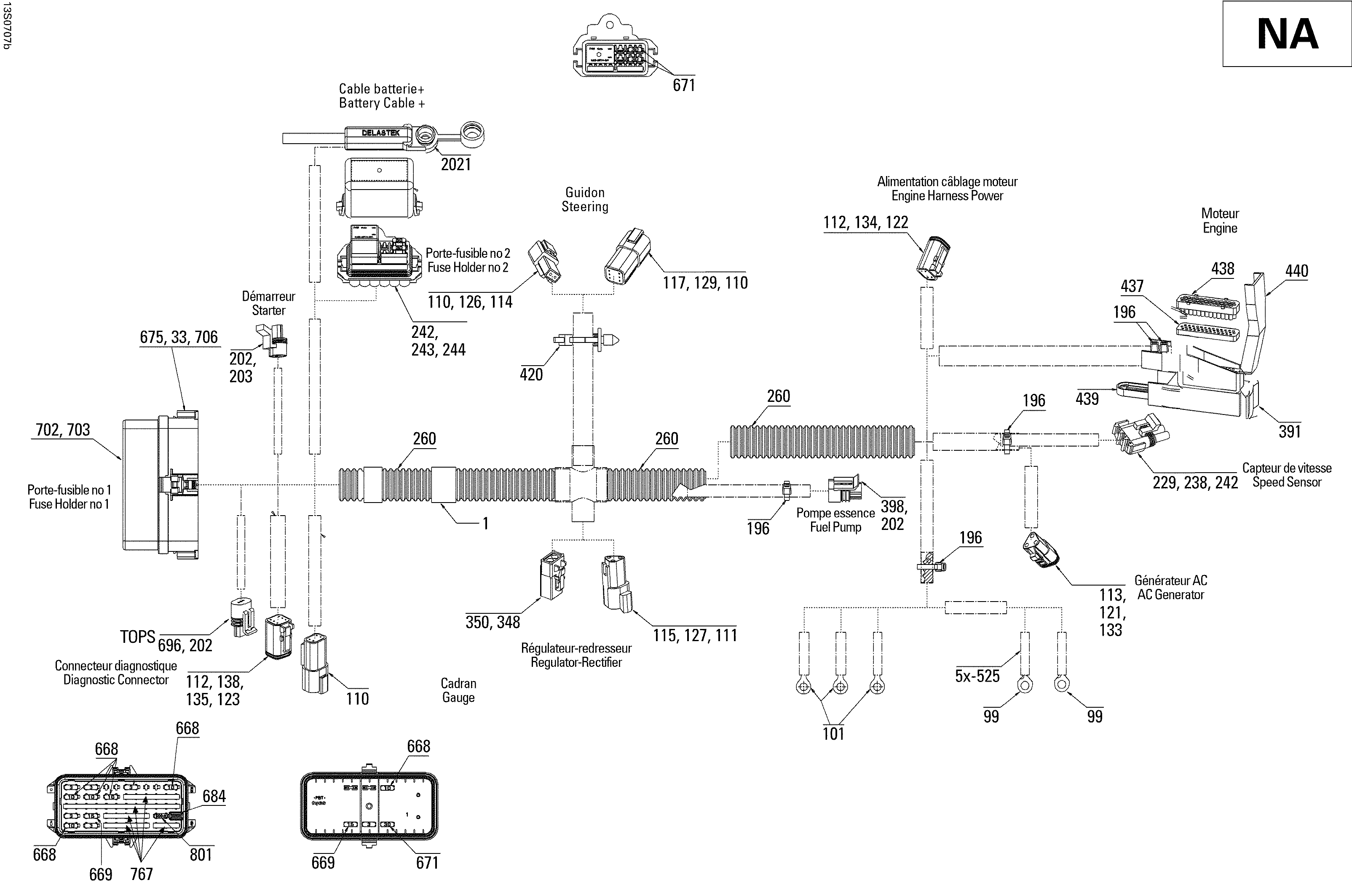

10- Electrical Harness NA 1 для BRP RXP 1503 NA - 2007
-
№АртикулНазвание
-
1278002178 Rear Harness Ass'y. Includes 1 to 2021Rear Harness Ass'y. Includes 1 to 2021
-
33278000999 Wire SealWire Seal
-
99278000992 Open BarrelOpen Barrel
-
101278001392 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
111515175823 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
114409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
115409207000 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
117270000137 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
121409207400 Female HousingFemale Housing
-
122278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
123278000736 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
133409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
134278000738 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Sealing CapSealing Cap
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
229278000223 Female TerminalFemale Terminal
-
238278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
244278000216 Wire SealWire Seal
-
260515175319 Tubing 22mmTubing 22mm
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
391278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
398278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
525710000482 Shrink TubingShrink Tubing
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
696278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
767278002165 Bus BarBus Bar
-
801278002188 Resistance 500 OHMSResistance 500 OHMS
-
2021278002163 Battery CableBattery Cable
