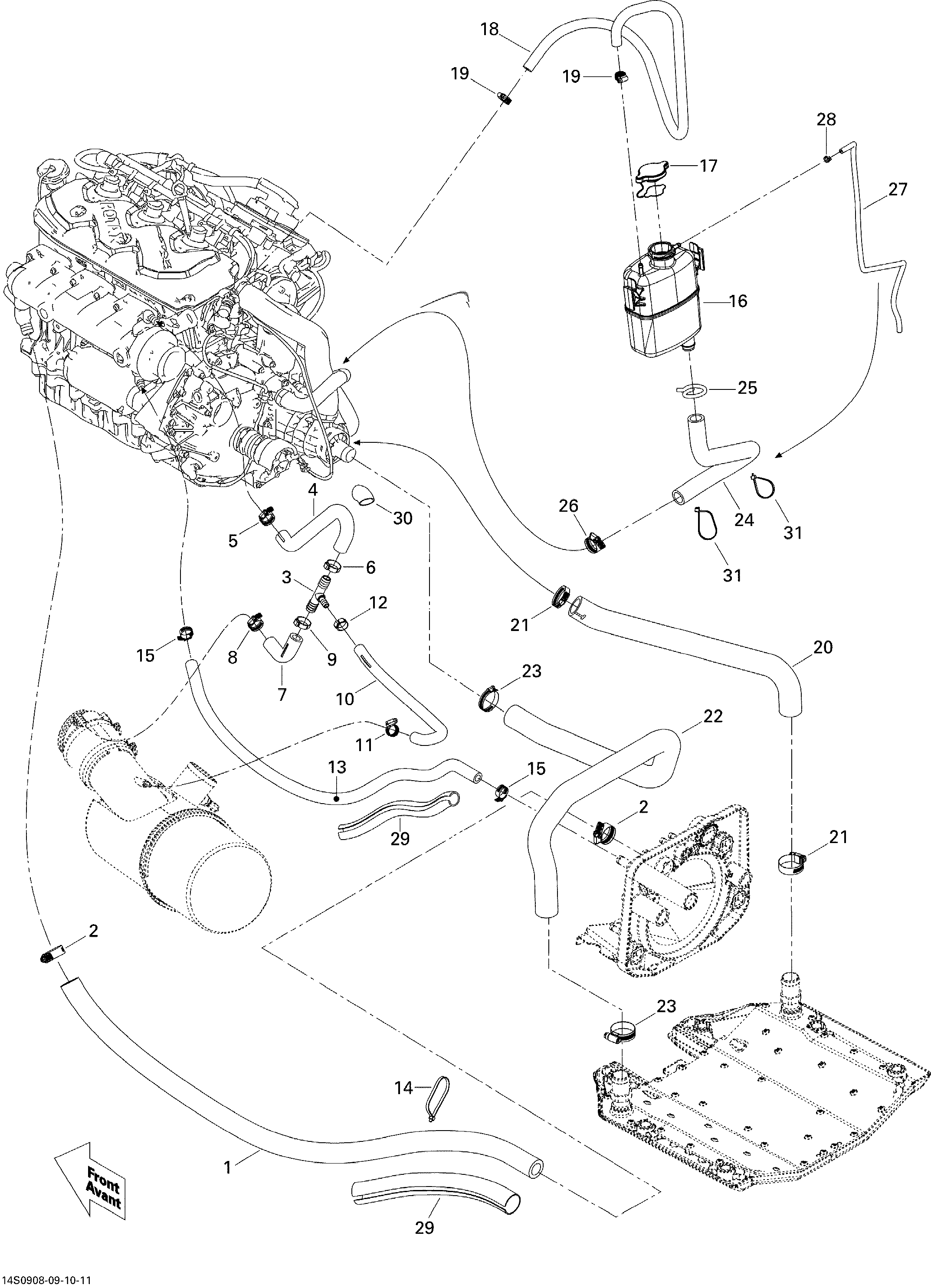

01- Cooling System для BRP Wake 155 - 2009
-
№АртикулНазвание
-
1276000158 Hose 19 mmHose 19 mm
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3293710116 T-FittingT-Fitting
-
4276000191 Formed HoseFormed Hose
-
5293650172 Tridon ClampTridon Clamp
-
6293650012 Oetiker ClampOetiker Clamp
-
7276000137 Lower Formed HoseLower Formed Hose
-
8293650172 Tridon ClampTridon Clamp
-
9293650012 Oetiker ClampOetiker Clamp
-
10276000209 Formed HoseFormed Hose
-
11293650171 Tridon Hose ClampTridon Hose Clamp
-
12293650030 Oetiker ClampOetiker Clamp
-
13276000151 Hose 12.5 mmHose 12.5 mm
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15293650172 Tridon ClampTridon Clamp
-
16276000086 Coolant TankCoolant Tank
-
17276000100 Pressure Cap Ass'yPressure Cap Ass'y
-
18275500670 Hose 1/4''Hose 1/4''
-
19293650170 Hose ClampHose Clamp
-
20276000153 RH Radiator HoseRH Radiator Hose
-
21293650185 Tridon Gear ClampTridon Gear Clamp
-
22276000154 LH Radiator HoseLH Radiator Hose
-
23293650185 Tridon Gear ClampTridon Gear Clamp
-
24276000099 Hose 19 mmHose 19 mm
-
25293650115 Spring ClampSpring Clamp
-
26293650019 Tridon ClampTridon Clamp
-
27415080200 Polyurethane HosePolyurethane Hose
-
28293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
29409902200 Tubing 25 mmTubing 25 mm
-
30276000162 Shrink TubingShrink Tubing
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
