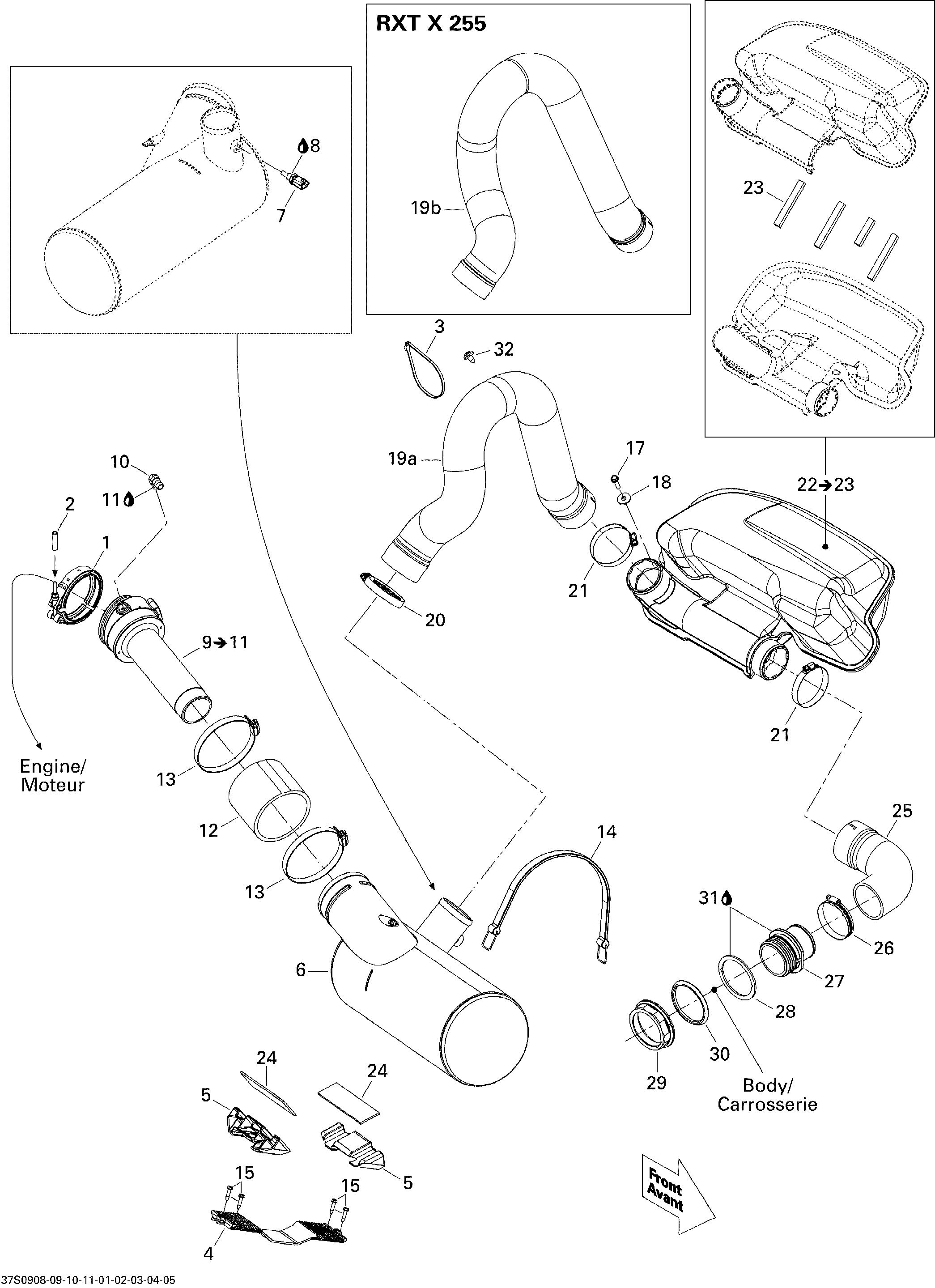

01- Exhaust System для BRP Wake 155 - 2009
-
№АртикулНазвание
-
1274001386 Exhaust ClampExhaust Clamp
-
2415080200 Polyurethane HosePolyurethane Hose
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4274001357 Exhaust SupportExhaust Support
-
5274001358 StopperStopper
-
6274001350 MufflerMuffler
-
7278001016 Temperature SensorTemperature Sensor
-
8293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
9274001354 Head Pipe Ass'y. Includes 9 to 11Head Pipe Ass'y. Includes 9 to 11
-
10293700023 Elbow Fitting 90°Elbow Fitting 90°
-
11293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
12274001348 Exhaust HoseExhaust Hose
-
13293650202 Gear ClampGear Clamp
-
14293850067 StrapStrap
-
15293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
17243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19a274001296 Exhaust Hose, FrontExhaust Hose, Front
-
20293650179 Tridon Gear ClampTridon Gear Clamp
-
21293650179 Tridon Gear ClampTridon Gear Clamp
-
22274001366 Resonator. Includes 22 to 23Resonator. Includes 22 to 23
-
23293200003 Seal, MeterSeal, Meter
-
24293830126 Rubber PadRubber Pad
-
25274001299 Exhaust Hose, RearExhaust Hose, Rear
-
26293650179 Tridon Gear ClampTridon Gear Clamp
-
27274001391 Exhaust OutletExhaust Outlet
-
28293250203 GasketGasket
-
29274000224 Nut 72 mmNut 72 mm
-
30274000225 Stabilizing WasherStabilizing Washer
-
31296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
32293730040 Mount DartMount Dart
