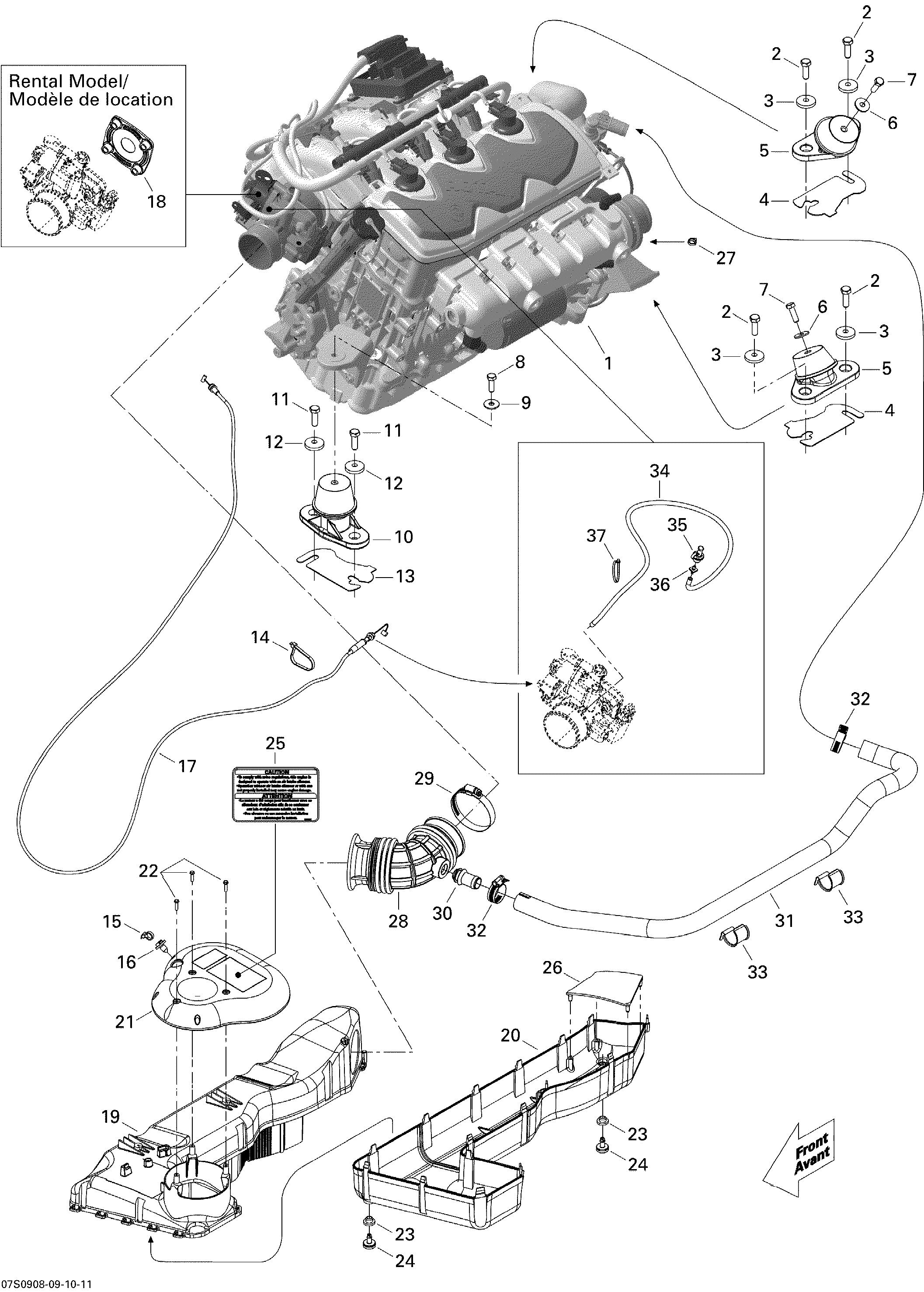

01- Engine And Air Intake Silencer для BRP Wake 155 - 2009
-
№АртикулНазвание
-
1420150317 Engine Long Block, 1503 NAEngine Long Block, 1503 NA
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000762 Shim 1.3 mmShim 1.3 mm
-
5270000688 Rubber MountRubber Mount
-
6234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10270000690 Rubber MountRubber Mount
-
11207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
12250200018 Cone WasherCone Washer
-
13270000762 Shim 1.3 mmShim 1.3 mm
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
16293730040 Mount DartMount Dart
-
17277001170 Throttle CableThrottle Cable
-
19273000244 Air Silencer UpperAir Silencer Upper
-
20273000190 Air Silencer LowerAir Silencer Lower
-
21273000266 Air Silencer CoverAir Silencer Cover
-
22241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
23293720064 GrommetGrommet
-
24275500454 Check ValveCheck Valve
-
25219902673 Caution Decal, Air SilencerCaution Decal, Air Silencer
-
26273000206 DeflectorDeflector
-
27293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
28270000628 Intake HoseIntake Hose
-
29293650179 Tridon Gear ClampTridon Gear Clamp
-
30273000234 BreatherBreather
-
31270000681 Formed HoseFormed Hose
-
32293650051 Tridon Gear ClampTridon Gear Clamp
-
33275500664 RetainerRetainer
-
34270000469 Hose 3 mmHose 3 mm
-
35293830120 Grommet CapGrommet Cap
-
36293710107 ConnectorConnector
-
37293750002 Tie-Rap 130 mmTie-Rap 130 mm
