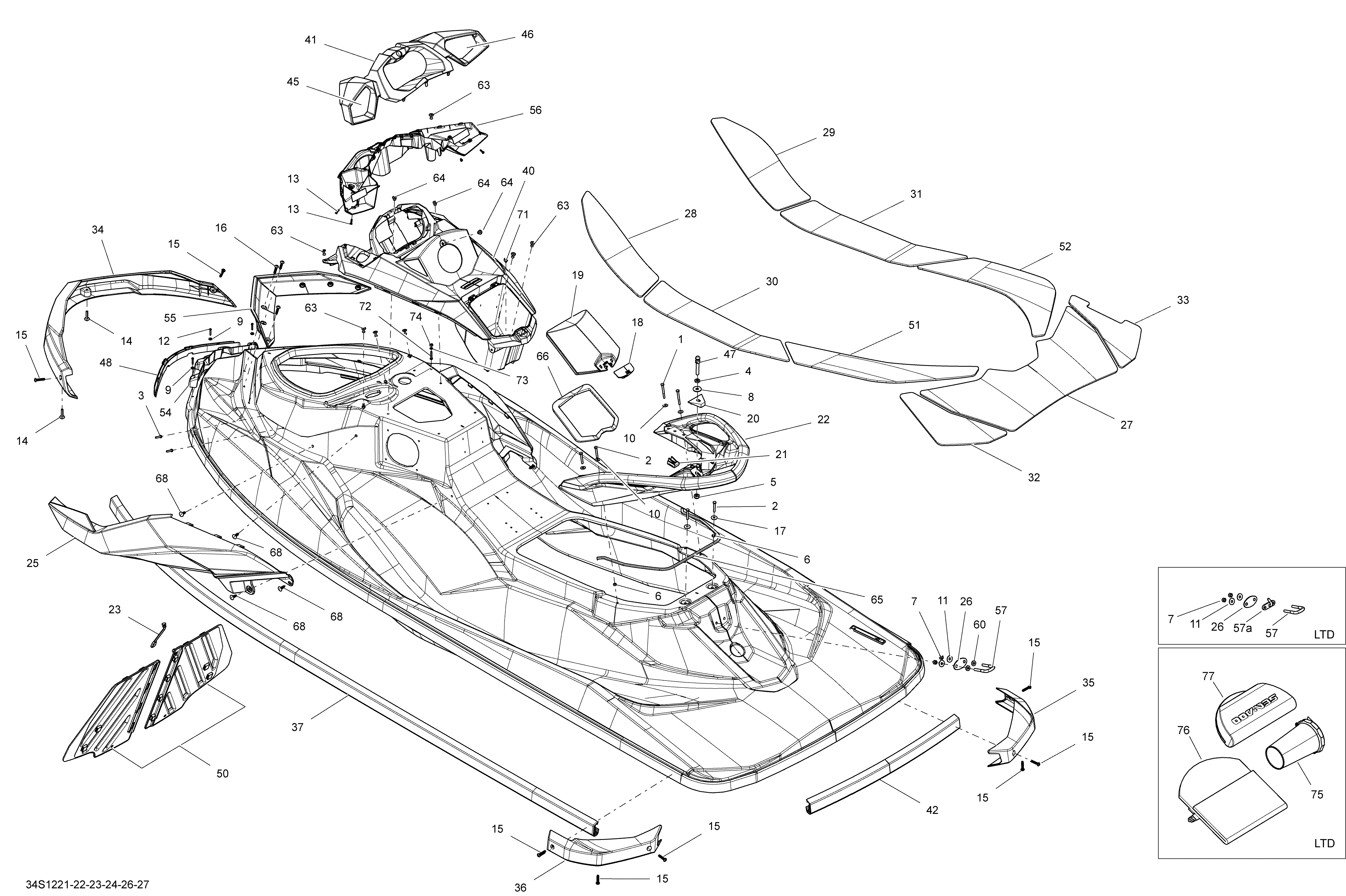

09- Body для BRP GTI SE 155 (30CA, 30CB) - 2012
-
№АртикулНазвание
-
1207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
2207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
5232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
9234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
13250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
14250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
15250000505 Torx ScrewTorx Screw
-
16250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
-
17250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
18264000019 Latch, BlackLatch, Black
-
19264000059 Glovebox Access DoorGlovebox Access Door
-
20269002125 Seat Stud SpacerSeat Stud Spacer
-
21269002126 Seat Stud SupportSeat Stud Support
-
22291004625 Black Rear HandleBlack Rear Handle
-
23269501743 StrapStrap
-
25269501812 RH Cosmetic Panel, WhiteRH Cosmetic Panel, White
-
25269501813 LH Cosmetic Panel, WhiteLH Cosmetic Panel, White
-
26291001386 Finition Plate, BlackFinition Plate, Black
-
27291003096 Swim Platform CarpetSwim Platform Carpet
-
28291003058 LH Front CarpetLH Front Carpet
-
29291003059 RH Front CarpetRH Front Carpet
-
30291003060 LH Front Center CarpetLH Front Center Carpet
-
31291003061 RH Front Center CarpetRH Front Center Carpet
-
32291003062 LH Rear CarpetLH Rear Carpet
-
33291003063 RH Rear CarpetRH Rear Carpet
-
34291003064 Front BumperFront Bumper
-
35291003065 RH Bumper CornerRH Bumper Corner
-
36291003066 LH Bumper CornerLH Bumper Corner
-
37291003067 BumperBumper
-
40291003071 ConsoleConsole
-
41291003072 Info Gauge BezelInfo Gauge Bezel
-
42291003067 BumperBumper
-
45291003091 LH MirrorLH Mirror
-
46291003090 RH MirrorRH Mirror
-
47291003245 Seat StudSeat Stud
-
48291003277 Deck NoseDeck Nose
-
50291003391 Divider Ass'yDivider Ass'y
-
51291003329 LH Rear Center CarpetLH Rear Center Carpet
-
52291003330 RH Rear Center CarpetRH Rear Center Carpet
-
54291003704 Bumper SupportBumper Support
-
55291003738 Body DeflectorBody Deflector
-
56291003741 Mirror SupportMirror Support
-
57292000933 U-ClampU-Clamp
-
60293050001 Flat WasherFlat Washer
-
63293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
64293150186 Pop Rivet 3/16Pop Rivet 3/16
-
66293250236 GasketGasket
-
68293730006 Dart, BlackDart, Black
-
71293830005 Rubber PlugRubber Plug
-
72207153060 Hex. Flanged Screw M5 X 30. EuropeHex. Flanged Screw M5 X 30. Europe
-
73211200035 Flat Washer. EuropeFlat Washer. Europe
-
74232551200 Elastic Stop Nut 5 mm. EuropeElastic Stop Nut 5 mm. Europe
