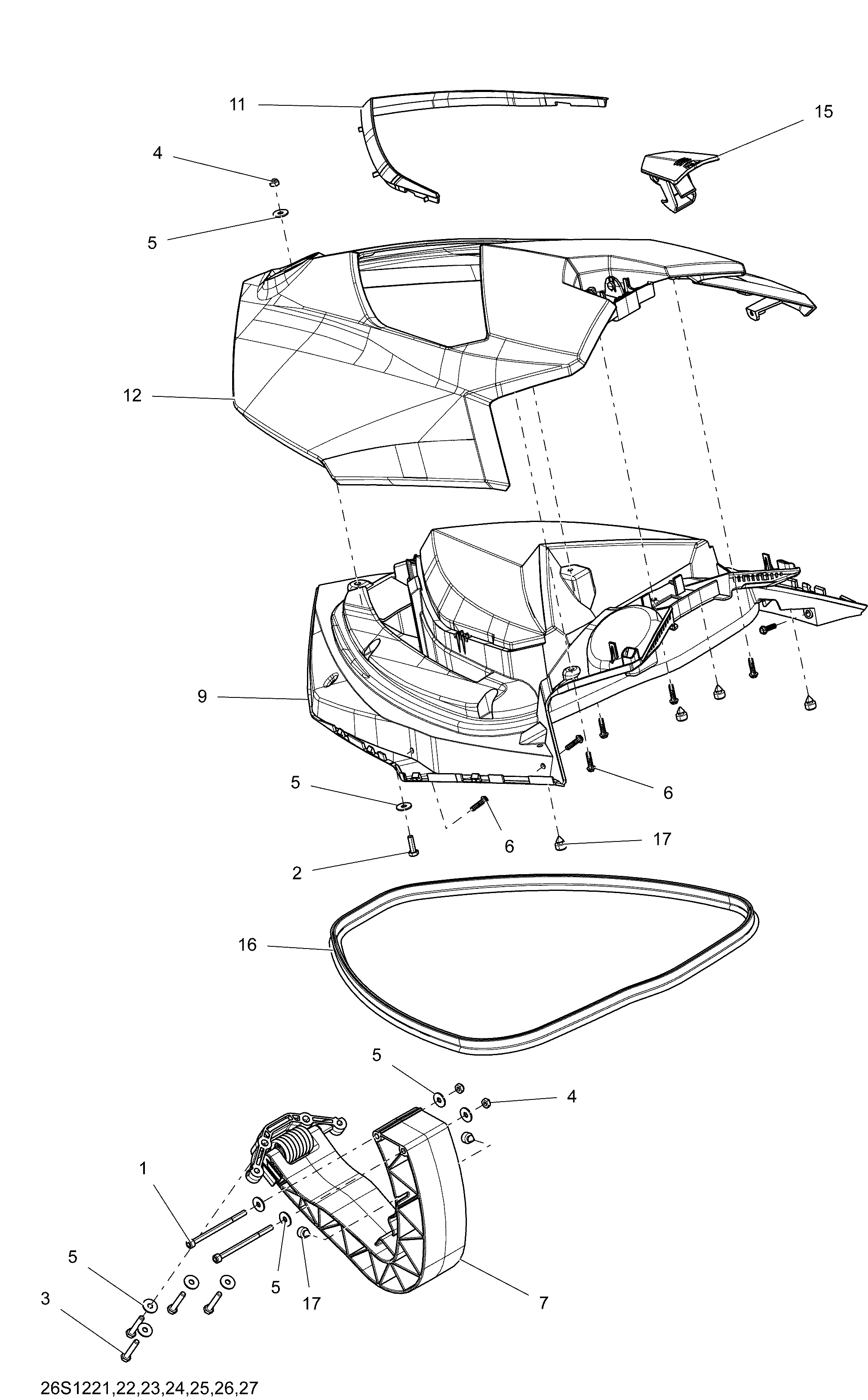

09- Front Cover для BRP GTI SE 155 (30CA, 30CB) - 2012
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20. GTI SE BlackHex. Forming Screw M6 X 20. GTI SE Black
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, Brass. GTI SE BlackElastic Stop Nut M6, Brass. GTI SE Black
-
5234062600 Flat Washer M6, Stainless. GTI SE BlackFlat Washer M6, Stainless. GTI SE Black
-
6241152060 Hex. Flanged Screw K50 X 20. GTI SE BlackHex. Flanged Screw K50 X 20. GTI SE Black
-
7269501944 Hinge Ass'yHinge Ass'y
-
9269501897 Lower Storage Cover. GTI SE BlackLower Storage Cover. GTI SE Black
-
11269501860 Front Moulding, Chrome. GTI SE BlackFront Moulding, Chrome. GTI SE Black
-
12269501933 Storage Cover. GTI SE BlackStorage Cover. GTI SE Black
-
15269700142 Latch Lever. GTI SE BlackLatch Lever. GTI SE Black
-
16293250047 Neoprene Seal. GTI SE BlackNeoprene Seal. GTI SE Black
-
17293830005 Rubber Plug. GTI SE BlackRubber Plug. GTI SE Black
