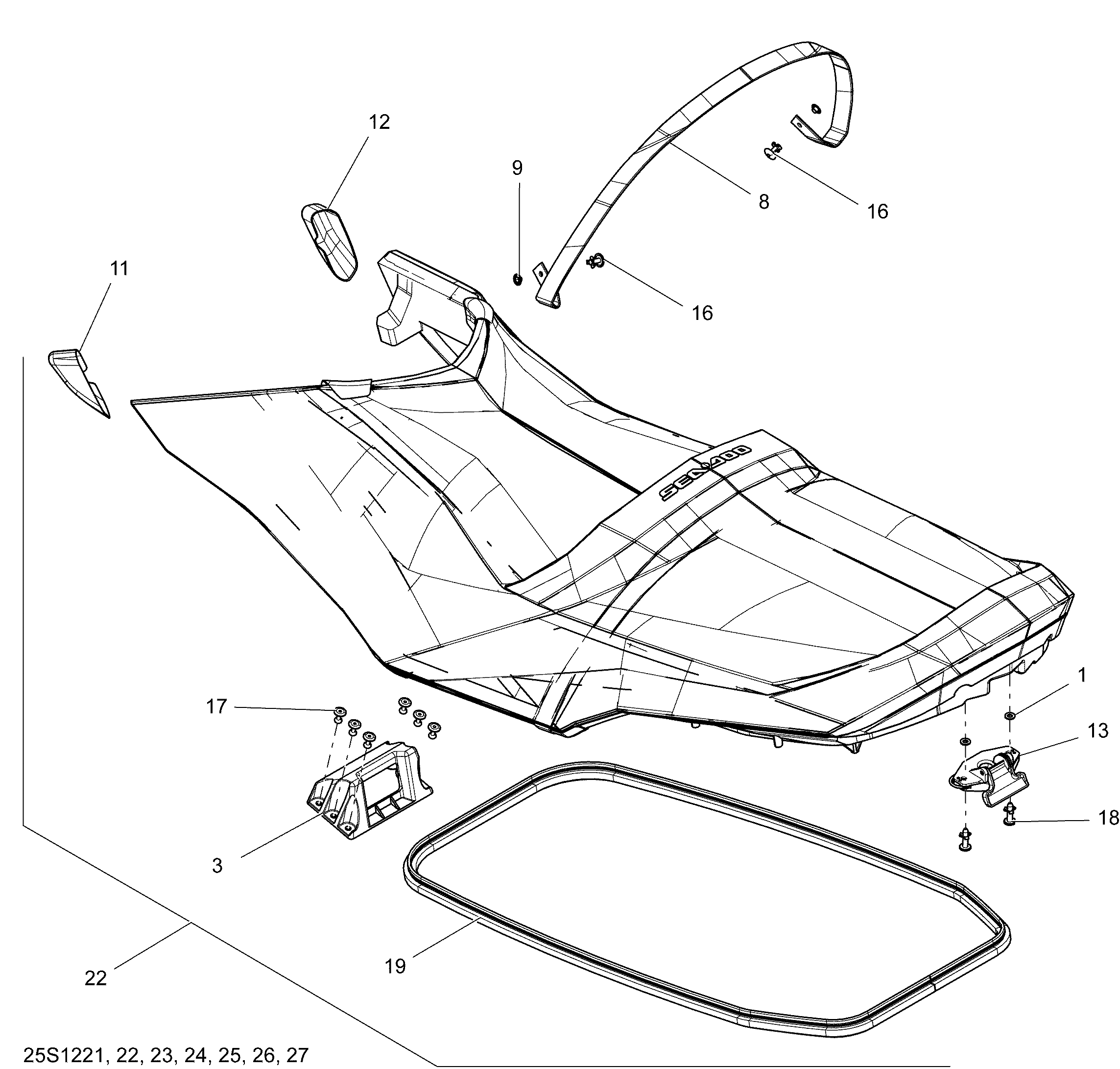

09- Seat для BRP GTI SE 155 (30CA, 30CB) - 2012
-
№АртикулНазвание
-
1234061600 Flat Washer M6, Stainless. GTI SE BlackFlat Washer M6, Stainless. GTI SE Black
-
3269002151 Seat ReceptacleSeat Receptacle
-
8269002090 Seat Strap. GTI SE BlackSeat Strap. GTI SE Black
-
9293720067 Grommet. GTI SE BlackGrommet. GTI SE Black
-
11269001937 LH Seat Protector. GTI SE BlackLH Seat Protector. GTI SE Black
-
12269001994 RH Seat Protector. GTI SE BlackRH Seat Protector. GTI SE Black
-
13269700109 Latch Ass'y. GTI SE BlackLatch Ass'y. GTI SE Black
-
16293150067 Rivet. GTI SE BlackRivet. GTI SE Black
-
17293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150151 Rivet 1/4''. GTI SE BlackRivet 1/4''. GTI SE Black
-
22269002461 Seat Ass'y. GTI SE BlackSeat Ass'y. GTI SE Black
