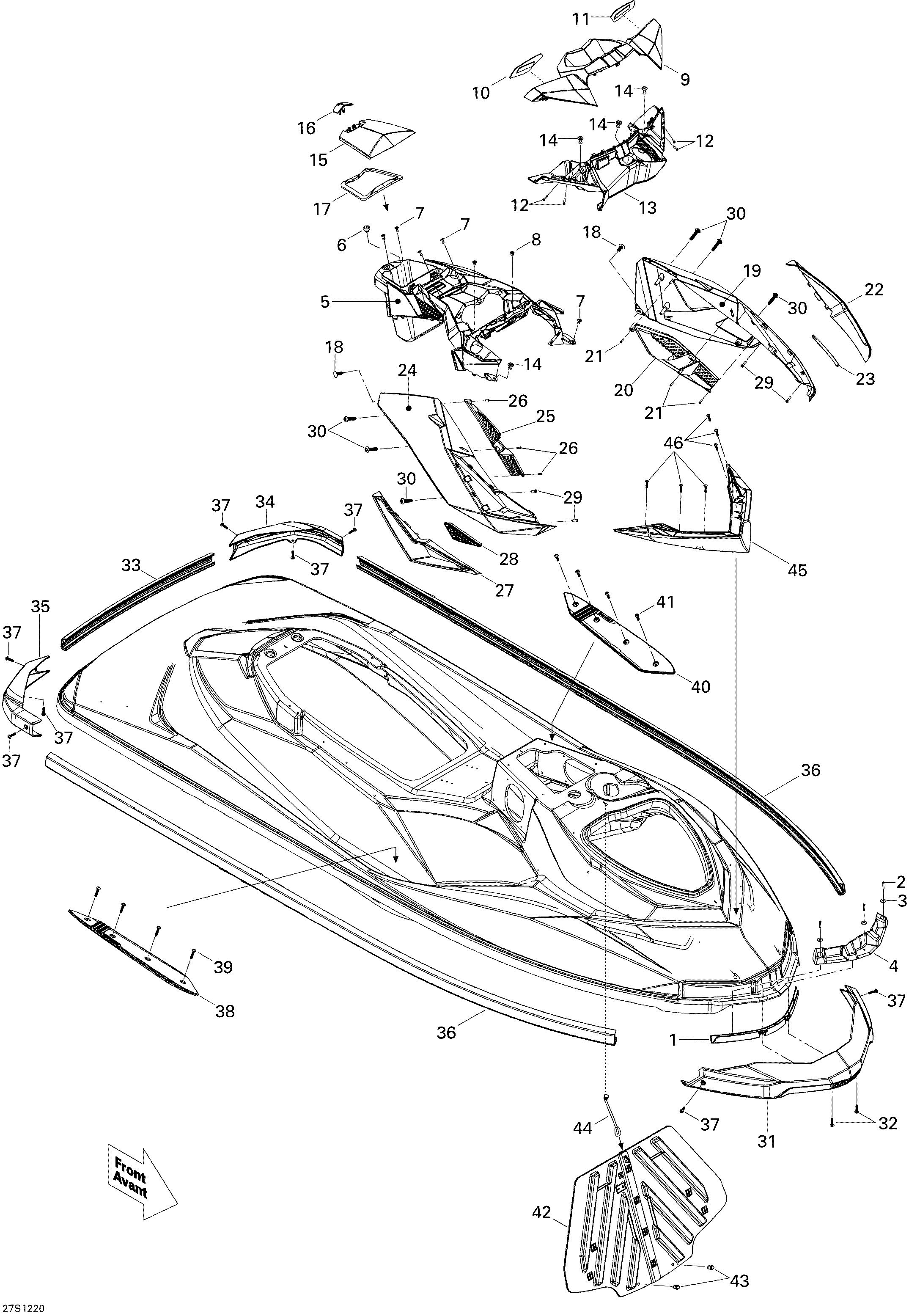

09- Body, Front View для BRP RXP-X 260 & RS - 2012
-
№АртикулНазвание
-
1291003277 Deck NoseDeck Nose
-
2241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
3234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4291003704 Bumper SupportBumper Support
-
5291003332 ConsoleConsole
-
6293830005 Rubber BumperRubber Bumper
-
7293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
8293150186 Pop Rivet 3/16Pop Rivet 3/16
-
9291003072 Info Gauge BezelInfo Gauge Bezel
-
10291003090 RH MirrorRH Mirror
-
11291003091 LH MirrorLH Mirror
-
12250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
13291003741 Mirror SupportMirror Support
-
14293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
15291003331 Glove Box DoorGlove Box Door
-
16264000019 Latch, BlackLatch, Black
-
17293250265 Urethane SealUrethane Seal
-
18293730006 Black DartBlack Dart
-
19291003346 LH Lateral Side CosmeticLH Lateral Side Cosmetic
-
20291003348 LH Side GrillLH Side Grill
-
21250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
22291003341 LH Front CosmeticLH Front Cosmetic
-
23291003343 LH Front GrillLH Front Grill
-
24291003347 RH Lateral CosmeticRH Lateral Cosmetic
-
25291003349 RH Side GrillRH Side Grill
-
26250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
27291003342 RH Front CosmeticRH Front Cosmetic
-
28291003344 RH Front GrillRH Front Grill
-
29211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
30250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
-
31291003064 Front BumperFront Bumper
-
32250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
-
33291003067 BumperBumper
-
34291003066 LH Bumper CornerLH Bumper Corner
-
35291003065 RH Bumper CornerRH Bumper Corner
-
36291003067 BumperBumper
-
37250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
-
38291003637 RH FootrestRH Footrest
-
39250000596 Torx Screw M6.81X30Torx Screw M6.81X30
-
40291003638 LH FootrestLH Footrest
-
41250000596 Torx Screw M6.81X30Torx Screw M6.81X30
-
42291003391 Divider Ass'yDivider Ass'y
-
43293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
44269501743 StrapStrap
-
45291003345 DeflectorDeflector
-
46250000561 Torx Plastite Washer Screw M6.81 X 3Torx Plastite Washer Screw M6.81 X 3
