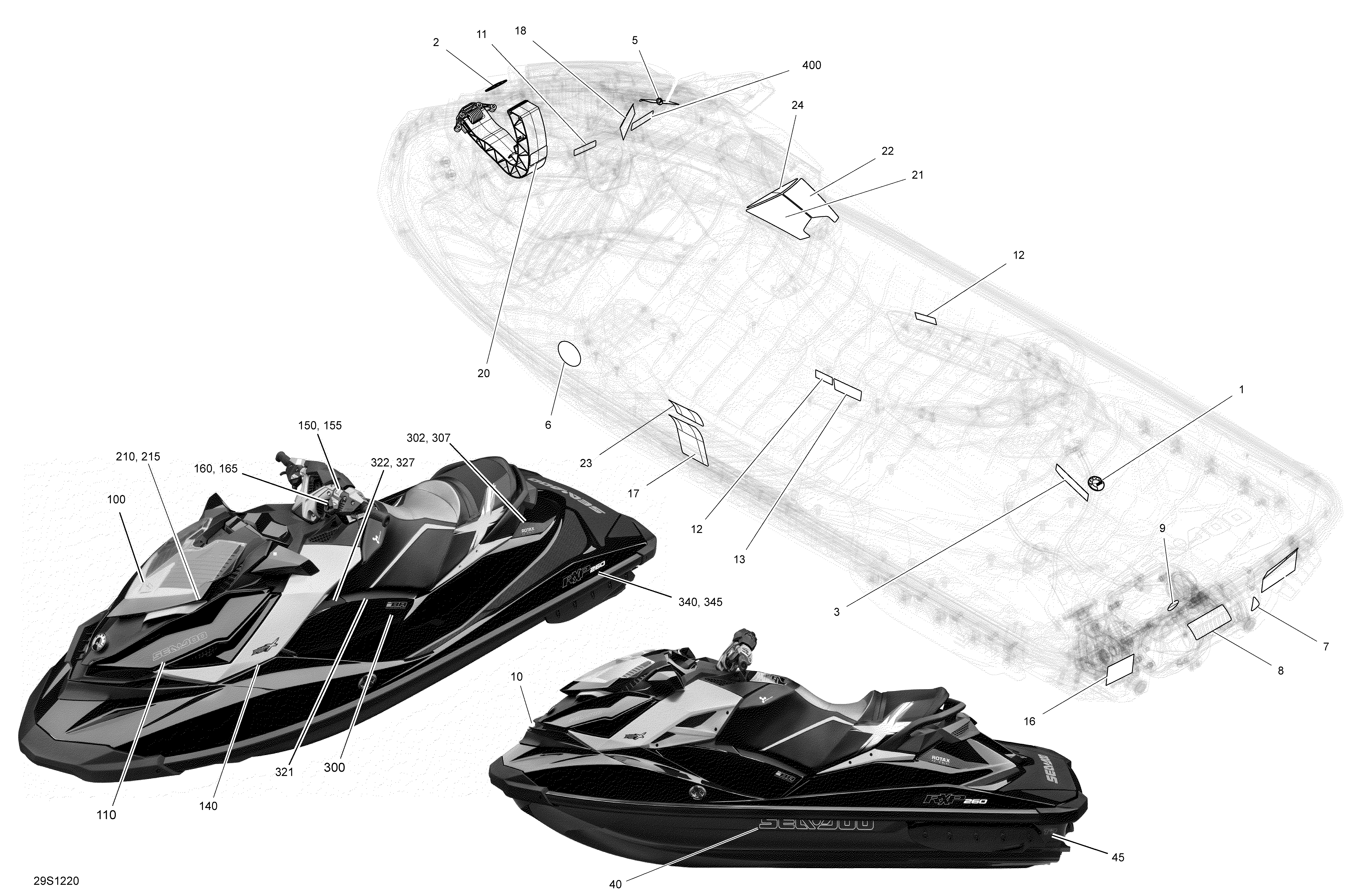

09- Decals для BRP RXP-X 260 & RS - 2012
-
№АртикулНазвание
-
1219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
2219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
3219903510 Decal, ExemptionDecal, Exemption
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6219902679 Decal, Emission ControlDecal, Emission Control
-
7219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
8219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
9219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
10219903959 Frontal DecalFrontal Decal
-
11219903127 Notice Decal, Gasoline-OctaneNotice Decal, Gasoline-Octane
-
12219903132 Caution Decal, SecurityCaution Decal, Security
-
13219903135 Caution Decal, Engine Oil LevelCaution Decal, Engine Oil Level
-
16219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
17219904014 Conformity Label, Europe. EuropeConformity Label, Europe. Europe
-
18219903501 Warning Decal, FuelWarning Decal, Fuel
-
20219903502 Warning Decal, StorageWarning Decal, Storage
-
21219903507 LH Warning Label, EnglishLH Warning Label, English
-
22219903508 RH Warning Label, EnglishRH Warning Label, English
-
23219903554 Comformity Decal, CanadianComformity Decal, Canadian
-
24219904040 Warning Label Sport Model, EnglishWarning Label Sport Model, English
-
40219903512 Hull Decal SEA-DOOHull Decal SEA-DOO
-
45219903646 T3 DecalT3 Decal
-
100219903535 Deflector DecalDeflector Decal
-
110219903520 SEA-DOO DecalSEA-DOO Decal
-
140219903537 Lateral Front DecalLateral Front Decal
-
150219903522 LH DecalLH Decal
-
155219903523 RH DecalRH Decal
-
160219903524 LH Position DecalLH Position Decal
-
165219903525 RH Position DecalRH Position Decal
-
210219903975 LH Masking DecalLH Masking Decal
-
215219903976 RH Masking DecalRH Masking Decal
-
300219903055 Decal, IBRDecal, IBR
-
302219903962 LH Rear DecalLH Rear Decal
-
307219903963 RH Rear DecalRH Rear Decal
-
321219903288 Center DecalCenter Decal
-
322219903416 LH Center DecalLH Center Decal
-
327219903417 RH Center DecalRH Center Decal
-
340219903536 Identification DecalIdentification Decal
-
345219903532 RS DecalRS Decal
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
