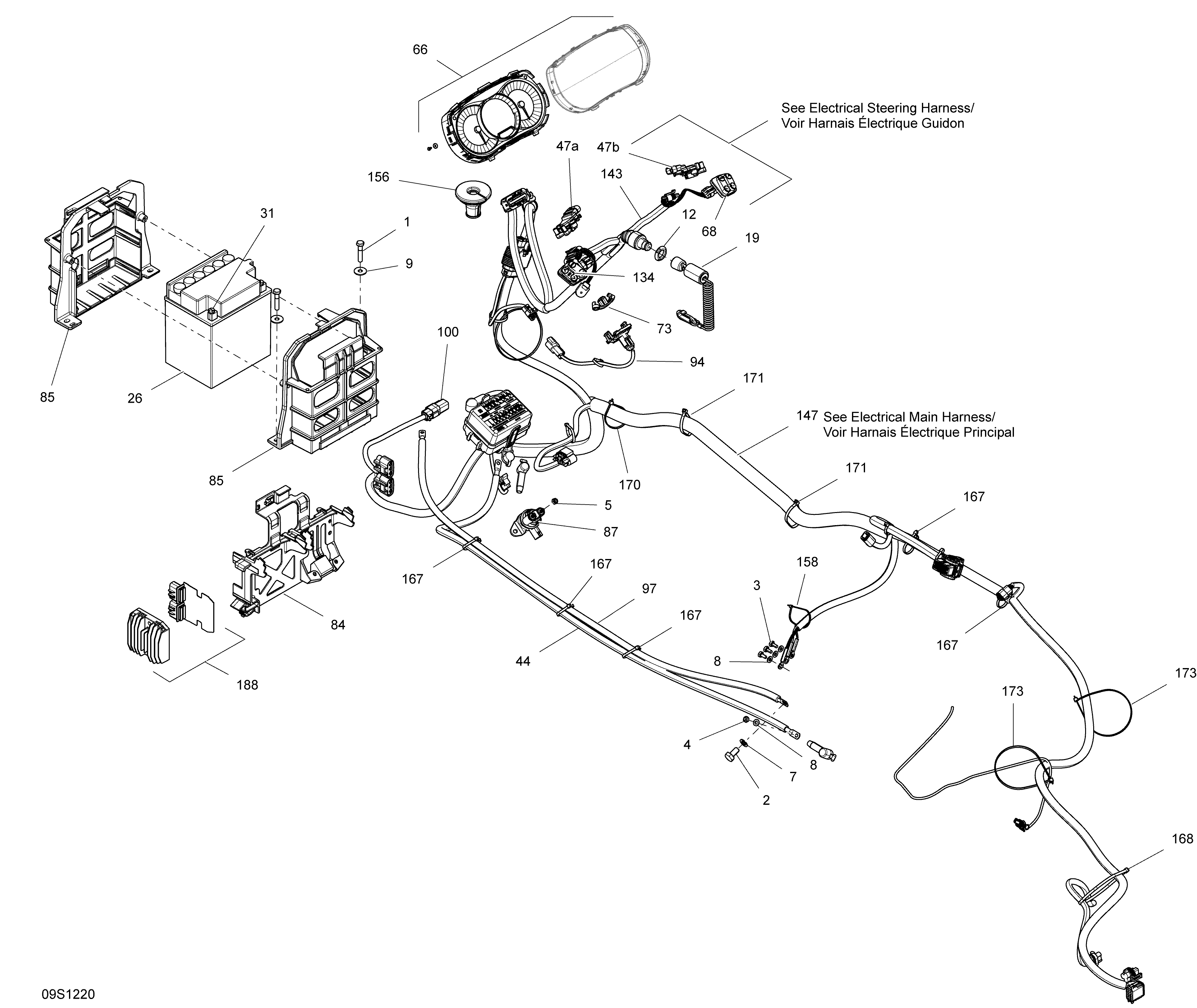

10- Electrical System для BRP RXP-X 260 & RS - 2012
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12278000508 Safety Switch NutSafety Switch Nut
-
19278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
19278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
26278001882 Battery, 30 AmperesBattery, 30 Amperes
-
31250000282 Battery Bolt KitBattery Bolt Kit
-
44278002279 Starter CableStarter Cable
-
66278002716 LCD Gauge XLCD Gauge X
-
68278002602 SwitchSwitch
-
73278002323 O.T.A.S. ActuatorO.T.A.S. Actuator
-
84278002338 Electrical Component SupportElectrical Component Support
-
85278002339 Battery SupportBattery Support
-
87278002347 Starter RelayStarter Relay
-
94278002324 O.T.A.S. SensorO.T.A.S. Sensor
-
97278002501 Ground CableGround Cable
-
100278002704 Diagnostic ConnectorDiagnostic Connector
-
134278002767 SwitchSwitch
-
143278002789 Steering HarnessSteering Harness
-
147278002814 Main HarnessMain Harness
-
156293720092 Cable GrommetCable Grommet
-
158293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
167414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
168293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
170414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
171414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
173293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
188710001103 Voltage RegulatorVoltage Regulator
-
47a278002284 LH Throttle SensorLH Throttle Sensor
-
47b278002283 RH Throttle SensorRH Throttle Sensor
