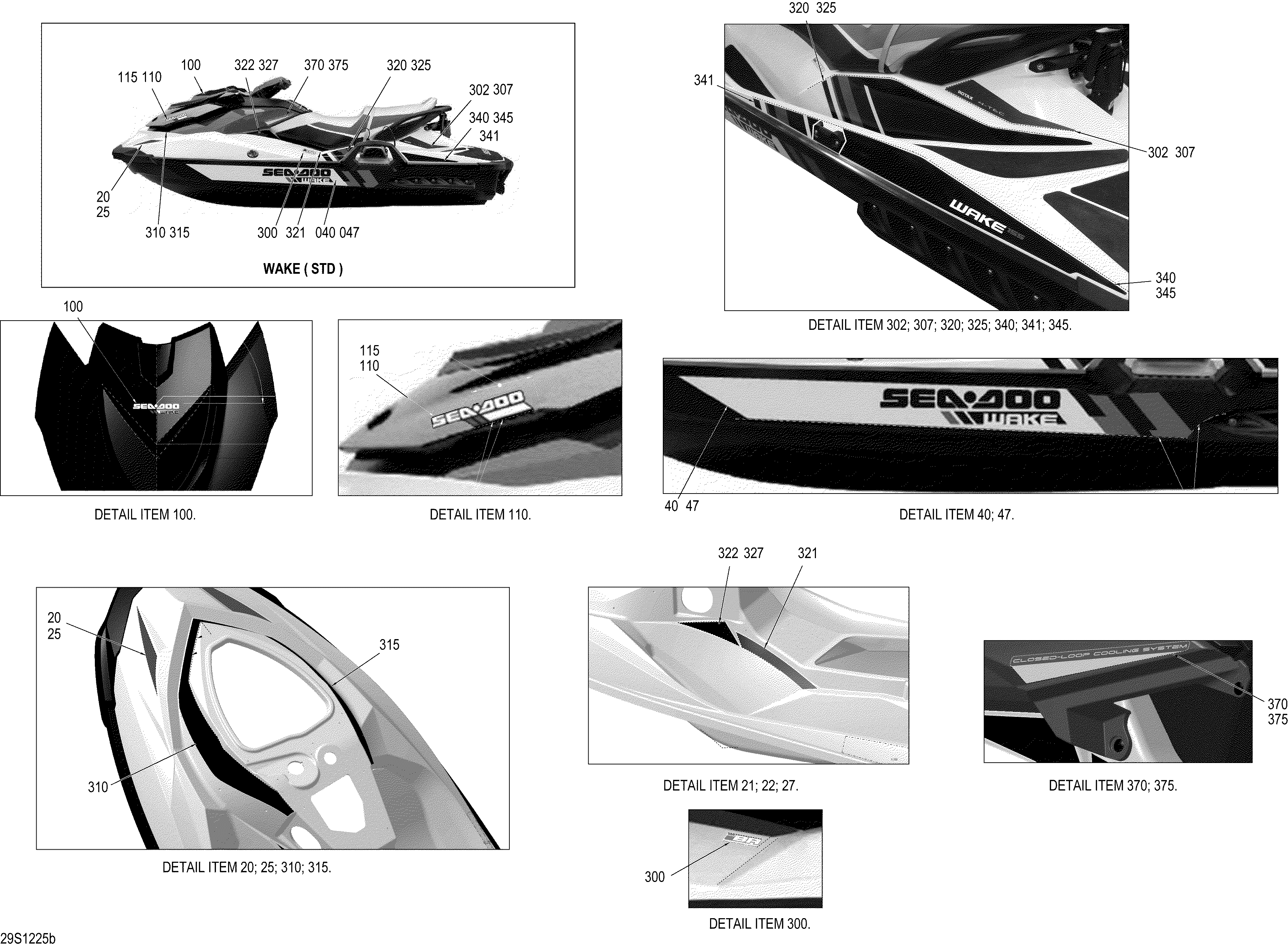

09- Decals для BRP WAKE 155 (35CA, 35CB) - 2012
-
№АртикулНазвание
-
20219903433 LH Front Side Decal. WAKELH Front Side Decal. WAKE
-
25219903434 RH Front Side Decal. WAKERH Front Side Decal. WAKE
-
40219903574 LH Sea-Doo Hull Decal. WAKELH Sea-Doo Hull Decal. WAKE
-
47219903575 RH Sea-Doo Hull Decal. WAKERH Sea-Doo Hull Decal. WAKE
-
100219903576 Decal Deflector. WAKEDecal Deflector. WAKE
-
110219903577 LH Front Sea-Doo Logo. WAKELH Front Sea-Doo Logo. WAKE
-
115219903944 RH Front Sea-Doo Logo. WAKERH Front Sea-Doo Logo. WAKE
-
300219903421 Decal, IBR. WAKEDecal, IBR. WAKE
-
302219903310 LH Rear DecalLH Rear Decal
-
307219903311 RH Rear DecalRH Rear Decal
-
310219903570 LH Front Side Decal. WAKELH Front Side Decal. WAKE
-
315219903571 RH Front Side Decal. WAKERH Front Side Decal. WAKE
-
320219903578 LH Rear Side Decal. WAKELH Rear Side Decal. WAKE
-
321219903288 Center DecalCenter Decal
-
322219903416 LH Center DecalLH Center Decal
-
325219903579 RH Rear Side Decal. WAKERH Rear Side Decal. WAKE
-
327219903417 RH Center DecalRH Center Decal
-
340219903580 LH Rear Side Decal. WAKELH Rear Side Decal. WAKE
-
341219903978 LH Rear Side Decal. WAKELH Rear Side Decal. WAKE
-
345219903581 RH Rear Side Decal. WAKERH Rear Side Decal. WAKE
-
370219903980 LH Center Decal. WAKELH Center Decal. WAKE
-
375219903981 RH Center Decal. WAKERH Center Decal. WAKE
