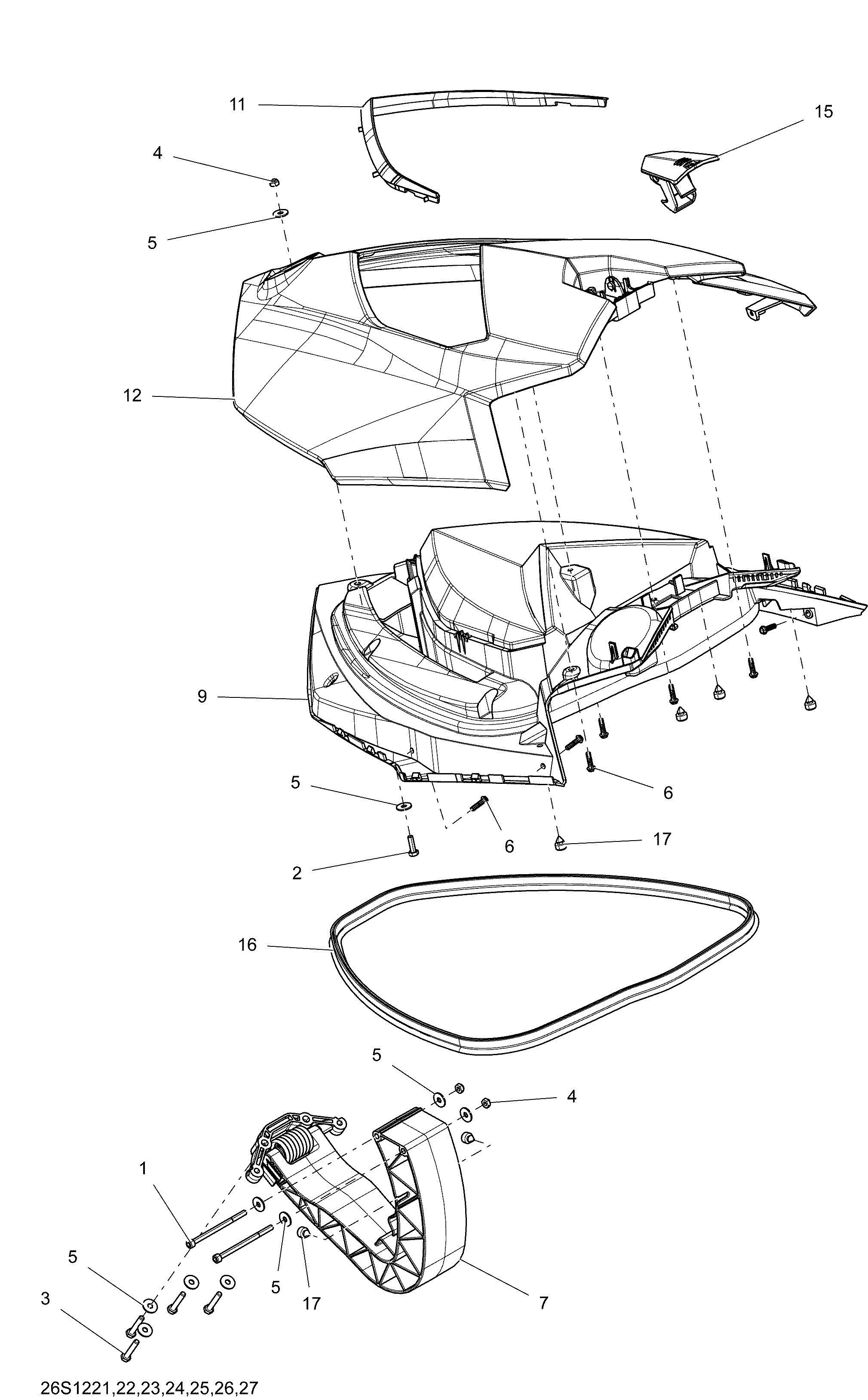

09- Front Cover для BRP WAKE 155 (35CA, 35CB) - 2012
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20. WAKEHex. Forming Screw M6 X 20. WAKE
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, Brass. WAKEElastic Stop Nut M6, Brass. WAKE
-
5234062600 Flat Washer M6, Stainless. WAKEFlat Washer M6, Stainless. WAKE
-
6241152060 Hex. Flanged Screw K50 X 20. WAKEHex. Flanged Screw K50 X 20. WAKE
-
7269501944 Hinge Ass'yHinge Ass'y
-
9269501897 Lower Storage Cover. WAKELower Storage Cover. WAKE
-
11269501859 Front Moulding. WAKEFront Moulding. WAKE
-
12269501933 Storage Cover. WAKEStorage Cover. WAKE
-
15269700142 Latch Lever. WAKELatch Lever. WAKE
-
16293250047 Neoprene Seal. WAKENeoprene Seal. WAKE
-
17293830005 Rubber Plug. WAKERubber Plug. WAKE
