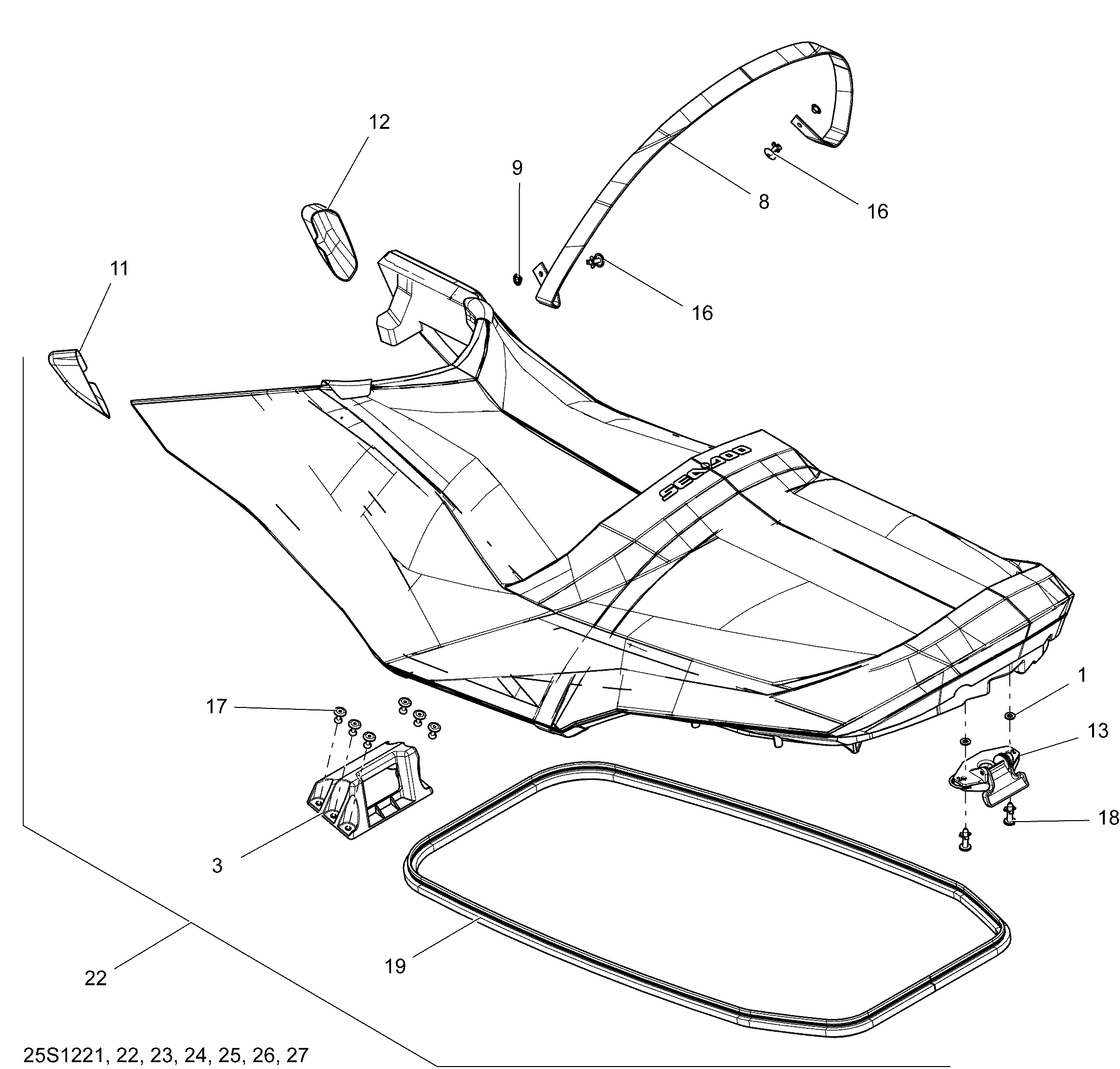

09- Seat для BRP WAKE 155 (35CA, 35CB) - 2012
-
№АртикулНазвание
-
1234061600 Flat Washer M6, Stainless. WAKE STD RedFlat Washer M6, Stainless. WAKE STD Red
-
3269002151 Seat ReceptacleSeat Receptacle
-
8269002096 Seat Strap. WAKE STD RedSeat Strap. WAKE STD Red
-
9293720067 Grommet. WAKE STD RedGrommet. WAKE STD Red
-
11269002098 LH Seat Protector. WAKE STD RedLH Seat Protector. WAKE STD Red
-
12269002097 RH Seat Protector. WAKE STD RedRH Seat Protector. WAKE STD Red
-
13269700109 Latch Ass'y. WAKE STD RedLatch Ass'y. WAKE STD Red
-
16293150067 Rivet. WAKE STD RedRivet. WAKE STD Red
-
17293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150151 Rivet 1/4''. WAKE STD RedRivet 1/4''. WAKE STD Red
-
22269002463 Seat Ass'y. WAKE STD RedSeat Ass'y. WAKE STD Red
