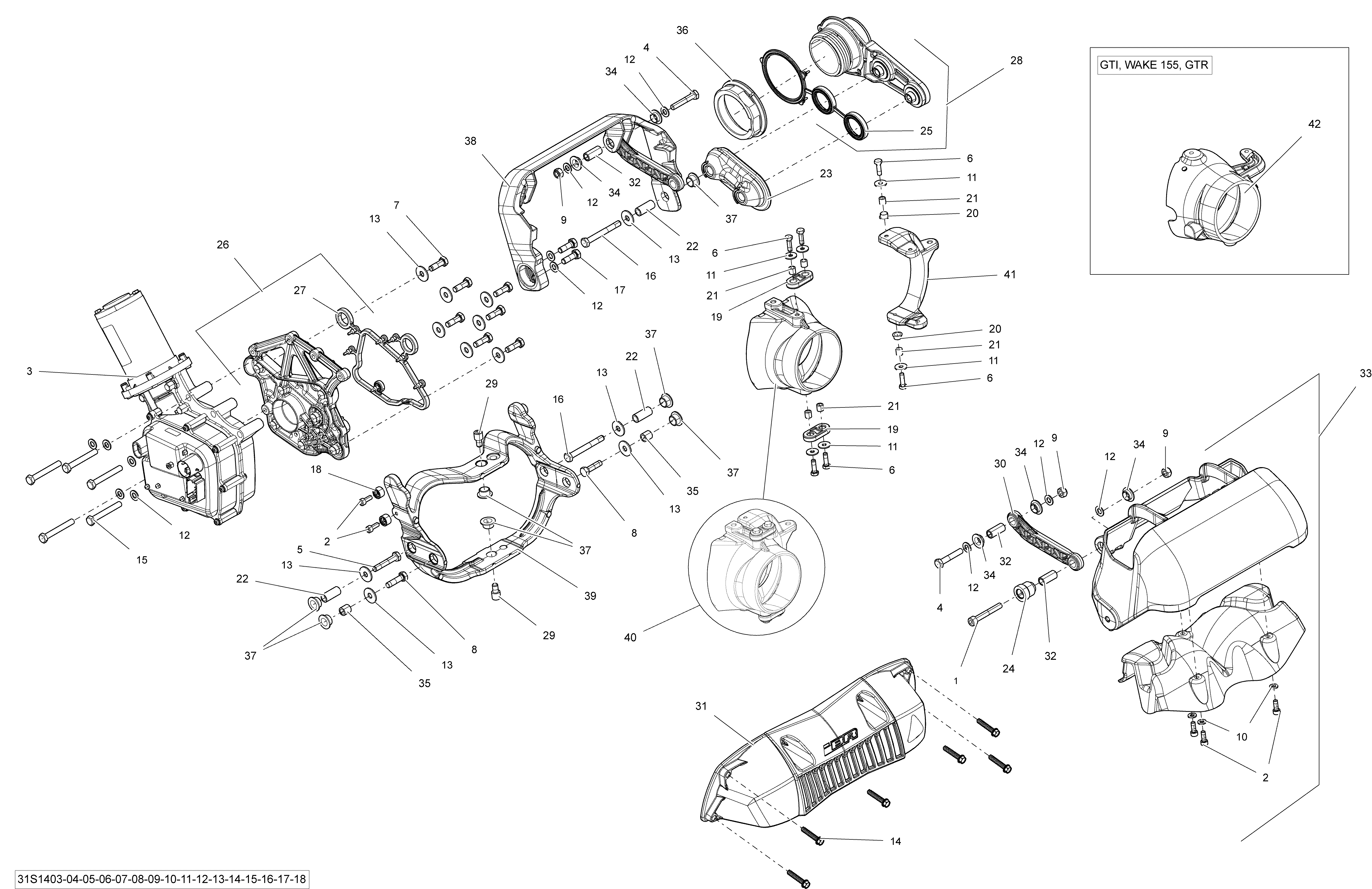

05- Reverse _31S1415 для BRP GTI LTD 155 - 2014
-
№АртикулНазвание
-
1205085560 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
2205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
3278003122 IBR ActuatorIBR Actuator
-
4207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5207284560 Hex. Screw S. Grip M8 X 45Hex. Screw S. Grip M8 X 45
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
15250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
16250000506 Hex. Screw M8 X 70, Scotch GripHex. Screw M8 X 70, Scotch Grip
-
17250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
18268000045 Friction SleeveFriction Sleeve
-
22268000063 SpacerSpacer
-
23268000085 RH Support PlateRH Support Plate
-
24268000099 BushingBushing
-
25268000105 RH Formed SealRH Formed Seal
-
26268000111 LH Fixing Plate Ass'yLH Fixing Plate Ass'y
-
27268000129 LH Formed SealLH Formed Seal
-
28268000130 RH Fixing Plate Ass'yRH Fixing Plate Ass'y
-
29268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
30268000145 Linkage ArmLinkage Arm
-
31268000162 GuardGuard
-
32268000182 SpacerSpacer
-
33268000183 Reverse Gate Ass'yReverse Gate Ass'y
-
34271000321 Venturi BushingVenturi Bushing
-
35271001039 SpacerSpacer
-
36274000224 Nut 72 mmNut 72 mm
-
37293900007 Venturi BushingVenturi Bushing
-
38268000152 ''U'' Arm, Black''U'' Arm, Black
-
39268000155 Trimming Ring, BlackTrimming Ring, Black
-
42267000732 Steer. Nozzle, BlackSteer. Nozzle, Black
