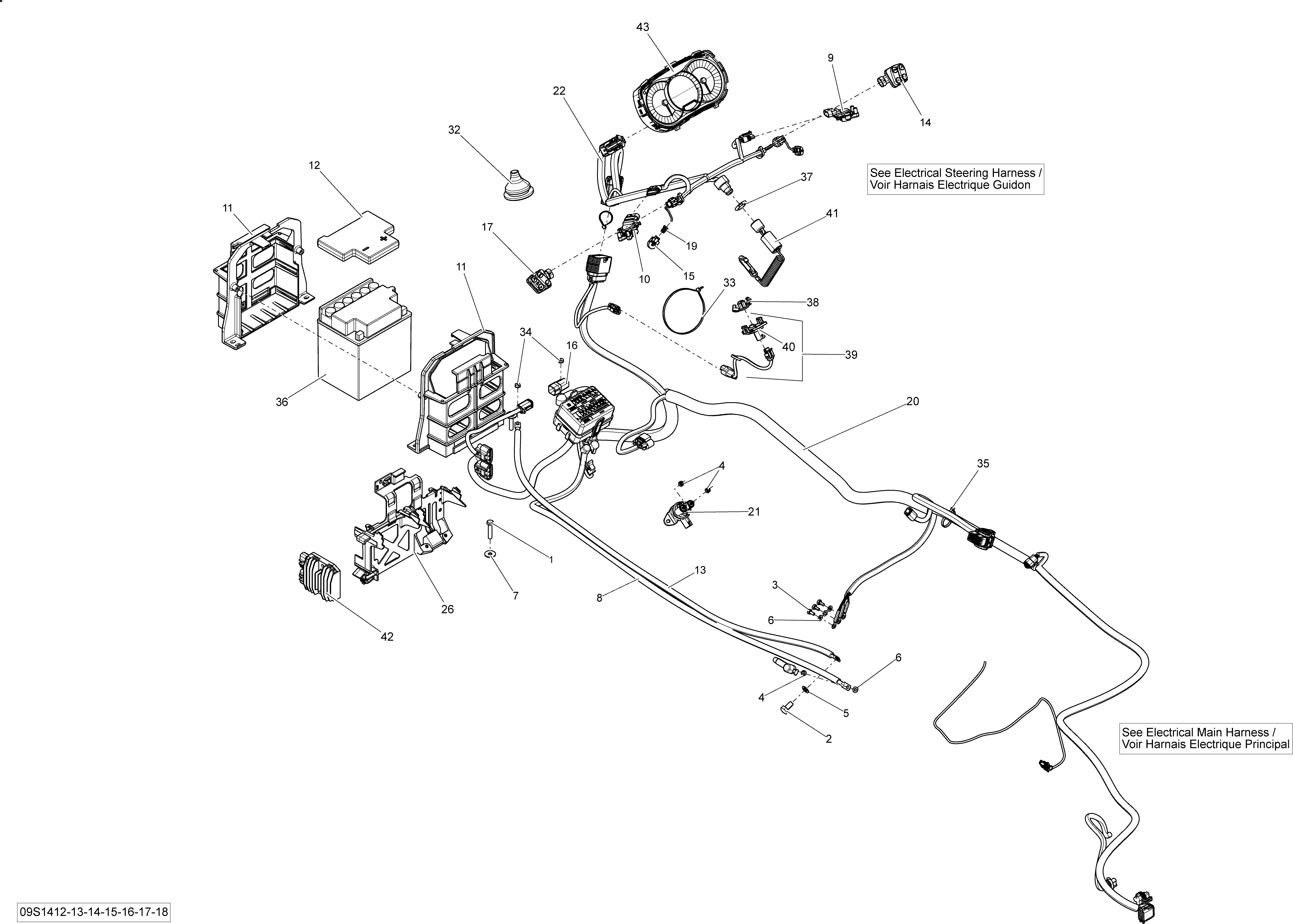

10- Electrical System _09S1415 для BRP GTI LTD 155 - 2014
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8278002279 Starter CableStarter Cable
-
9278002283 RH Throttle SensorRH Throttle Sensor
-
10278002284 LH Throttle SensorLH Throttle Sensor
-
11278002339 Battery SupportBattery Support
-
13278002501 Ground CableGround Cable
-
14278002602 SwitchSwitch
-
15278002676 Switch Start / StopSwitch Start / Stop
-
16278002704 Diagnostic ConnectorDiagnostic Connector
-
17278002767 SwitchSwitch
-
19278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
20278002943 Wiring HarnessWiring Harness
-
21278003012 Starter RelayStarter Relay
-
22278003079 Wiring Harness Ass'y. Includes 15 and 32Wiring Harness Ass'y. Includes 15 and 32
-
26278003048 SupportSupport
-
32293720103 Cable GrommetCable Grommet
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34295500849 Battery Fastener KitBattery Fastener Kit
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36278001882 Battery, 30 Amperes. Includes 34Battery, 30 Amperes. Includes 34
-
37278002963 Safety NutSafety Nut
-
38278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
39278003009 O.T.A.S. Sensor Ass'y. Includes 40O.T.A.S. Sensor Ass'y. Includes 40
-
40278003008 O.T.A.S. SensorO.T.A.S. Sensor
-
41278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
41278003010 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
42710001103 Voltage RegulatorVoltage Regulator
-
43278003105 Cluster LCDCluster LCD
