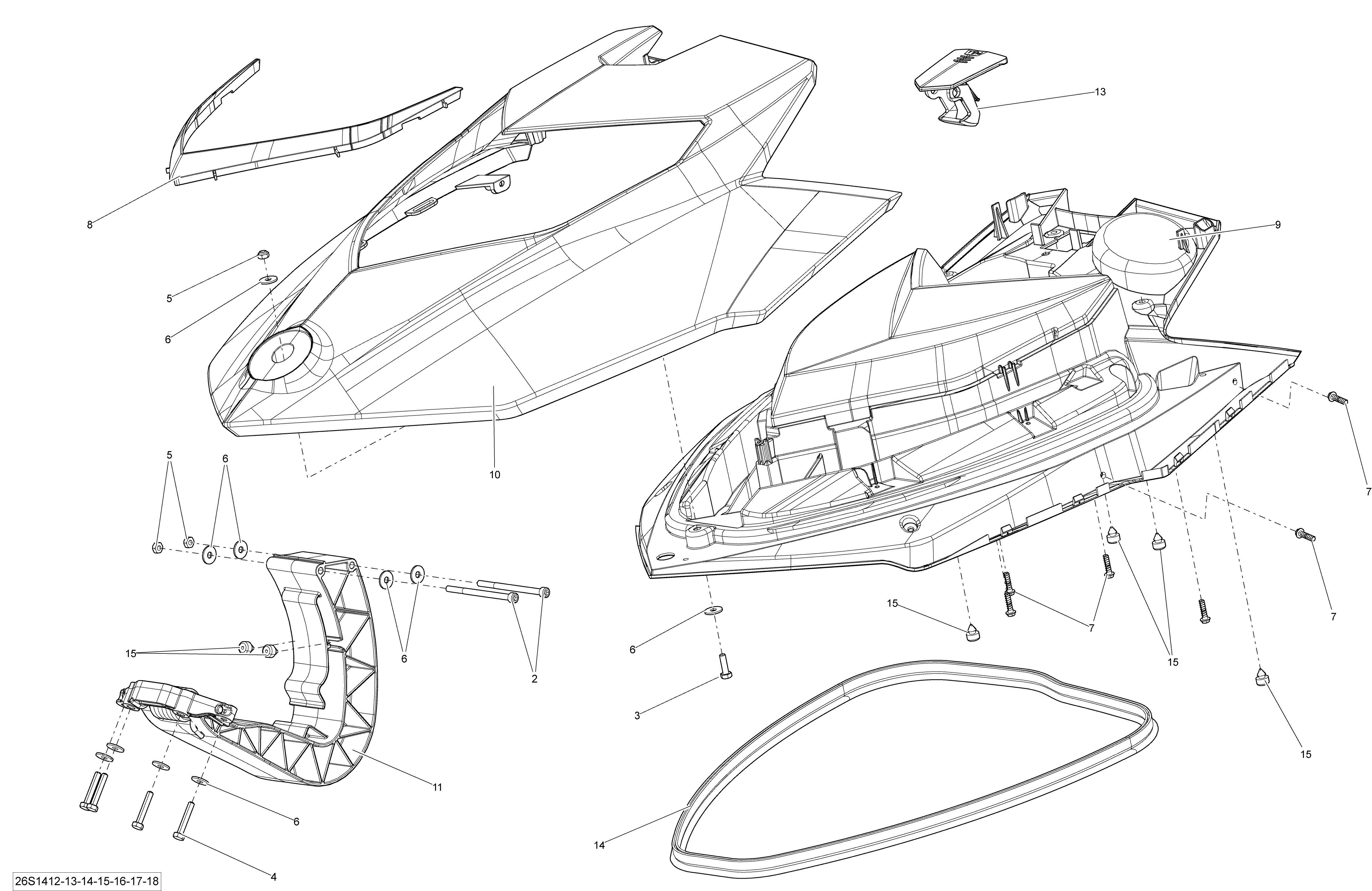

09- Front Cover _26S1415 для BRP GTI LTD 155 - 2014
-
№АртикулНазвание
-
2205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
3207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
8269501860 Front Moulding, ChromeFront Moulding, Chrome
-
9269501897 Lower Storage CoverLower Storage Cover
-
10269501953 Storage CoverStorage Cover
-
11269501944 Hinge Ass'yHinge Ass'y
-
13269700142 Latch LeverLatch Lever
-
14293250047 Neoprene SealNeoprene Seal
-
15293830005 Rubber BumperRubber Bumper
