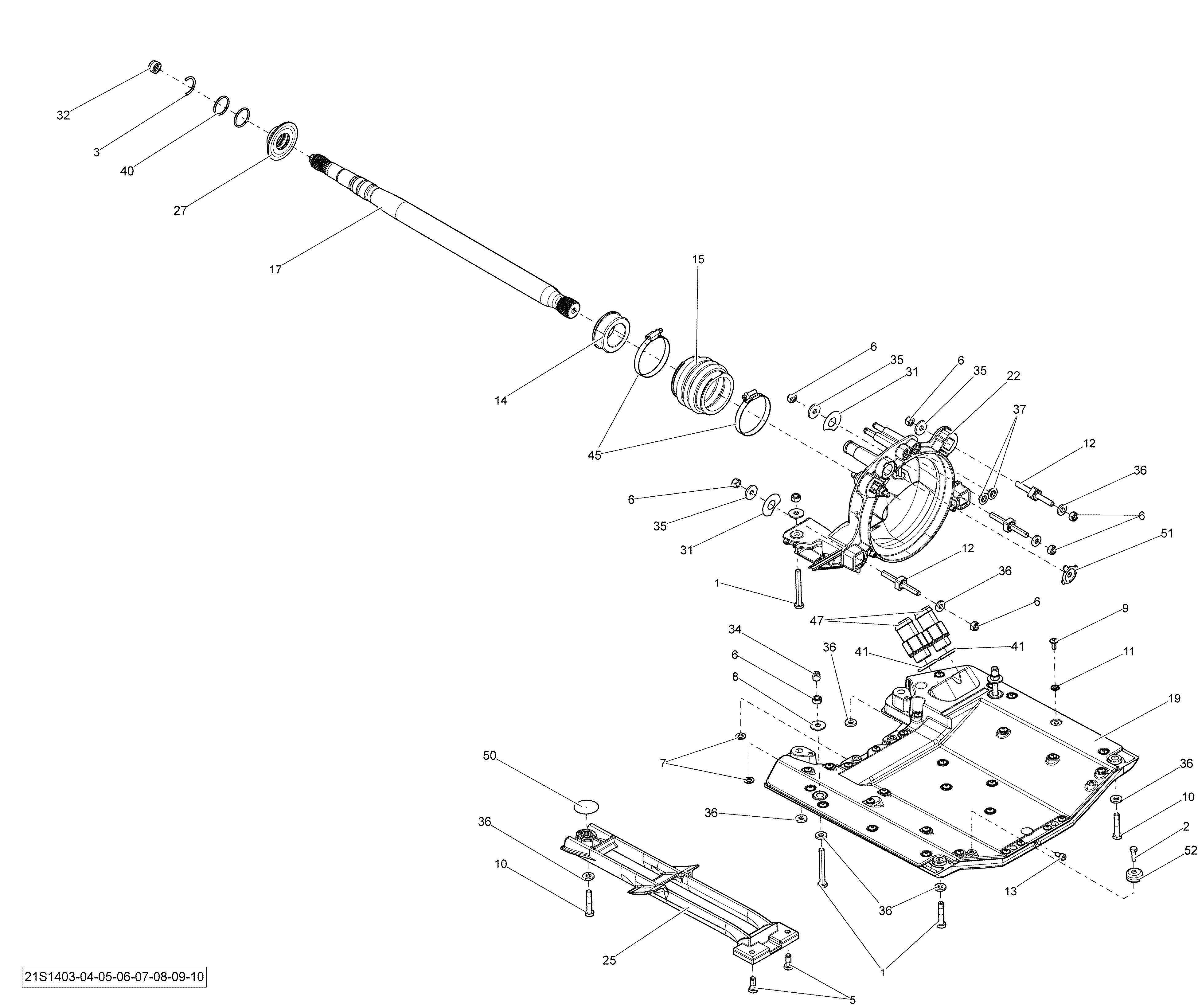

05- Propulsion _21S1404 для BRP GTX S 155 - 2014
-
№АртикулНазвание
-
1207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3271001577 C-ClipC-Clip
-
5207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
10250000230 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
11250200114 Sealing WasherSealing Washer
-
12250300046 Square StudSquare Stud
-
13250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
14271001420 Carbon RingCarbon Ring
-
15271001422 BellowBellow
-
17271001719 Drive ShaftDrive Shaft
-
19271001855 Riding Plate Ass'yRiding Plate Ass'y
-
22271001775 Pump SupportPump Support
-
25271001691 Pump GratePump Grate
-
27271001892 Support RingSupport Ring
-
31272000053 Shim, 0.3 mmShim, 0.3 mm
-
32272000173 Drive Shaft PlugDrive Shaft Plug
-
34415080200 Hose, PolyurethaneHose, Polyurethane
-
35279000164 Flat WasherFlat Washer
-
36293050001 Flat WasherFlat Washer
-
37293250084 Watertight SealWatertight Seal
-
40293300107 O-RingO-Ring
-
41293300121 O-RingO-Ring
-
45293650079 Norma ClampNorma Clamp
-
47293710124 Strait FittingStrait Fitting
-
50293830047 Protector DiskProtector Disk
-
51271001903 ReducerReducer
-
52271001813 Anode ZincAnode Zinc
