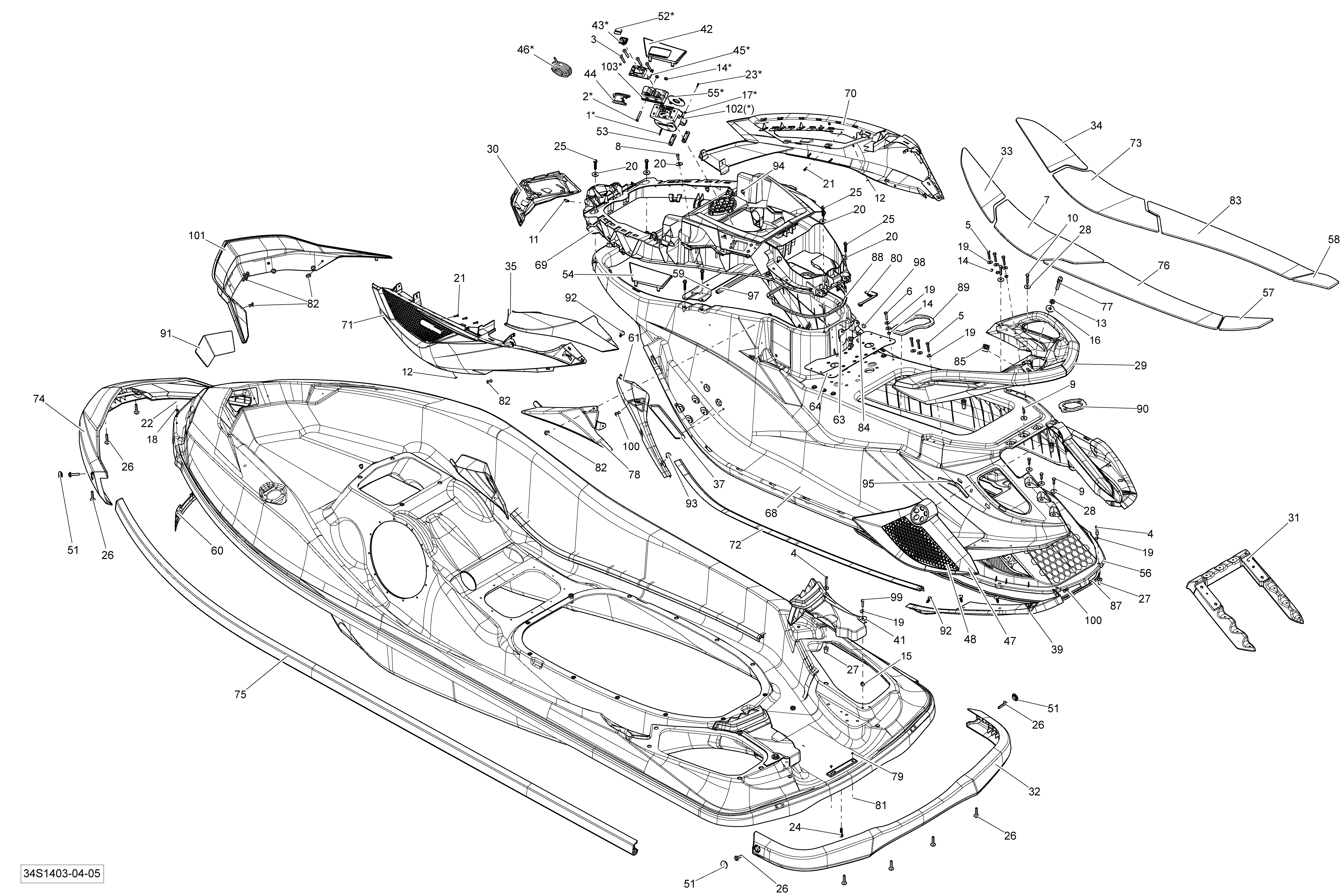

09- Body _34S1404 для BRP GTX S 155 - 2014
-
№АртикулНазвание
-
4205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
5207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
6207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7291003463 LH Center Front CarpetLH Center Front Carpet
-
8207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
9207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
10207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
11211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
13232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
16234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
18234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
19234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
22241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
25243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
26250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
27250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
28250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
29291004621 Black Rear HandleBlack Rear Handle
-
30269501797 Front GridFront Grid
-
31279000214 Rear Pivot Ass'yRear Pivot Ass'y
-
32291002592 Rear BumberRear Bumber
-
33291002607 LH Front CarpetLH Front Carpet
-
34291002608 RH Front CarpetRH Front Carpet
-
35291003942 LH Upper Body Cap CoverLH Upper Body Cap Cover
-
35291003943 RH Upper Body Cap CoverRH Upper Body Cap Cover
-
37291002694 LH Footrest CoverLH Footrest Cover
-
37291002695 RH Footrest CoverRH Footrest Cover
-
39291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
39291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
41291002658 LH Rear GrillLH Rear Grill
-
41291002698 RH Rear GrillRH Rear Grill
-
47291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
47291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
48291002740 LH Rear Side GrilleLH Rear Side Grille
-
48291002742 RH Rear Side GrilleRH Rear Side Grille
-
51291002744 Bumber CapBumber Cap
-
54291002756 Front Rewinder CapFront Rewinder Cap
-
56291002763 Deck Extension Ass'yDeck Extension Ass'y
-
57291002775 LH Rear CarpetLH Rear Carpet
-
58291002776 RH Rear CarpetRH Rear Carpet
-
59291002778 Module StifnerModule Stifner
-
60291002818 Deck NoseDeck Nose
-
61291002837 LH Front Scraper JointLH Front Scraper Joint
-
61291002838 RH Front Scraper JointRH Front Scraper Joint
-
63291002865 Seat PivotSeat Pivot
-
64291003416 Upper ReinforcementUpper Reinforcement
-
66291003306 Central ReinforcementCentral Reinforcement
-
68291003462 Upper Body Ass'yUpper Body Ass'y
-
69291003680 Front ModuleFront Module
-
70291003947 FR RH Moulding Ass'yFR RH Moulding Ass'y
-
71291003946 LH Front Moulding Ass'yLH Front Moulding Ass'y
-
72291003818 Mid JointMid Joint
-
73291003464 RH Center Front CarpetRH Center Front Carpet
-
74291003836 Front BumperFront Bumper
-
75291003872 Lateral BumperLateral Bumper
-
76291003465 LH Center Rear CarpetLH Center Rear Carpet
-
77291003878 Seat StudSeat Stud
-
78291003987 RH Seat Pad, BlackRH Seat Pad, Black
-
78291003988 LH Seat Pad, BlackLH Seat Pad, Black
-
79293000014 Black Snap CapBlack Snap Cap
-
80293000112 Double CapDouble Cap
-
81293150016 Rivet 1/8''Rivet 1/8''
-
82293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
83291003466 RH Center Rear CarpetRH Center Rear Carpet
-
84293150186 Pop Rivet 3/16Pop Rivet 3/16
-
85271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
87293250185 Lip SealLip Seal
-
88293250200 Neoprene SealNeoprene Seal
-
89293250205 Lip SealLip Seal
-
90293250209 Lip SealLip Seal
-
91293250231 GasketGasket
-
92293730006 Black DartBlack Dart
-
93293730010 Black DartBlack Dart
-
94293830005 Rubber BumperRubber Bumper
-
95293250087 Gasket, NeopreneGasket, Neoprene
-
97271000110 Protection TrimProtection Trim
-
98572051500 CapCap
-
99250000681 Hex Screw M6 X 30Hex Screw M6 X 30
-
100293150186 Pop Rivet 3/16Pop Rivet 3/16
-
101291003081 Body DeflectorBody Deflector
