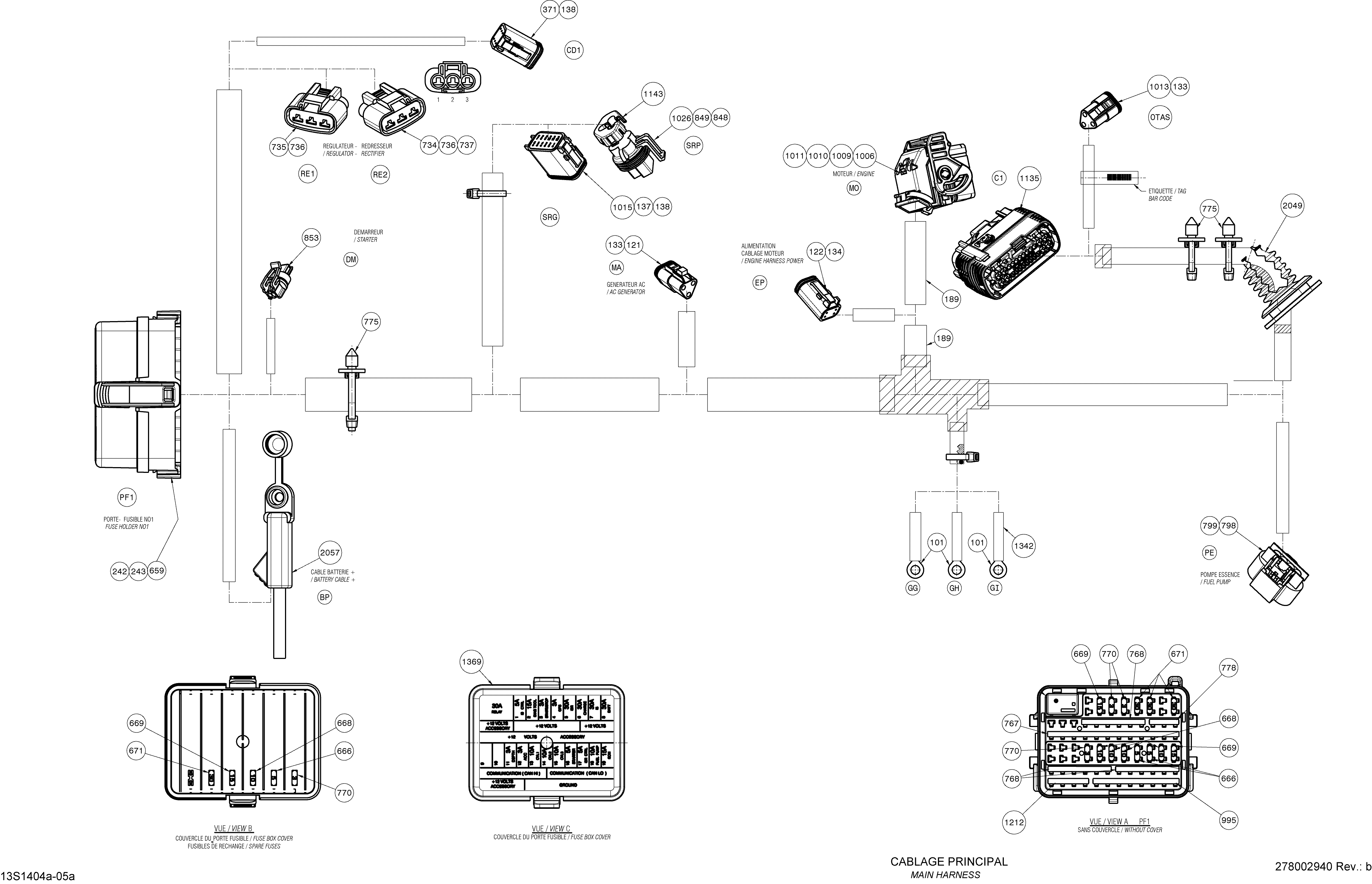

10- Electrical Harness Main Harness_13S1404a для BRP GTX S 155 - 2014
-
№АртикулНазвание
-
1000278002940 Main Wiring Harness. Includes 101 To 2057Main Wiring Harness. Includes 101 To 2057
-
101278001392 Open BarrelOpen Barrel
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
121409207400 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
133409207200 Female LockFemale Lock
-
134278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
137409015700 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
138293000052 Sealing CapSealing Cap
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
659278001065 Wire SealWire Seal
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
690710000890 Female TerminalFemale Terminal
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
735710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
751710000918 Female TerminalFemale Terminal
-
757278001665 Female TerminalFemale Terminal
-
767278002165 Bus BarBus Bar
-
768278002165 Bus BarBus Bar
-
770710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
775293730040 Mount DartMount Dart
-
778278002165 Bus BarBus Bar
-
798278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
799278002186 Wire SealWire Seal
-
800278002187 Female TerminalFemale Terminal
-
848710001158 PlugPlug
-
849710001159 Wire SealWire Seal
-
850710001160 Female TerminalFemale Terminal
-
853710001163 Wire SealWire Seal
-
854710001164 Female TerminalFemale Terminal
-
995278002165 Bus BarBus Bar
-
1006710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
1007710001589 Female TerminalFemale Terminal
-
1008710001590 Female TerminalFemale Terminal
-
1009710001591 CoverCover
-
1010710001592 PlugPlug
-
1011710001593 PlugPlug
-
1013278002375 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1015278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
1026278002388 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1032710001727 Female TerminalFemale Terminal
-
1135278002451 HousingHousing
-
1137278002453 Female TerminalFemale Terminal
-
1139278002455 Female TerminalFemale Terminal
-
1143278002459 LockLock
-
1204278002578 TerminalTerminal
-
1212278002596 Junction Bar (4 Pins)Junction Bar (4 Pins)
-
1230278002642 Female TerminalFemale Terminal
-
1342515177246 Female TerminalFemale Terminal
-
1369278002823 Fuse CoverFuse Cover
-
2049293720083 GrommetGrommet
-
2057278002815 Battery CableBattery Cable
