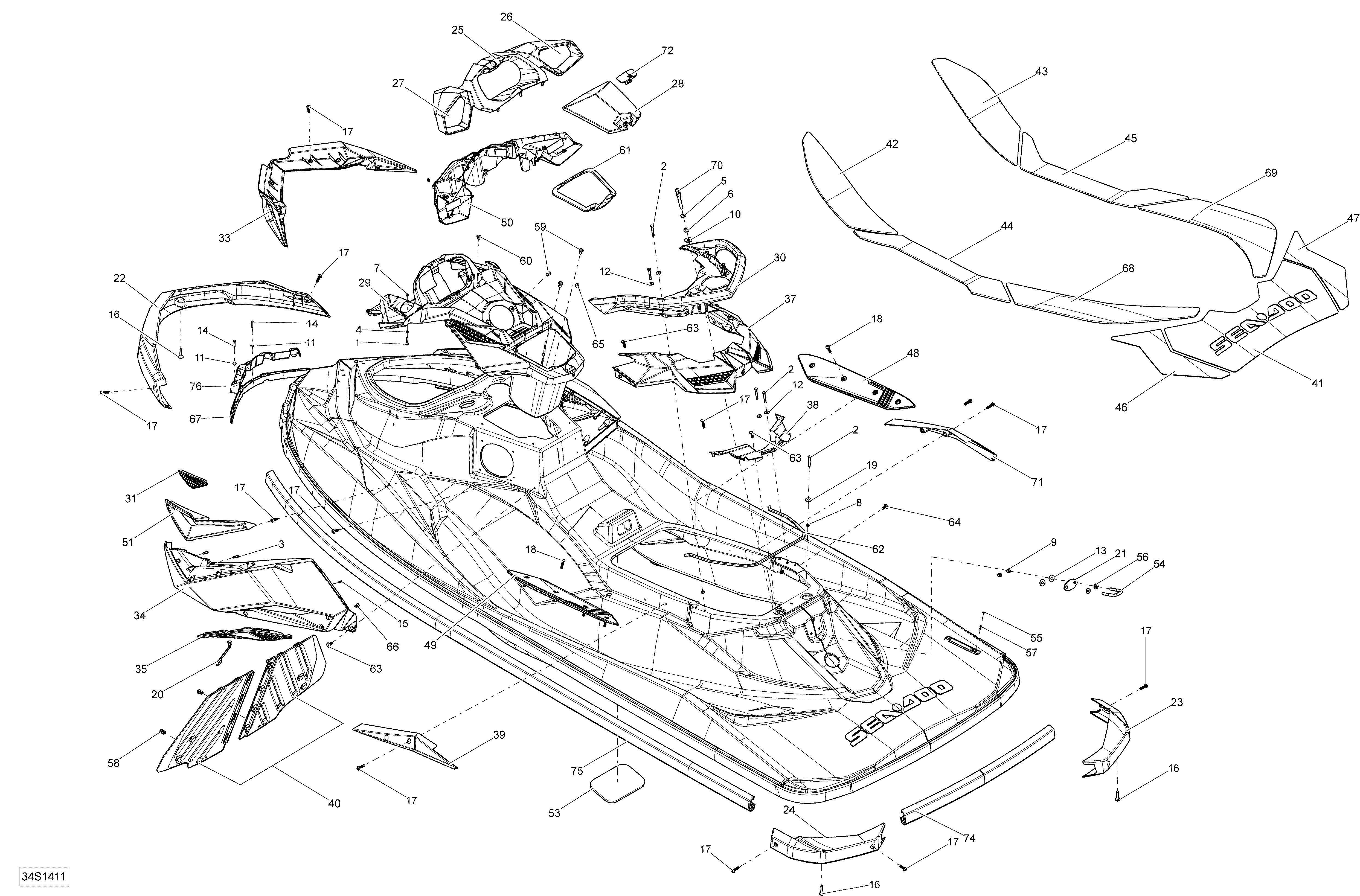

09- Body _34S1411 для BRP RXP-X 260 & RS - 2014
-
№АртикулНазвание
-
1207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
2207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4211200035 Flat WasherFlat Washer
-
5232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
6232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
7232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
15250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
16250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
17250000626 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
18250000627 Screw Plastite Torx M6 81 X 3Screw Plastite Torx M6 81 X 3
-
19250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
20269501743 StrapStrap
-
21291001386 Finition Plate, BlackFinition Plate, Black
-
22291003064 Front BumperFront Bumper
-
23291003065 RH Bumper CornerRH Bumper Corner
-
24291003066 LH Bumper CornerLH Bumper Corner
-
25291003072 Info Gauge BezelInfo Gauge Bezel
-
26291003090 RH MirrorRH Mirror
-
27291003091 LH MirrorLH Mirror
-
28291003331 Glove Box DoorGlove Box Door
-
29291003332 ConsoleConsole
-
30291003338 Rear Grab HandleRear Grab Handle
-
31291003343 LH Front GrillLH Front Grill
-
32291003344 RH Front GrillRH Front Grill
-
33291003345 DeflectorDeflector
-
34291003936 Red LH Side CosmeticRed LH Side Cosmetic
-
35291003348 LH Side GrillLH Side Grill
-
36291003349 RH Side GrillRH Side Grill
-
37291003350 Rear CosmeticRear Cosmetic
-
38291003372 Vent CoverVent Cover
-
39291003932 Red LH Side Hand Grip CosmeticRed LH Side Hand Grip Cosmetic
-
40291003391 Divider Ass'yDivider Ass'y
-
41291003586 Platform CarpetPlatform Carpet
-
42291003587 LH Front CarpetLH Front Carpet
-
43291003588 RH Front CarpetRH Front Carpet
-
44291003589 LH Center Front CarpetLH Center Front Carpet
-
45291003591 RH Center Front CarpetRH Center Front Carpet
-
46291003593 LH Rear CarpetLH Rear Carpet
-
47291003594 RH Rear CarpetRH Rear Carpet
-
48291003637 RH FootrestRH Footrest
-
49291003638 LH FootrestLH Footrest
-
50291003741 Mirror SupportMirror Support
-
51291003816 Black LH Front CosmeticBlack LH Front Cosmetic
-
52291003817 Black RH Front CosmeticBlack RH Front Cosmetic
-
53291003931 PlatePlate
-
54292000933 U-ClampU-Clamp
-
55293000014 Black Snap CapBlack Snap Cap
-
56293050001 Flat WasherFlat Washer
-
57293150016 Rivet 1/8''Rivet 1/8''
-
58293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
59293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
60293150186 Pop Rivet 3/16Pop Rivet 3/16
-
61293250265 Urethane SealUrethane Seal
-
62293250289 SealSeal
-
63293730006 Black DartBlack Dart
-
64293730011 Dart, BlackDart, Black
-
65293830005 Rubber BumperRubber Bumper
-
66414644300 DartDart
-
67291003277 Deck NoseDeck Nose
-
68291003577 LH Center Rear CarpetLH Center Rear Carpet
-
69291003578 RH Center Rear CarpetRH Center Rear Carpet
-
70291003877 Stud SeatStud Seat
-
71291003933 Red RH Hand Grip CosmeticRed RH Hand Grip Cosmetic
-
72264000091 Latch, BlackLatch, Black
-
73291003937 Red RH Side CosmeticRed RH Side Cosmetic
-
74291003872 Lateral BumperLateral Bumper
-
75291003872 Lateral BumperLateral Bumper
-
76291003704 Bumper SupportBumper Support
