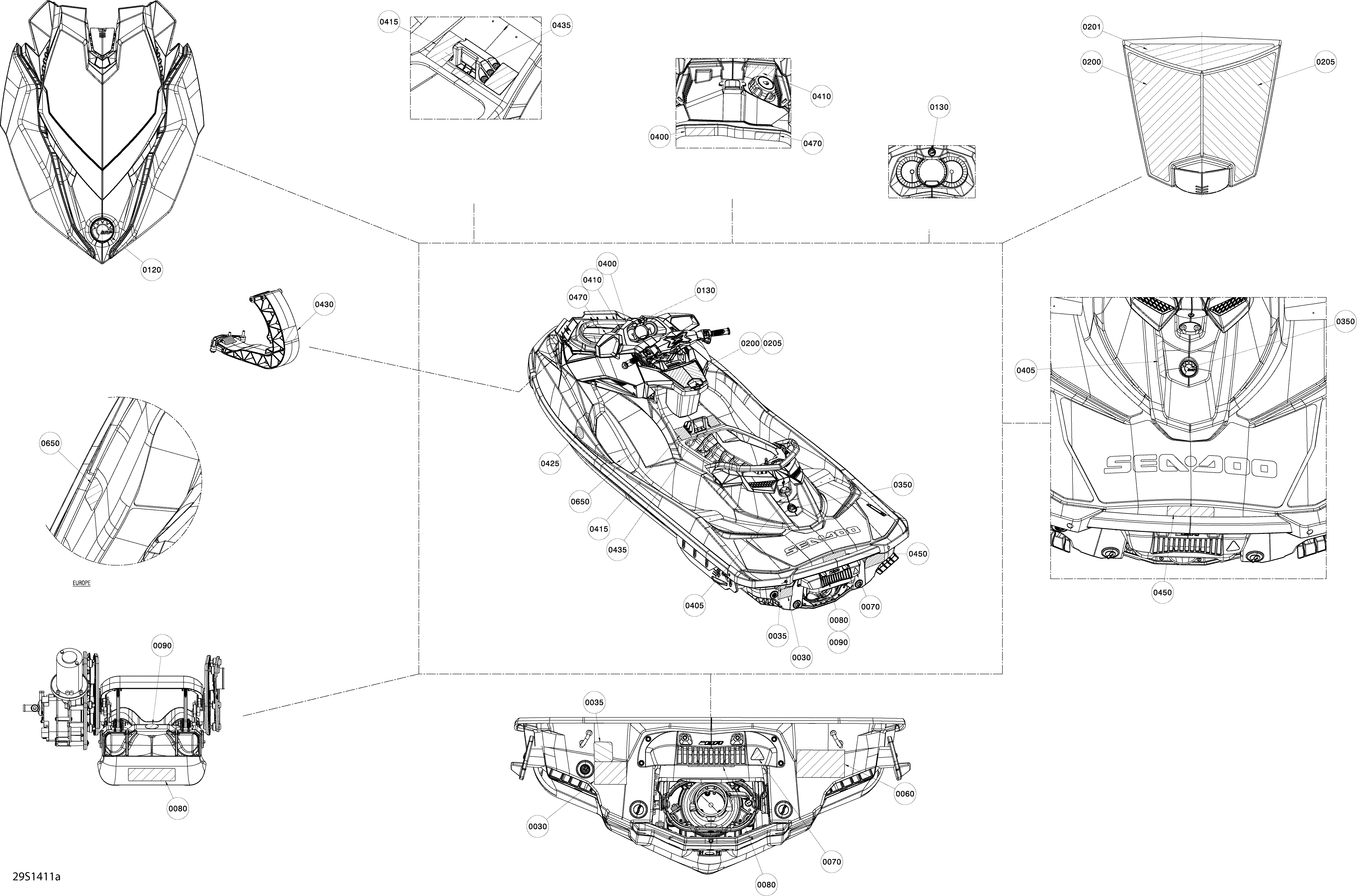

09- Decals _29S1411a для BRP RXP-X 260 & RS - 2014
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0035219904387 Notice Decal, RinceNotice Decal, Rince
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
0120219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
0130219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
0200219903507 LH Warning Label, EnglishLH Warning Label, English
-
0201219904040 Warning Label Sport Model, EnglishWarning Label Sport Model, English
-
0205219903508 RH Warning Label, EnglishRH Warning Label, English
-
0350219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219903510 Decal, ExemptionDecal, Exemption
-
0410219903501 Warning Decal, FuelWarning Decal, Fuel
-
0415219903184 Caution Engine OilCaution Engine Oil
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0430219903502 Warning Decal, StorageWarning Decal, Storage
-
0435219903132 Caution Decal, SecurityCaution Decal, Security
-
0450219904254 Decal Warning, Re-boardDecal Warning, Re-board
-
0470219903127 Notice Decal, Gasoline-OctaneNotice Decal, Gasoline-Octane
-
0650219904014 Conformity Label, Europe. EuropeConformity Label, Europe. Europe
