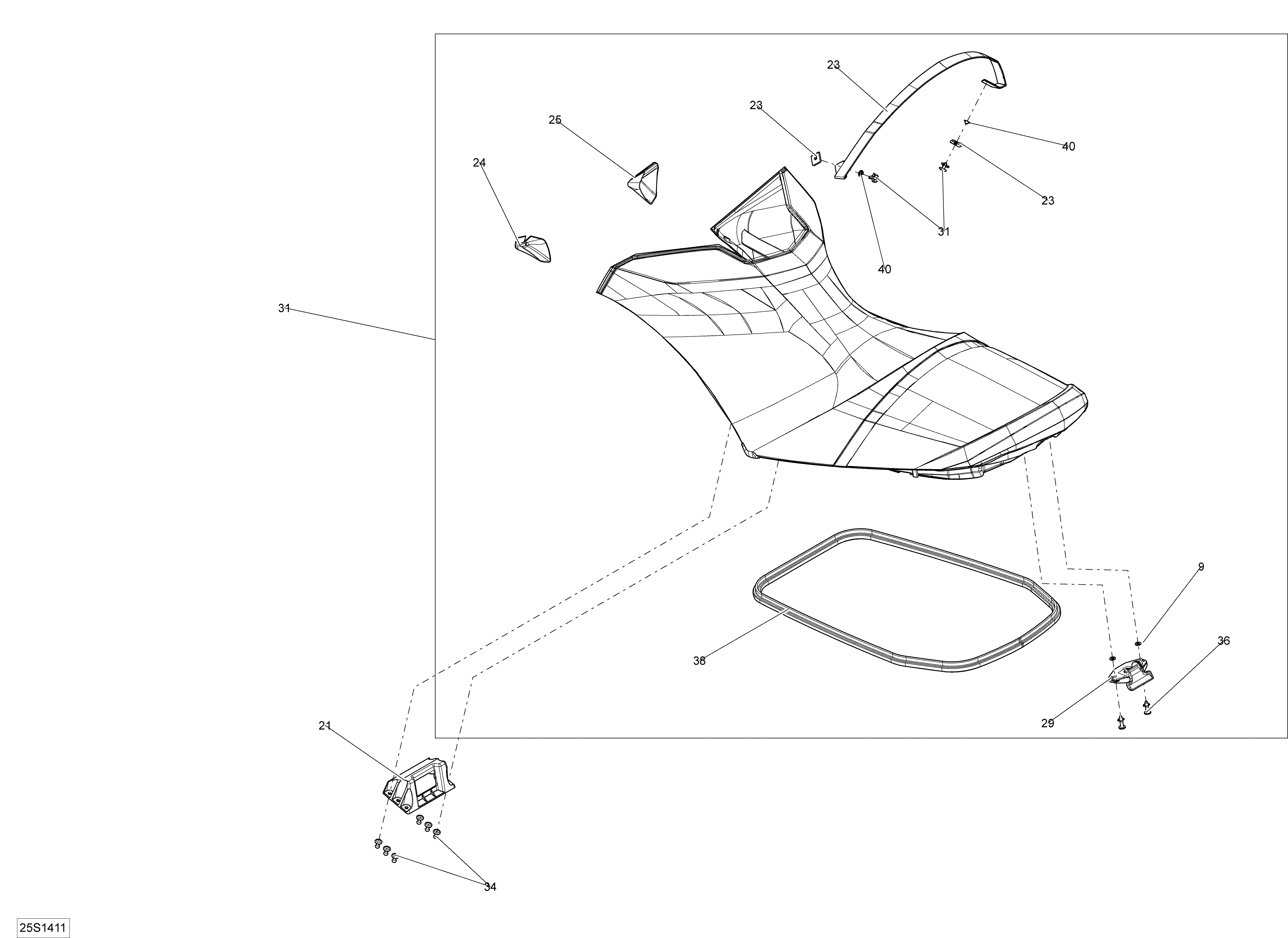

09- Seat _25S1411 для BRP RXP-X 260 & RS - 2014
-
№АртикулНазвание
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21269002151 Seat ReceptacleSeat Receptacle
-
23269002364 Seat StrapSeat Strap
-
24269002446 RH Front Corner ProtectorRH Front Corner Protector
-
25269002447 LH Front Corner ProtectorLH Front Corner Protector
-
29269700109 Latch Ass'yLatch Ass'y
-
31293150067 RivetRivet
-
33269002782 Seat Ass'ySeat Ass'y
-
34293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150151 Rivet 1/4''Rivet 1/4''
-
38293200124 SealSeal
-
40293720067 GrommetGrommet
