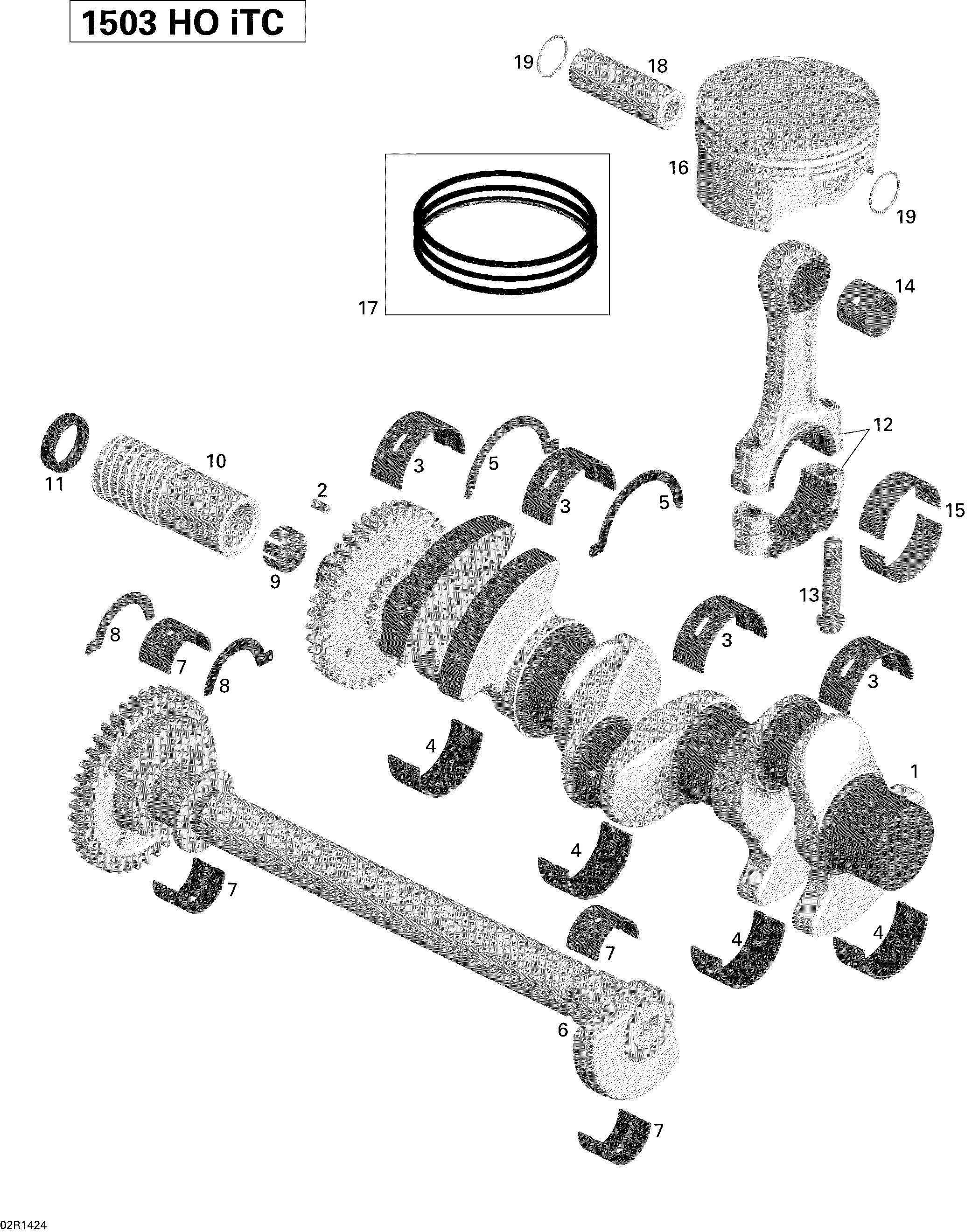

01- Crankshaft, Pistons And Balance Shaft 2 для BRP RXT-X aS 260 & RS. 2014 - 2014
-
№АртикулНазвание
-
1420819348 Crankshaft Ass'y. Includes 1 to 2Crankshaft Ass'y. Includes 1 to 2
-
2420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
3420933456 Plain Half-BearingPlain Half-Bearing
-
4420933466 Plain Half-BearingPlain Half-Bearing
-
5420933475 Half-RingHalf-Ring
-
6420837556 Balance Shaft Ass'yBalance Shaft Ass'y
-
7420933441 Plain Half-BearingPlain Half-Bearing
-
8420933470 Half-RingHalf-Ring
-
9420660280 Stop SleeveStop Sleeve
-
10420847952 Output SleeveOutput Sleeve
-
11420630551 Sealing RingSealing Ring
-
12420917516 Connecting Rod Ass'y. Includes 12 to 14Connecting Rod Ass'y. Includes 12 to 14
-
13420640990 Connecting Rod ScrewConnecting Rod Screw
-
14420933510 Bearing SleeveBearing Sleeve
-
15420933523 Half-BearingHalf-Bearing
-
16420892735 Piston Ass'y, Standard, 99.94 mm. Includes 16 to 17Piston Ass'y, Standard, 99.94 mm. Includes 16 to 17
-
17420890385 Piston Set Ring, StandardPiston Set Ring, Standard
-
18420216250 Piston PinPiston Pin
-
19420845580 CirclipCirclip
