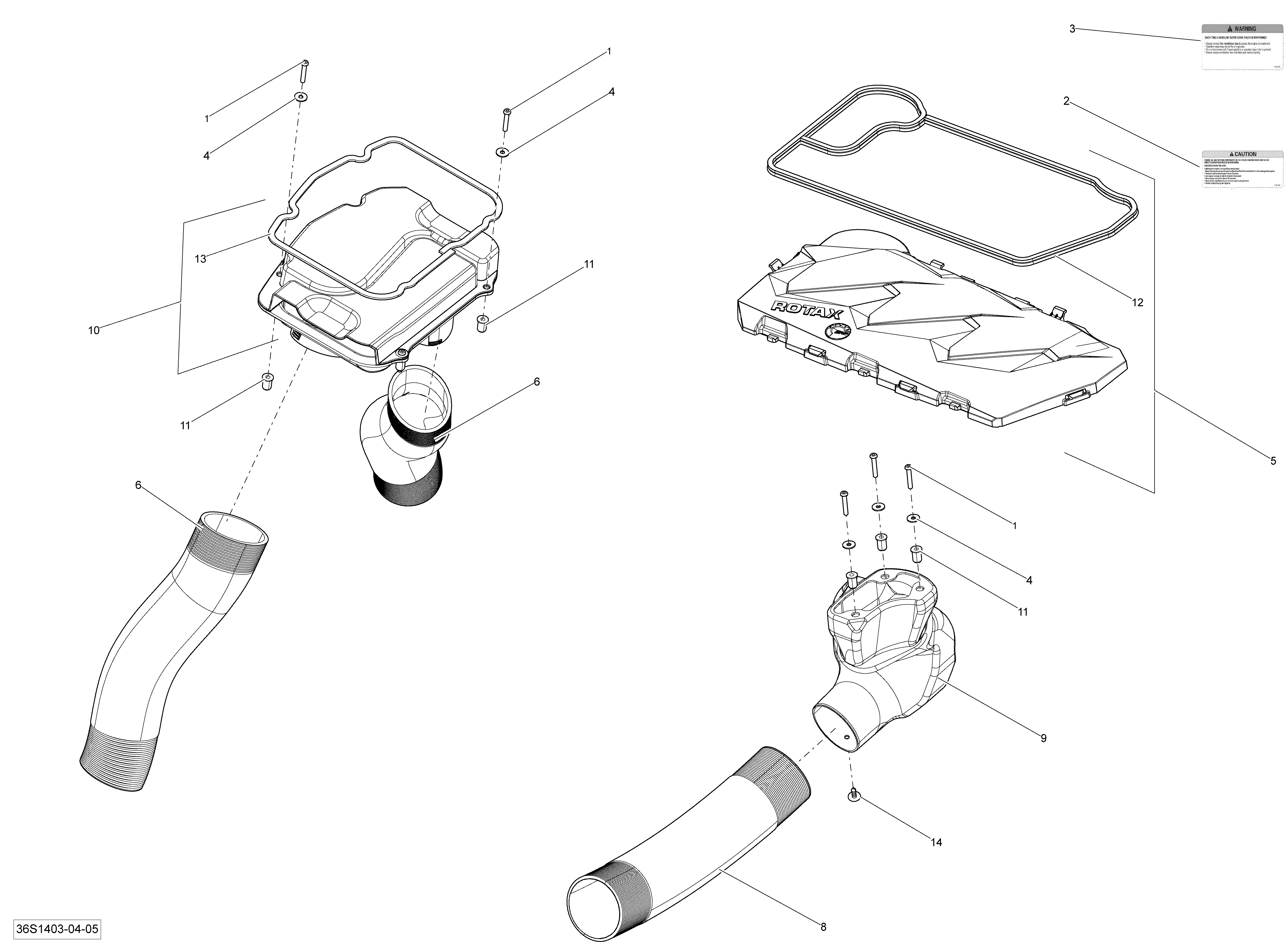

09- Ventilation _36S1405 для BRP RXT-X aS 260 & RS. 2014 - 2014
-
№АртикулНазвание
-
1205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
2219903084 Caution Decal, Engine OilCaution Decal, Engine Oil
-
3219903090 Warning Decal, Gasoline VaporWarning Decal, Gasoline Vapor
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5237000028 Rear Ventilation Box Ass'yRear Ventilation Box Ass'y
-
6237000030 Vent Hose 3.5''Vent Hose 3.5''
-
8237000031 Vent Hose 3.5''Vent Hose 3.5''
-
9237000057 Rear Vent DuctRear Vent Duct
-
10237000036 Front Ventilation Box Ass'yFront Ventilation Box Ass'y
-
11250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
12293250213 GasketGasket
-
13293250214 GasketGasket
-
14293730011 Dart, BlackDart, Black
