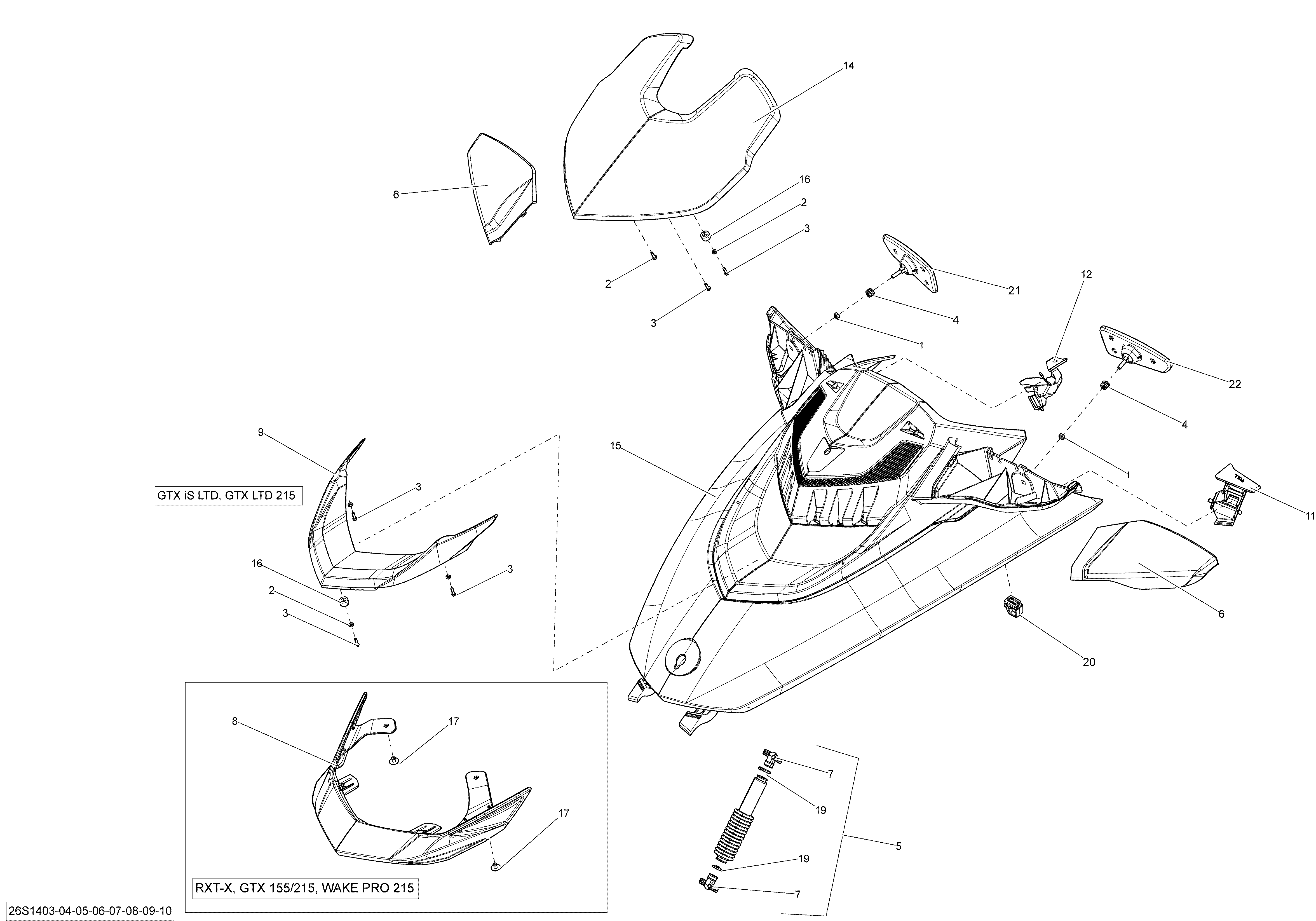

09- Front Cover _26S1405 для BRP RXT-X aS 260 & RS. 2014 - 2014
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
4269500453 Mirror SpringMirror Spring
-
5269501664 Shock AbsorberShock Absorber
-
6269501771 Black RH Mirror HousingBlack RH Mirror Housing
-
6269501772 Black LH Mirror HousingBlack LH Mirror Housing
-
7269501717 Shock End PieceShock End Piece
-
11269501964 Left LatchLeft Latch
-
12269501965 Right LatchRight Latch
-
14269502017 Red Upper Front DeflectorRed Upper Front Deflector
-
15269502016 Red Hood AssemblyRed Hood Assembly
-
16291001203 SpacerSpacer
-
19293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
20293830135 Rubber BumperRubber Bumper
-
21269501920 RH Mirror Ass'yRH Mirror Ass'y
-
22269501918 LH Mirror Ass'yLH Mirror Ass'y
