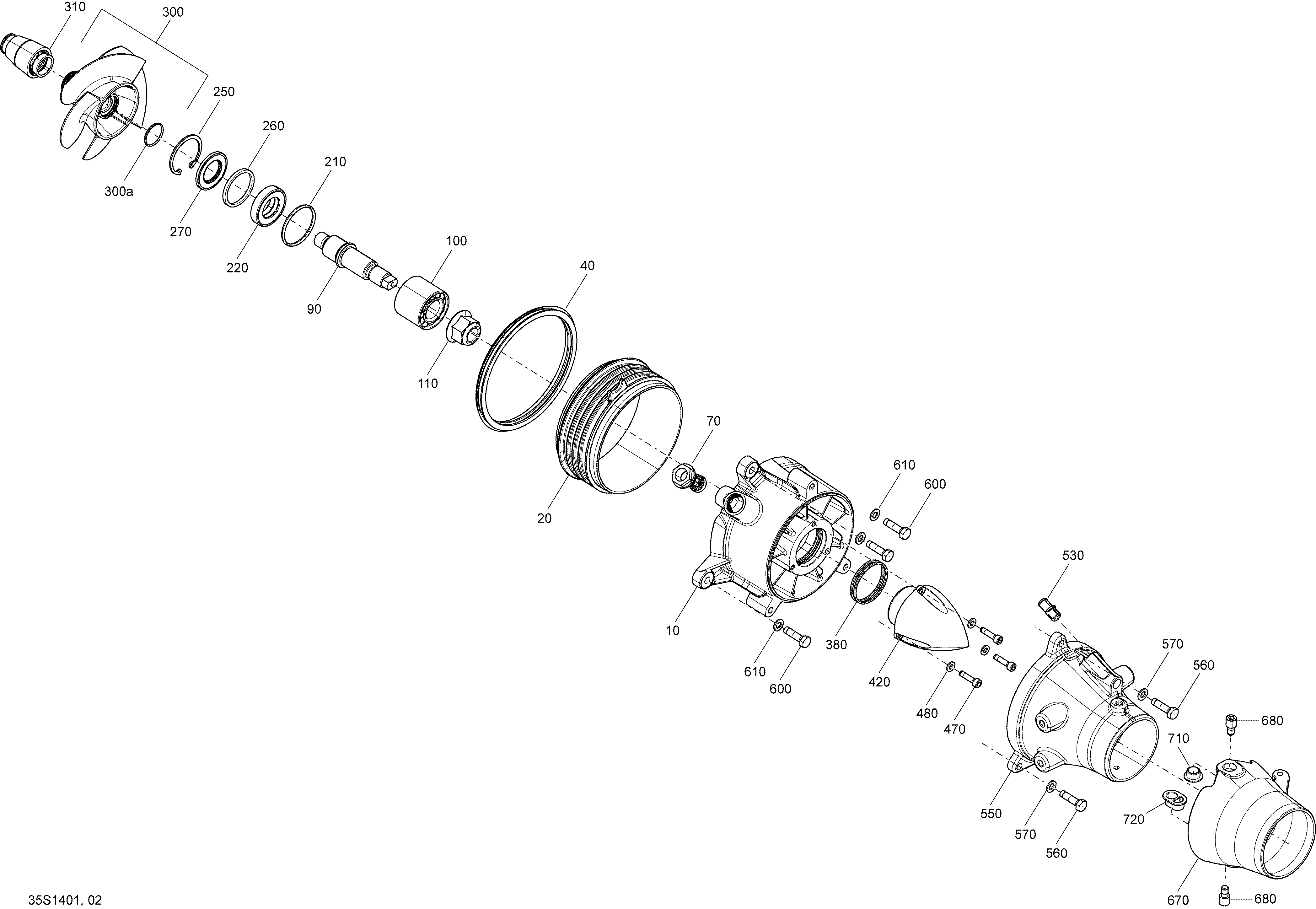

05- Pump _35S1402 для BRP SPARK ACE 900 (2up) - 2014
-
№АртикулНазвание
-
10267000612 Impeller HousingImpeller Housing
-
20267000617 Wear RingWear Ring
-
40293200134 Neoprene SealNeoprene Seal
-
70267000282 PlugPlug
-
90267000581 Impeller ShaftImpeller Shaft
-
100267000583 Conical BearingConical Bearing
-
110250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
210293300090 O-RingO-Ring
-
220293200086 Oil SealOil Seal
-
250293370038 CirclipCirclip
-
260271001393 SpacerSpacer
-
270293200089 Oil SealOil Seal
-
300267000584 Impeller Ass'y. Includes 300 to 300aImpeller Ass'y. Includes 300 to 300a
-
300a293300114 O-RingO-Ring
-
310267000776 Boot ImpellerBoot Impeller
-
380293300096 O-RingO-Ring
-
420267000769 Impeller CoverImpeller Cover
-
470205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
480234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530267000782 Siphon TubeSiphon Tube
-
550267000587 VenturiVenturi
-
560207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
570234080600 Flat Washer 8 mmFlat Washer 8 mm
-
600207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
610234080600 Flat Washer 8 mmFlat Washer 8 mm
-
670267000705 NozzleNozzle
-
680268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
710293900007 Venturi BushingVenturi Bushing
-
720293900010 Plastic BushingPlastic Bushing
