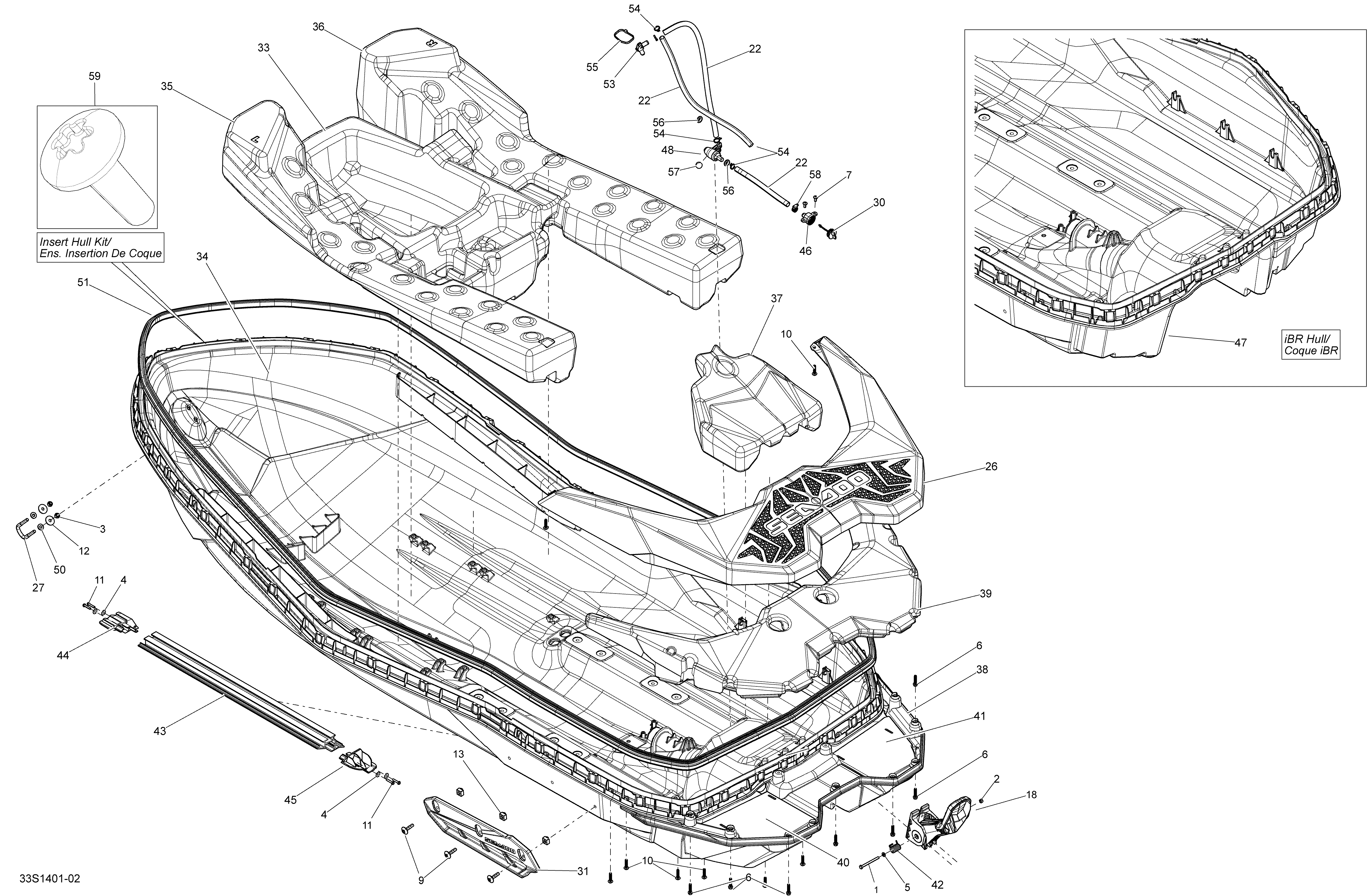

09- Hull _33S1402 для BRP SPARK ACE 900 (2up) - 2014
-
№АртикулНазвание
-
1207067060 Hex. Screw M6 X 70Hex. Screw M6 X 70
-
2232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
3232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
4234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
5234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
7250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
8250000709 Flanged Hexalob Plasite Screw M6.81x30Flanged Hexalob Plasite Screw M6.81x30
-
9250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
10250000709 Flanged Hexalob Plasite Screw M6.81x30Flanged Hexalob Plasite Screw M6.81x30
-
11250000680 Hex. Flange Screw K50 X 25Hex. Flange Screw K50 X 25
-
12250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
18295100494 Reboarding DeviceReboarding Device
-
22275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
26291003514 Deck Body. IBR SystemDeck Body. IBR System
-
27292000933 U-ClampU-Clamp
-
30292001352 Plug Drain Ass'yPlug Drain Ass'y
-
31292001435 LH SponsonLH Sponson
-
31292001436 RH SponsonRH Sponson
-
33292001439 Front FloatFront Float
-
34292001440 Hull. Base ModelHull. Base Model
-
35292001467 LH FloatLH Float
-
36292001468 RH FloatRH Float
-
37292001469 Rear FloatRear Float
-
38292001492 Hull Extension. IBR SystemHull Extension. IBR System
-
39292001504 Rear Deck Extension Float. IBR SystemRear Deck Extension Float. IBR System
-
40292001505 LH Extension Float. IBR SystemLH Extension Float. IBR System
-
41292001506 RH Extension Float. IBR SystemRH Extension Float. IBR System
-
42292001520 SpringSpring
-
43292001549 Hull ReinforcementHull Reinforcement
-
44292001550 Front End Piece ReinforcementFront End Piece Reinforcement
-
45292001551 Rear End Piece ReinforcementRear End Piece Reinforcement
-
46292001552 Neck DrainNeck Drain
-
47295501136 Hull. IBR SystemHull. IBR System
-
48292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
50293050001 Flat WasherFlat Washer
-
51293250338 Seal JointSeal Joint
-
53293710152 Fitting Elbow 90°Fitting Elbow 90°
-
54293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
55293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
56293830063 Rubber WasherRubber Washer
-
57293830080 Floating BallFloating Ball
-
58293650171 Tridon Gear ClampTridon Gear Clamp
-
59295501139 Insert Hull KitInsert Hull Kit
