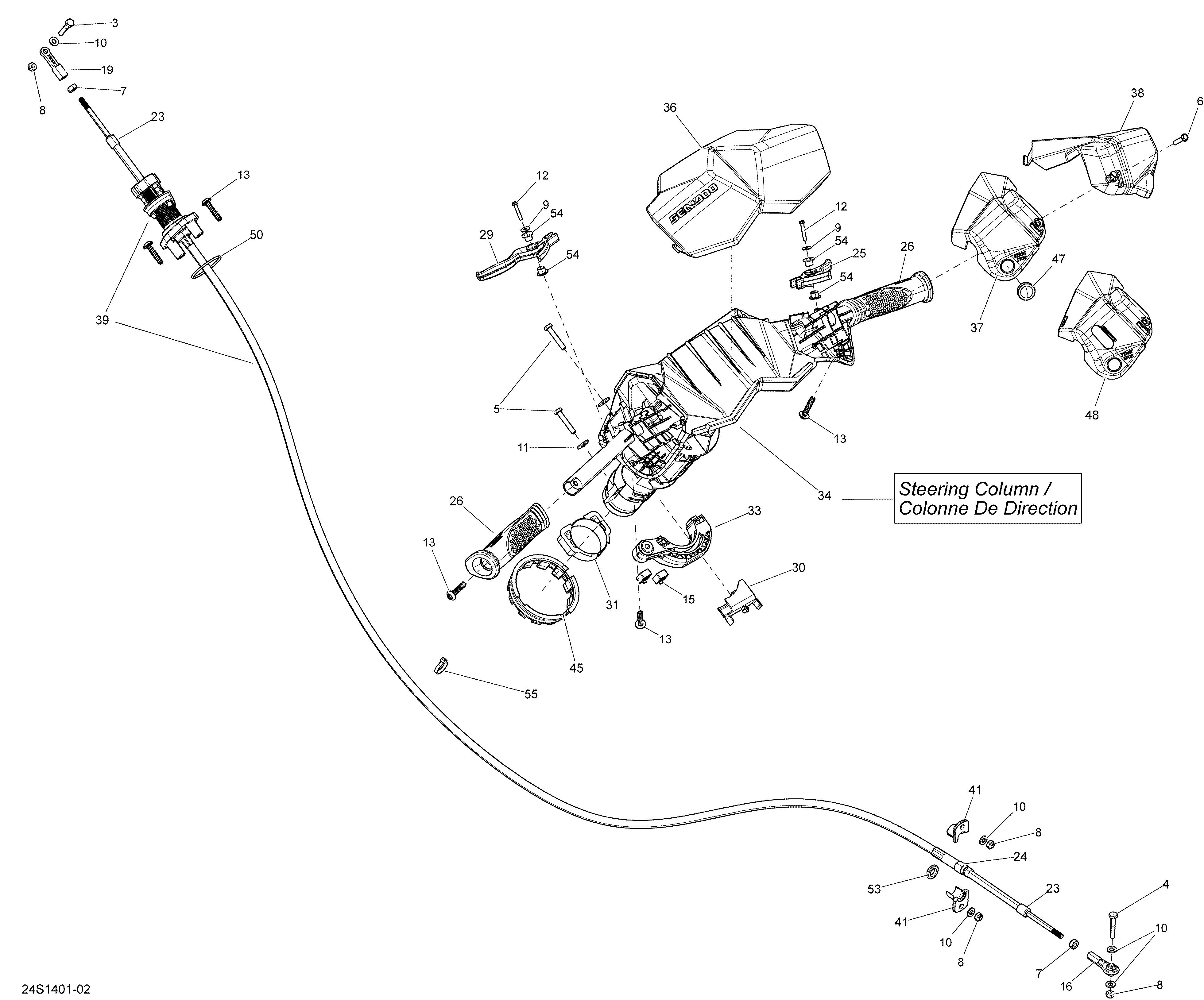

07- Steering _24S1402 для BRP SPARK ACE 900 (2up) - 2014
-
№АртикулНазвание
-
3207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
4207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
5207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
6211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
7211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
9234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
13250000709 Flanged Hexalob Plasite Screw M6.81x30Flanged Hexalob Plasite Screw M6.81x30
-
15269501166 Nut Housing Ass'yNut Housing Ass'y
-
16277000775 Ball JointBall Joint
-
19277001180 Ball JointBall Joint
-
23277001582 Small BootSmall Boot
-
24277001583 Large BootLarge Boot
-
25277001620 Throttle HandleThrottle Handle
-
26277001624 Handle GripHandle Grip
-
30277001654 SpacerSpacer
-
31277001741 Wear RingWear Ring
-
33277001779 Support Ass'ySupport Ass'y
-
34277001785 SteeringSteering
-
36277001786 Wear PadWear Pad
-
37277001787 LH CoverLH Cover
-
38277001788 RH CoverRH Cover
-
39277001790 Steering CableSteering Cable
-
41277001856 Ring HalvesRing Halves
-
45277001874 Wear RingWear Ring
-
47277001887 Knob Switch, RedKnob Switch, Red
-
50293300176 O-RingO-Ring
-
53293830063 Rubber WasherRubber Washer
-
54293900091 BushingBushing
-
55414115200 Tie-Rap 180 mmTie-Rap 180 mm
