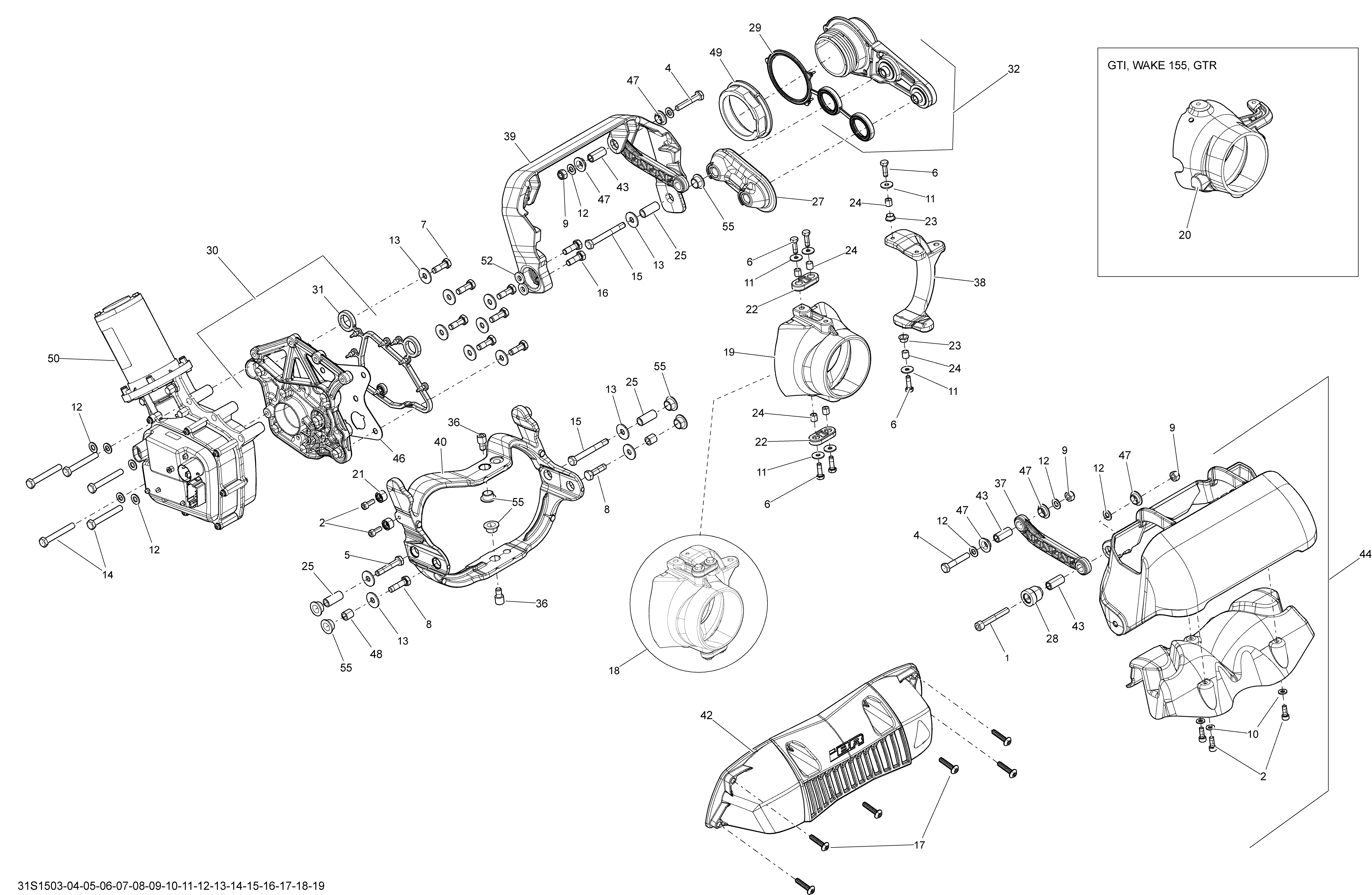

05- Reverse _31S1504 для BRP GTX S 155 - 2015
-
№АртикулНазвание
-
1205085560 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
2205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5207284560 Hex. Screw S. Grip M8 X 45Hex. Screw S. Grip M8 X 45
-
6207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
15250000506 Hex. Screw M8 X 70, Scotch GripHex. Screw M8 X 70, Scotch Grip
-
16250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
17250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
18267000724 Nozzle Ass'yNozzle Ass'y
-
19267000727 Jet Pump NozzleJet Pump Nozzle
-
21268000045 Friction SleeveFriction Sleeve
-
22268000058 Direction Lever ArmDirection Lever Arm
-
23268000059 BushingBushing
-
24268000060 SpacerSpacer
-
25268000063 SpacerSpacer
-
27268000085 RH Support PlateRH Support Plate
-
28268000099 BushingBushing
-
29268000105 RH Formed SealRH Formed Seal
-
30268000111 LH Fixing Plate Ass'yLH Fixing Plate Ass'y
-
31268000129 LH Formed SealLH Formed Seal
-
32268000130 RH Fixing Plate Ass'yRH Fixing Plate Ass'y
-
36268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
37268000145 Linkage ArmLinkage Arm
-
38268000148 Nozzle Lever, BlackNozzle Lever, Black
-
39268000217 ''U'' Arm, Black''U'' Arm, Black
-
40268000155 Trimming Ring, BlackTrimming Ring, Black
-
42268000162 GuardGuard
-
43268000182 SpacerSpacer
-
44268000183 Reverse Gate Ass'yReverse Gate Ass'y
-
46268000216 Base MountBase Mount
-
47271000321 Venturi BushingVenturi Bushing
-
48271001039 SpacerSpacer
-
49274000224 Nut 72 mmNut 72 mm
-
50278003122 IBR ActuatorIBR Actuator
-
52293050001 Flat WasherFlat Washer
-
55293900007 Venturi BushingVenturi Bushing
