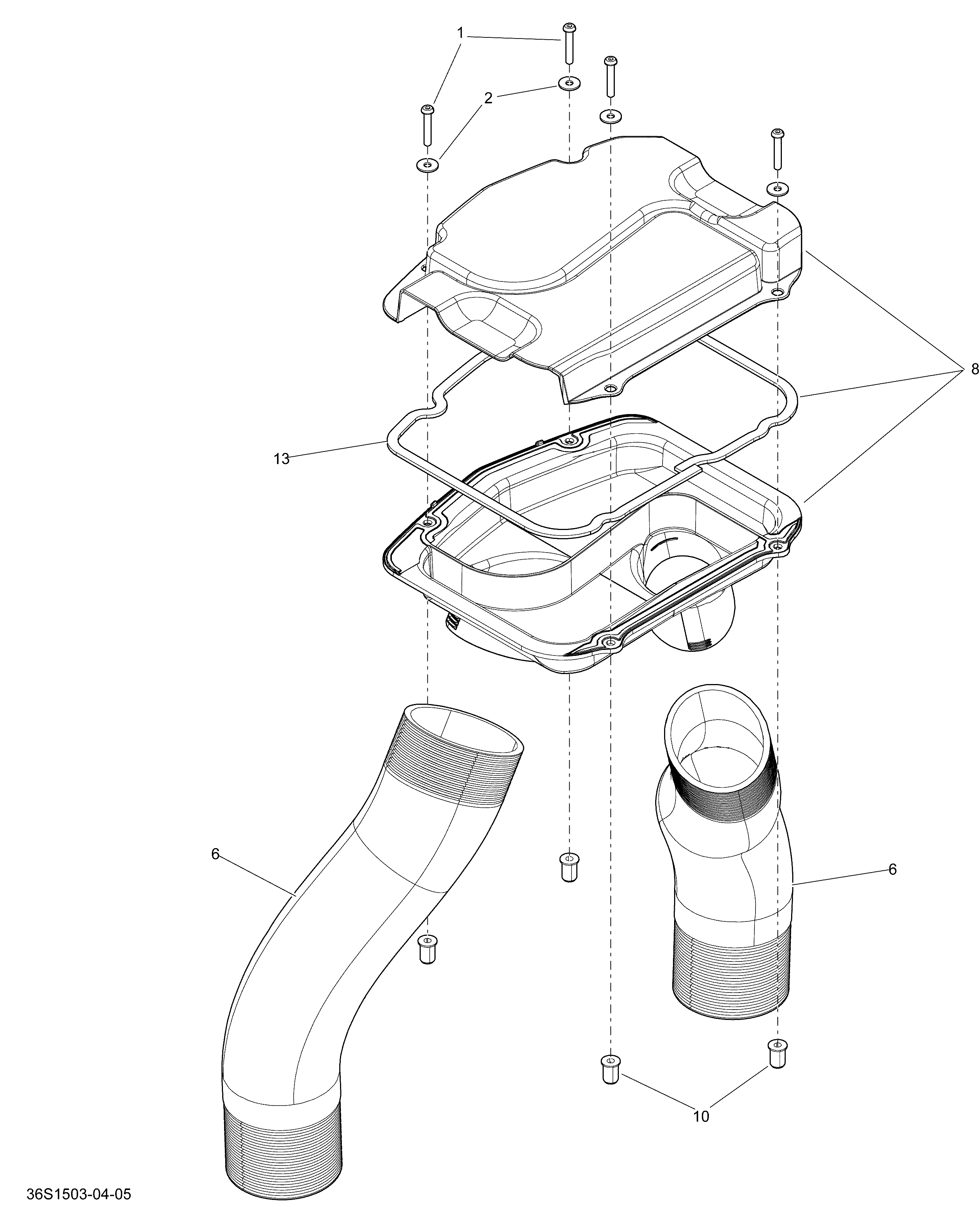

09- Ventilation _36S1504 для BRP GTX S 155 - 2015
-
№АртикулНазвание
-
1205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
2234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6237000030 Vent Hose 3.5''Vent Hose 3.5''
-
8237000063 Front Ventilation Box Ass'yFront Ventilation Box Ass'y
-
10250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
13293250214 GasketGasket
