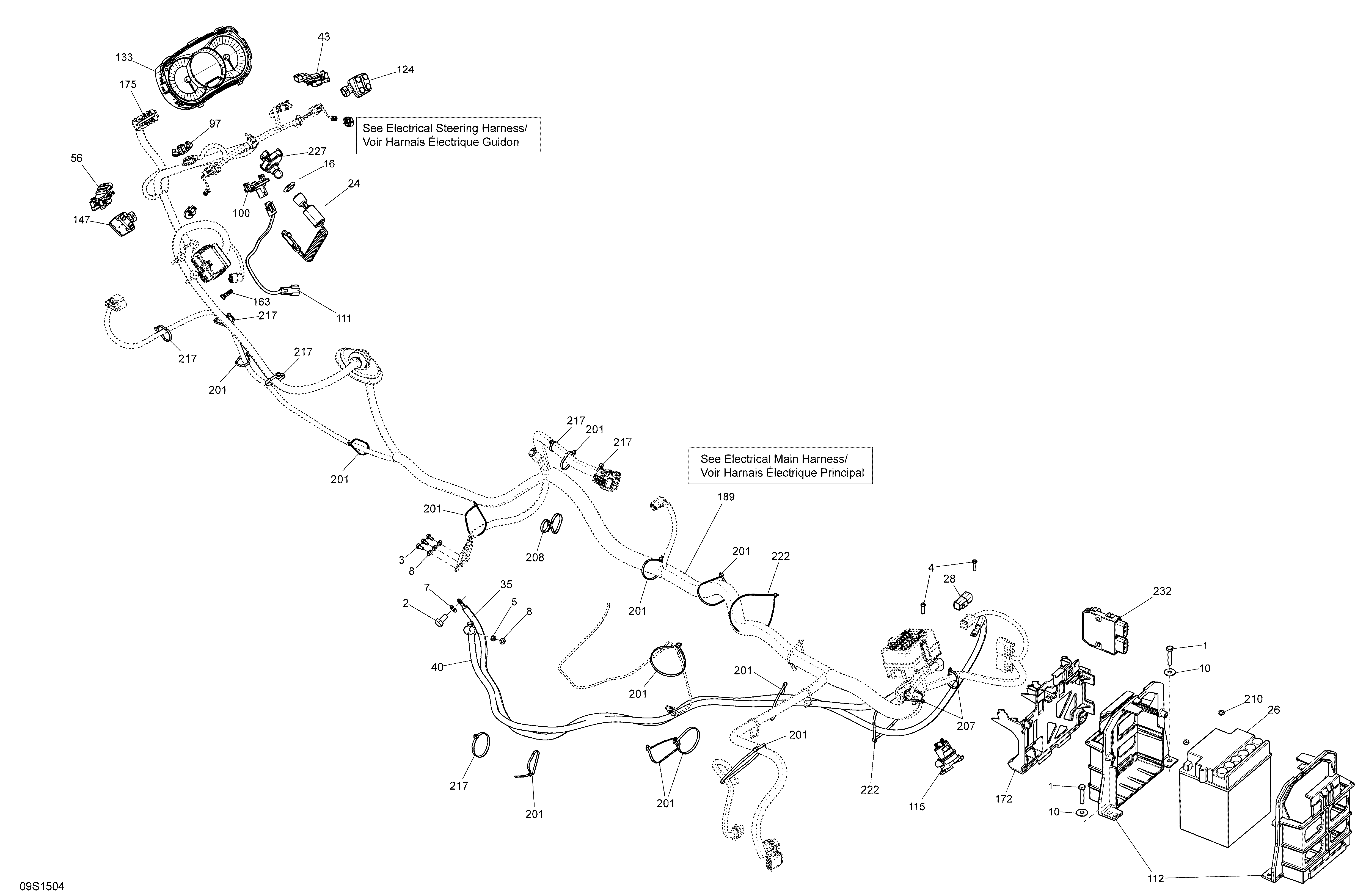

10- Electrical System _09S1504 для BRP GTX S 155 - 2015
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
16278002963 Safety NutSafety Nut
-
24278003092 Anti-Theft Tether CordAnti-Theft Tether Cord
-
24278003093 Learning Tether CordLearning Tether Cord
-
26278001882 Battery 30 AMPBattery 30 AMP
-
28278002704 Diagnostic ConnectorDiagnostic Connector
-
35278003269 Battery Ground CableBattery Ground Cable
-
40278003267 Starter HarnessStarter Harness
-
43278002283 RH Throttle SensorRH Throttle Sensor
-
56278002284 LH Throttle SensorLH Throttle Sensor
-
97278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
111278003009 O.T.A.S. Sensor Ass'yO.T.A.S. Sensor Ass'y
-
112278003306 Battery SupportBattery Support
-
115278003012 Starter RelayStarter Relay
-
124278002602 SwitchSwitch
-
133278003214 Central Information Cluster SECentral Information Cluster SE
-
147278002768 SwitchSwitch
-
163278002910 ClipClip
-
172278003048 SupportSupport
-
175278003265 Steering Harness Ass'ySteering Harness Ass'y
-
189278003252 Main Harness (AS)Main Harness (AS)
-
201293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
208293750053 Tie Rap 300mmTie Rap 300mm
-
210250000282 Battery Bolt KitBattery Bolt Kit
-
217414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
222293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
227515177458 SwitchSwitch
-
232710001103 Voltage RegulatorVoltage Regulator
