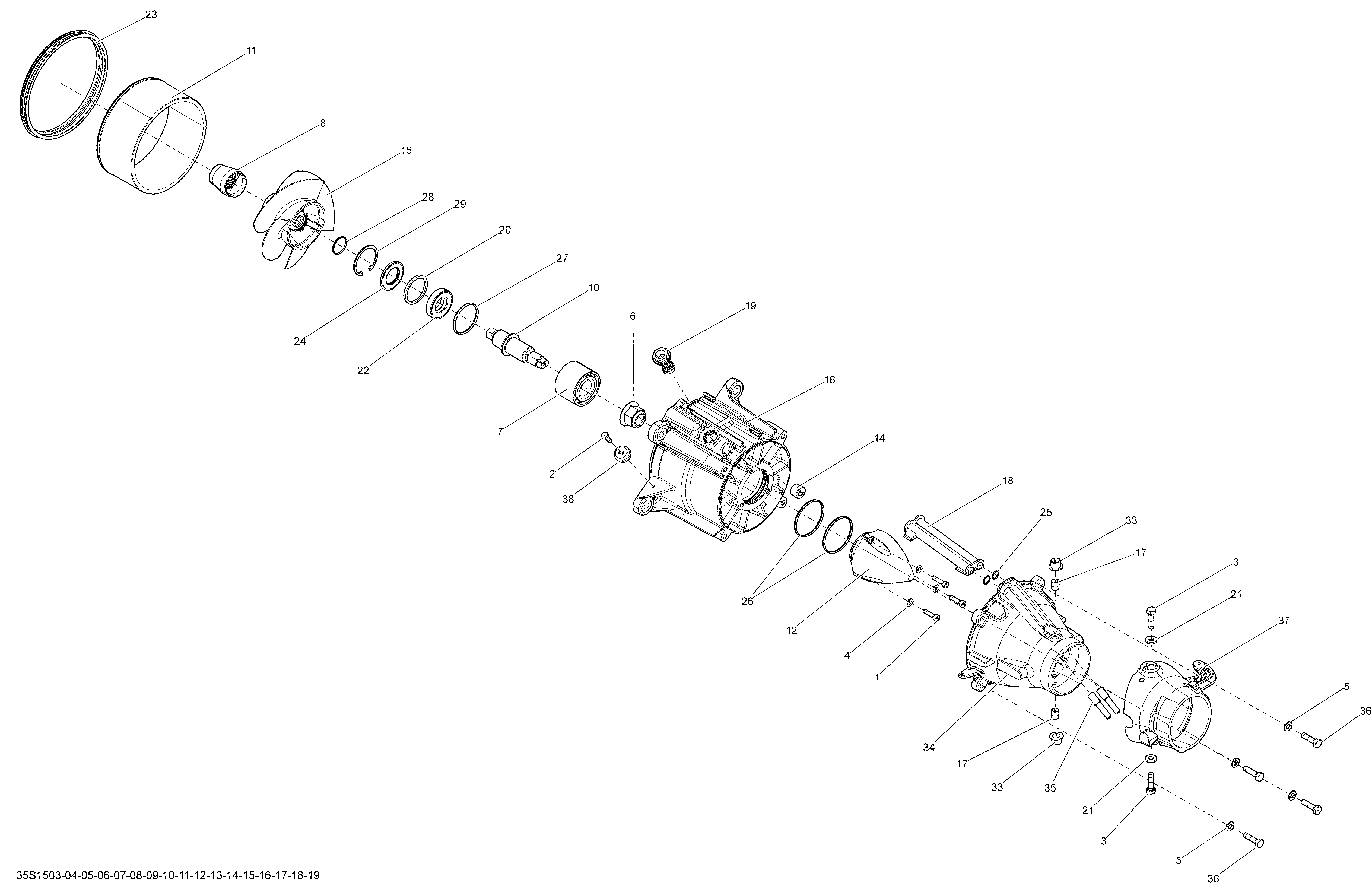

05- Pump _35S1505 для BRP RXT-X aS 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
7267000030 Angled BearingAngled Bearing
-
8267000458 Impeller BootImpeller Boot
-
10267000388 Impeller ShaftImpeller Shaft
-
11267000372 Wear RingWear Ring
-
12267000428 Impeller CoverImpeller Cover
-
14267000469 Plug Plastic, BlackPlug Plastic, Black
-
15267000623 Impeller Ass'yImpeller Ass'y
-
16267000540 Impeller HousingImpeller Housing
-
18271000785 Water OutletWater Outlet
-
19267000282 PlugPlug
-
20271001393 SpacerSpacer
-
22293200086 Oil SealOil Seal
-
23293200087 Neoprene SealNeoprene Seal
-
24293200089 Oil SealOil Seal
-
25293300013 O-RingO-Ring
-
26293300086 O-RingO-Ring
-
27293300090 O-RingO-Ring
-
28293300114 O-RingO-Ring
-
29293370038 CirclipCirclip
-
34267000844 Venturi, BlackVenturi, Black
-
35271001885 Siphon TubeSiphon Tube
-
36250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
38271001813 Anode ZincAnode Zinc
