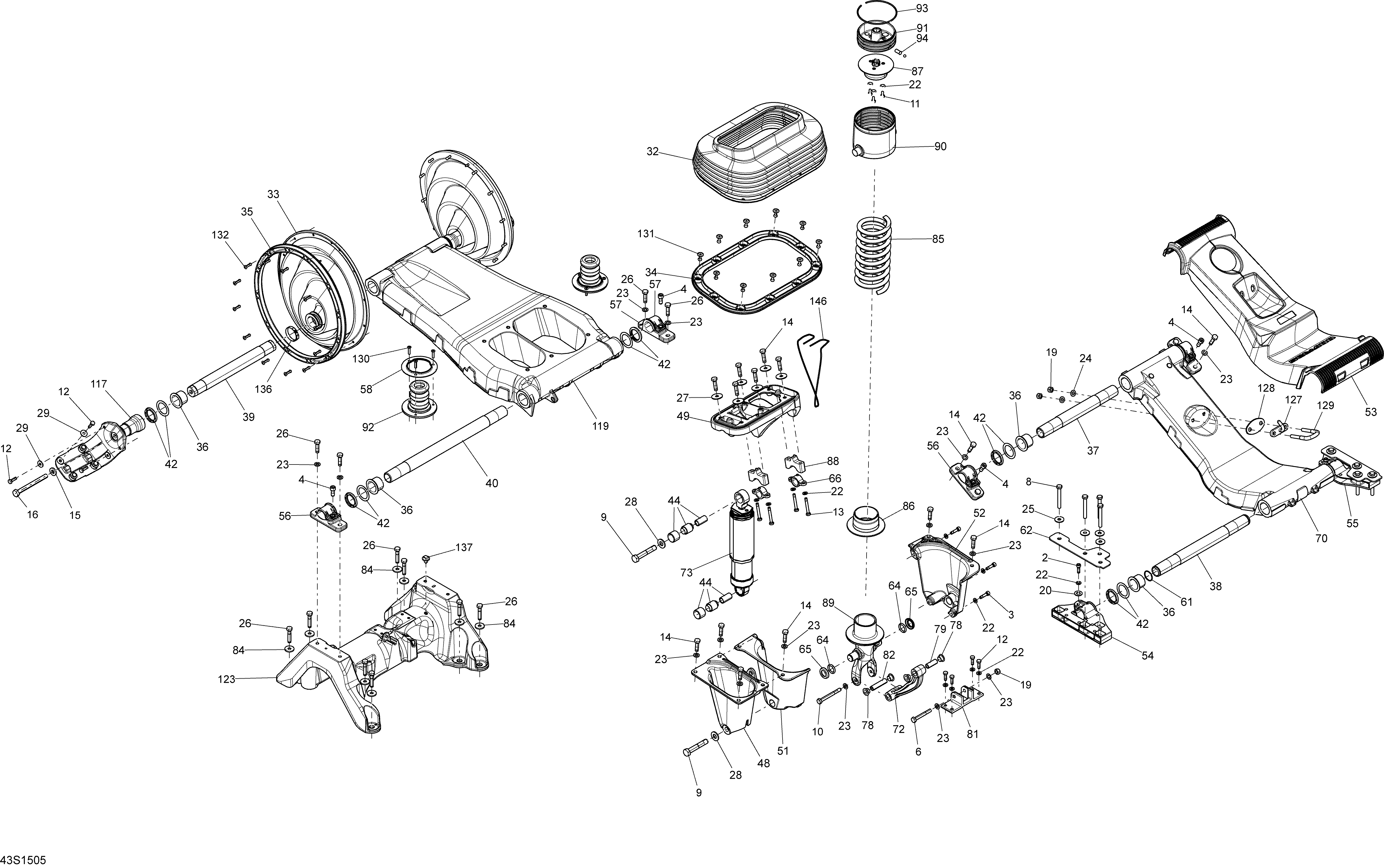

08- Suspension _43S1505 для BRP RXT-X aS 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
2205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
4205582060 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
6207086060 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
8207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
9207227060 Hex. Screw M12 X 70, Scotch GripHex. Screw M12 X 70, Scotch Grip
-
10207287560 Hex. Screw M8 x 75, Scotch GripHex. Screw M8 x 75, Scotch Grip
-
11207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
12207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
13207364560 Hex. Screw M6 x 45, Scotch GripHex. Screw M6 x 45, Scotch Grip
-
14207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
15211200051 Flat WasherFlat Washer
-
16230201060 Hex. Screw M10 X 110, Scotch GripHex. Screw M10 X 110, Scotch Grip
-
19232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
20234001600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
22234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
24234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
25234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26250000729 Hex. Screw M8 X 40, SOtch GripHex. Screw M8 X 40, SOtch Grip
-
27250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
28250200053 Flat Washer M12Flat Washer M12
-
29250200115 Flat Washer M6Flat Washer M6
-
32279000008 Central BellowsCentral Bellows
-
33279000009 Lateral BellowsLateral Bellows
-
34279000010 Retaining PlateRetaining Plate
-
35279000011 Retaining RingRetaining Ring
-
36279000019 BushingBushing
-
37279000031 Pivot TubePivot Tube
-
38279000033 Pivot TubePivot Tube
-
39279000038 Pivot TubePivot Tube
-
40279000041 Pivot TubePivot Tube
-
42279000047 Rubber BumperRubber Bumper
-
44279000051 BushingBushing
-
48279000055 Shock Lower HolderShock Lower Holder
-
49279000057 Shock Upper HolderShock Upper Holder
-
51279000070 LH Spring HolderLH Spring Holder
-
52279000074 RH Spring HolderRH Spring Holder
-
53279000080 Rear Arm MouldingRear Arm Moulding
-
54279000083 LH Rear BaseLH Rear Base
-
55279000087 RH Rear BaseRH Rear Base
-
56279000089 LH ClampLH Clamp
-
57279000092 RH ClampRH Clamp
-
58279000115 Retaining RingRetaining Ring
-
61279000100 Retaining RingRetaining Ring
-
62279000114 Retaining PlateRetaining Plate
-
63279000103 BushingBushing
-
64279000104 O-RingO-Ring
-
65279000105 BushingBushing
-
66279000106 ClampClamp
-
70279000001 Rear Arm Ass'yRear Arm Ass'y
-
72279000157 Spring Alignment ArmSpring Alignment Arm
-
73279000324 ShockShock
-
78279000137 BushingBushing
-
79279000138 SpacerSpacer
-
81279000155 BracketBracket
-
82279000153 SpacerSpacer
-
84279000164 Flat WasherFlat Washer
-
85279000180 Painted SpringPainted Spring
-
86279000182 Lower Spring ProtectorLower Spring Protector
-
87279000183 Upper Spring ProtectorUpper Spring Protector
-
88279000206 E-Coat SpacerE-Coat Spacer
-
89279000188 Lower Spring ProtectorLower Spring Protector
-
90279000189 Upper Spring HolderUpper Spring Holder
-
91279000191 Upper Spring HolderUpper Spring Holder
-
92279000193 Rubber BumperRubber Bumper
-
93279000198 Retaining RingRetaining Ring
-
94279000205 PlungerPlunger
-
106279000321 GrommetGrommet
-
117279000306 Foot RestFoot Rest
-
119279000308 Front Arm Ass'yFront Arm Ass'y
-
123279000316 Front Arm BaseFront Arm Base
-
127291002351 HookHook
-
128291001386 Finition Plate, BlackFinition Plate, Black
-
129292000933 U-ClampU-Clamp
-
130293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
131293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
132293150176 Pop Rivet 3/16''Pop Rivet 3/16''
-
133293200136 Seal, MeterSeal, Meter
-
136293650199 Oetiker Gear ClampOetiker Gear Clamp
-
137293730040 Mount DartMount Dart
-
139293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
141293750053 Tie Rap 300mmTie Rap 300mm
-
146708200118 Retaining CableRetaining Cable
