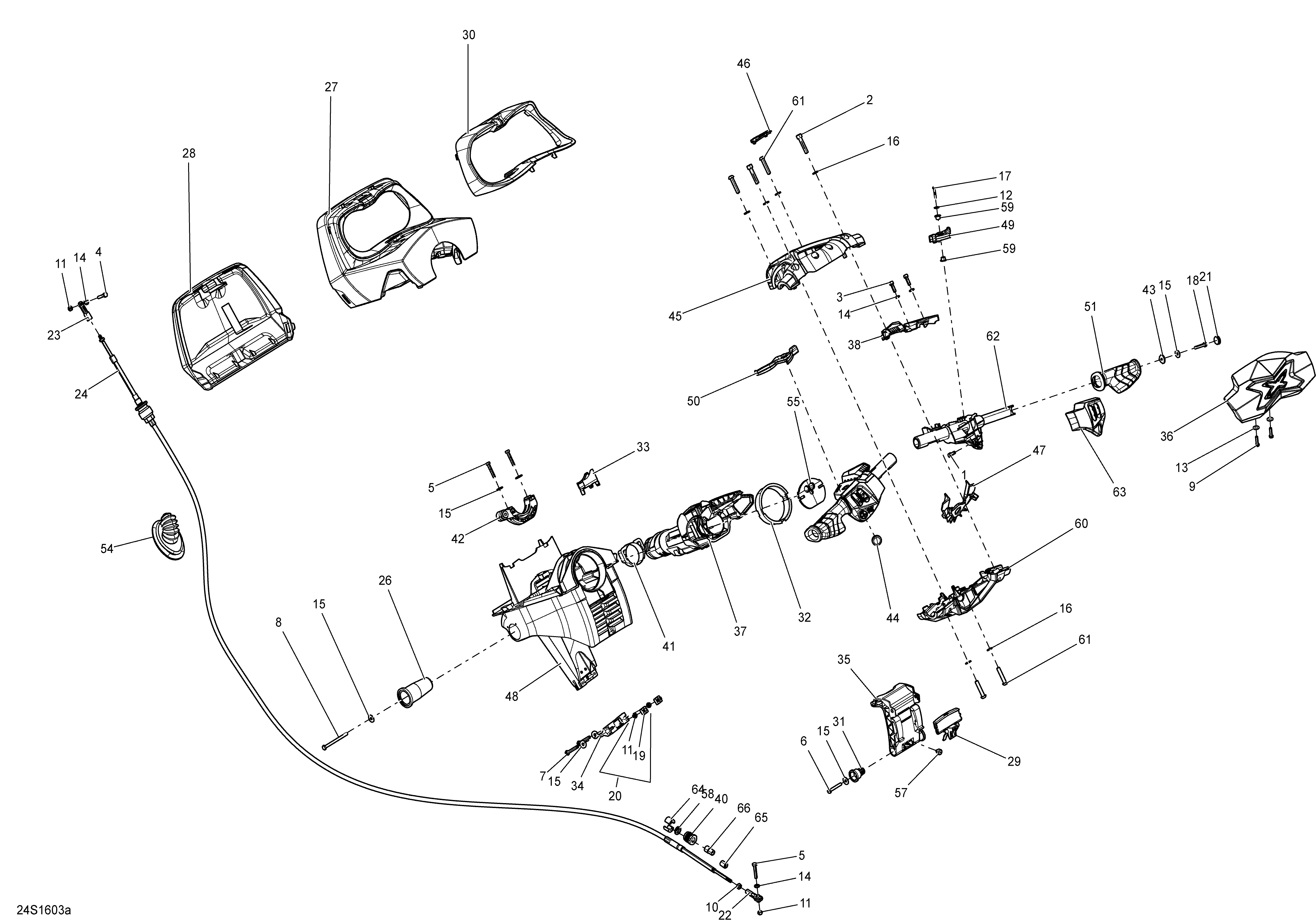

07- Steering - RXT-X aS 260 для BRP RXT - 2016
-
№АртикулНазвание
-
1205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
5207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
6207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
7207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
8207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
9211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
10211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
11232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
14234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
17241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
18250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
19269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
20269501166 Nut Housing Ass'yNut Housing Ass'y
-
21277000203 Cap, BlackCap, Black
-
22277000775 Ball JointBall Joint
-
23277001180 Ball JointBall Joint
-
24277001602 Steering CableSteering Cable
-
26277001605 Steering Support PivotSteering Support Pivot
-
27277001953 Gauge SupportGauge Support
-
28277001613 Gauge Support CoverGauge Support Cover
-
29277001616 LockLock
-
30277001630 Gauge Trim, BlackGauge Trim, Black
-
31277001652 PivotPivot
-
32277001653 Wear RingWear Ring
-
33277001654 SpacerSpacer
-
34277001655 Thrust Support Ass'yThrust Support Ass'y
-
35277001658 Handle Ass'yHandle Ass'y
-
36277001683 Handle PadHandle Pad
-
37277001807 Steering ColomnSteering Colomn
-
38277001688 RH Upper HousingRH Upper Housing
-
38277001686 LH Upper HousingLH Upper Housing
-
40277001729 Steering Cable LockSteering Cable Lock
-
41277001741 Wear RingWear Ring
-
42277001779 Support Ass'ySupport Ass'y
-
43277001863 Insert Grip HandleInsert Grip Handle
-
44277001887 Knob Switch, RedKnob Switch, Red
-
45277001909 Front Extension BlocFront Extension Bloc
-
46277001919 Aesthetic CapAesthetic Cap
-
47277001920 Radio Frequency Key SupportRadio Frequency Key Support
-
48277001942 Steering SupportSteering Support
-
49277001944 Throttle HandleThrottle Handle
-
50277001945 Reverse HandleReverse Handle
-
51277001946 Handle Grip RHHandle Grip RH
-
51277001958 Handle Grip LHHandle Grip LH
-
54293720083 GrommetGrommet
-
55293720086 GrommetGrommet
-
56293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
57293830005 Rubber BumperRubber Bumper
-
58293830063 Rubber WasherRubber Washer
-
59293900091 BushingBushing
-
60277001926 Rear Extension BlockRear Extension Block
-
61250000845 Torx-Button M/S M8 X 40 Stlss S.GriTorx-Button M/S M8 X 40 Stlss S.Gri
-
62277001966 Housing RHHousing RH
-
62277001965 Housing LHHousing LH
-
63277001718 RH Housing CoverRH Housing Cover
-
63277001794 LH Housing CoverLH Housing Cover
-
64277001527 Half RingHalf Ring
-
65277001582 Small BootSmall Boot
-
66277001583 Large BootLarge Boot
