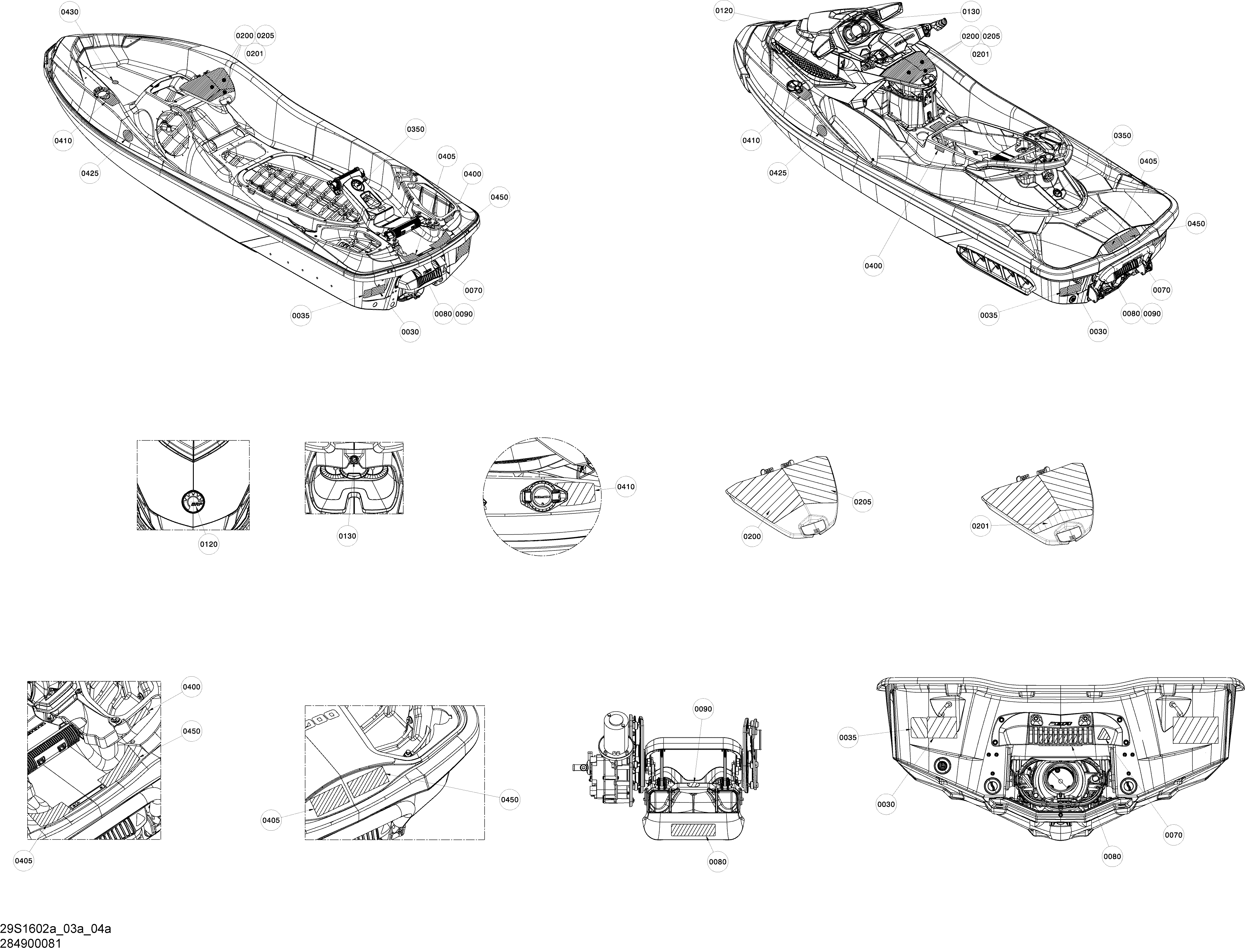

09- Decals - A для BRP RXT - 2016
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0035219904387 Notice Decal, RinceNotice Decal, Rince
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219904804 Pictogram Foot Gate LabelPictogram Foot Gate Label
-
0120516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
0130516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
0200219904763 Principal Label LeftPrincipal Label Left
-
0201219904764 Sport Model Label SuperiorSport Model Label Superior
-
0205219904765 Principal Label RightPrincipal Label Right
-
0350516006887 BRP Logo, 48 mm. Model without SuspensionBRP Logo, 48 mm. Model without Suspension
-
0350516006888 BRP Logo, 68 mm. Model with SuspensionBRP Logo, 68 mm. Model with Suspension
-
0400219903082 Warning Decal, Battery. Model without SuspensionWarning Decal, Battery. Model without Suspension
-
0400219903082 Warning Decal, Battery. Model with SuspensionWarning Decal, Battery. Model with Suspension
-
0405219904272 Decal, ExemptionDecal, Exemption
-
0410219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0430219904805 Pictogram No Objects LabelPictogram No Objects Label
-
0450219904252 Warning LabelWarning Label
