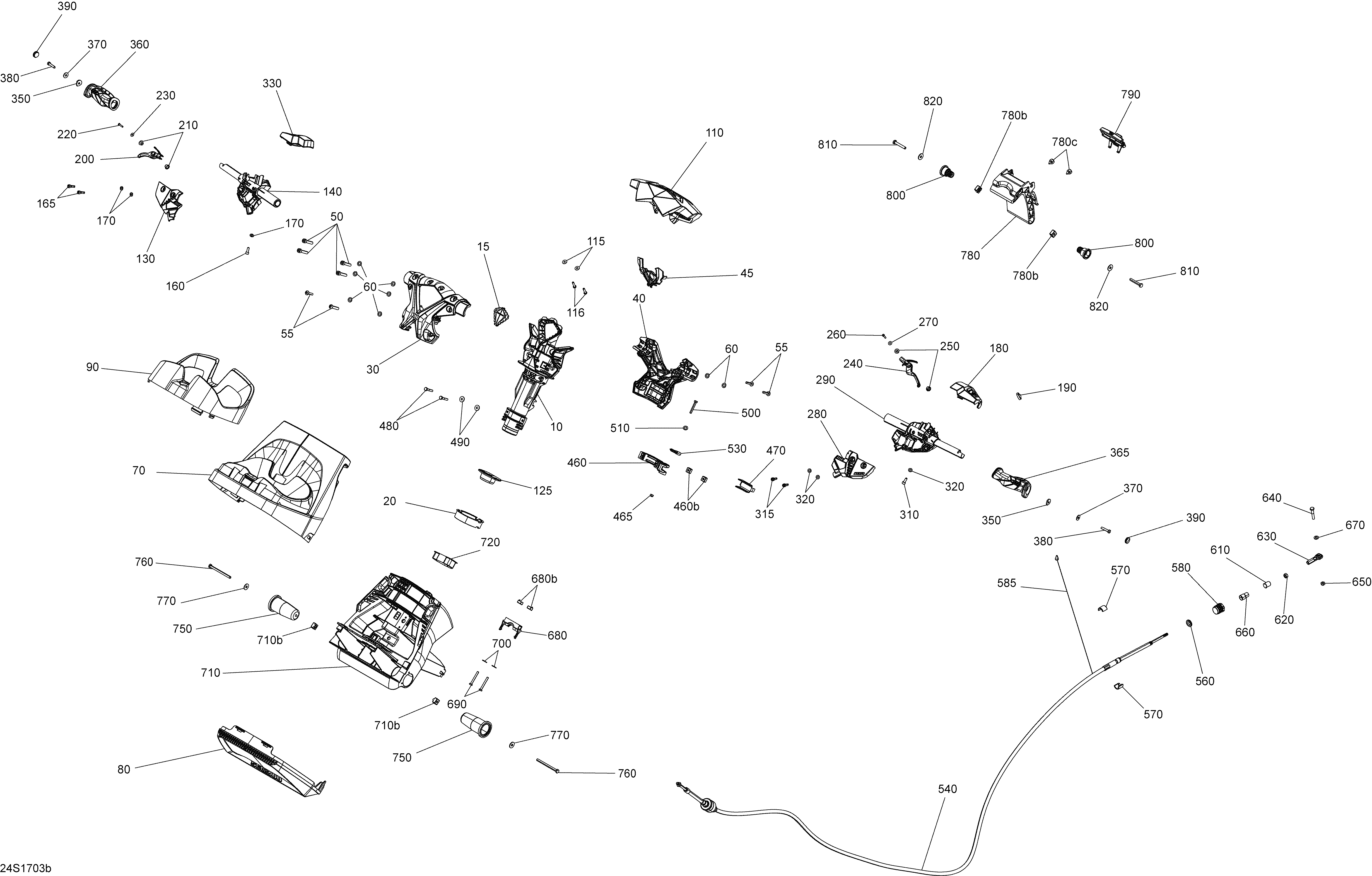

07- Steering - 300 для BRP RXT - 2017
-
№АртикулНазвание
-
10277001685 Steering ColumnSteering Column
-
15277001919 Aesthetic CapAesthetic Cap
-
20277001653 Wear RingWear Ring
-
30277001909 Front Extension BlocFront Extension Bloc
-
40277001926 Rear Extension BlockRear Extension Block
-
45277001920 Radio Frequency Key SupportRadio Frequency Key Support
-
50205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
55250000845 Torx-Button M/S M8 X 40 Stlss S.GriTorx-Button M/S M8 X 40 Stlss S.Gri
-
60234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
70277001953 Gauge SupportGauge Support
-
80277001613 Gauge Support CoverGauge Support Cover
-
90277001630 Gauge Trim, BlackGauge Trim, Black
-
110277001683 Handle PadHandle Pad
-
115234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
116211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
125293720086 GrommetGrommet
-
130277001688 Upper Housing RHUpper Housing RH
-
140277001966 Lower Housing RHLower Housing RH
-
160205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
165205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
170234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
180277001794 Housing Cover LHHousing Cover LH
-
190277001887 Red Knob SwitchRed Knob Switch
-
200277001944 Throttle HandleThrottle Handle
-
210293900091 BushingBushing
-
220241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
230234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse HandleReverse Handle
-
250293900091 BushingBushing
-
260241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
270234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
280277001686 Upper Housing LHUpper Housing LH
-
290277001965 Lower Housing LHLower Housing LH
-
310205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
315205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
320234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
330277001718 RH Housing CoverRH Housing Cover
-
350277001863 Insert Grip HandleInsert Grip Handle
-
360277001946 Handle Grip RHHandle Grip RH
-
365277001958 Handle Grip LHHandle Grip LH
-
370234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
380250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
390277000203 Black CapBlack Cap
-
460>460b277002019 Support Ass'y. Includes 460 to 460bSupport Ass'y. Includes 460 to 460b
-
460b269501166 Nut Housing Ass'yNut Housing Ass'y
-
465232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277001180 Ball JointBall Joint
-
540277001602 Steering CableSteering Cable
-
560293830063 Rubber WasherRubber Washer
-
570277001527 Half RingHalf Ring
-
580277001729 Steering Cable LockSteering Cable Lock
-
585293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
610277001582 Small BootSmall Boot
-
620211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
630277000775 Ball JointBall Joint
-
640207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
660277001583 Large BootLarge Boot
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680>680b277001655 Thrust Support Ass'y. Includes 680 to 680bThrust Support Ass'y. Includes 680 to 680b
-
680b269501166 Nut Housing Ass'yNut Housing Ass'y
-
690207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
700234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
710>710b277001942 Steering Support. Includes 710 to 710bSteering Support. Includes 710 to 710b
-
710b269501166 Nut Housing Ass'yNut Housing Ass'y
-
720277001741 Wear RingWear Ring
-
750277001605 Steering Support PivotSteering Support Pivot
-
760207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
780>780c277001658 Handle Ass'y. Includes 780 to 780cHandle Ass'y. Includes 780 to 780c
-
780b269501166 Nut Housing Ass'yNut Housing Ass'y
-
780c293830005 Rubber BumperRubber Bumper
-
790277001616 LockLock
-
800277001652 PivotPivot
-
810207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
820234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
