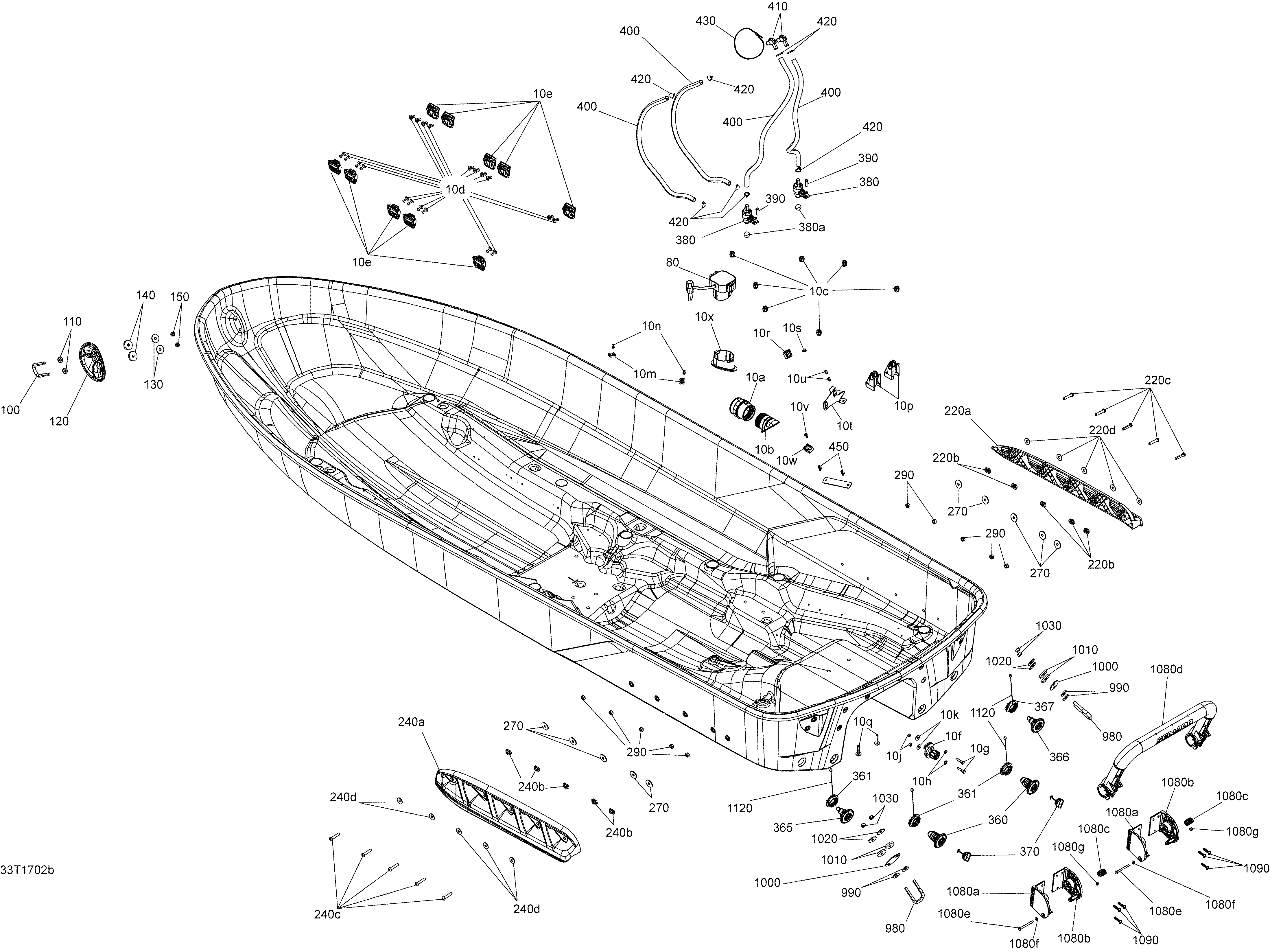

09- Hull - All Models для BRP RXT - 2017
-
№АртикулНазвание
-
10a293450355 Hull InsertHull Insert
-
10b293450309 Outer Hull InsertOuter Hull Insert
-
10d293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e270000933 Strap RetainingStrap Retaining
-
10f277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
10g207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
10h250200114 Sealing WasherSealing Washer
-
10j232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10k234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10m293750026 Tie Rap MountTie Rap Mount
-
10n293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
10p270000988 Strap AnchorStrap Anchor
-
10q250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
10r270000854 Strap Anchor. Model RXT-X 300, RXT-X RS 300Strap Anchor. Model RXT-X 300, RXT-X RS 300
-
10s293150043 Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300
-
10t270000976 Strap Anchor. Model RXT-X 300, RXT-X RS 300Strap Anchor. Model RXT-X 300, RXT-X RS 300
-
10u293150043 Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300
-
10v270000854 Strap Anchor. Model RXT-X 300, RXT-X RS 300Strap Anchor. Model RXT-X 300, RXT-X RS 300
-
10w293150043 Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300Pop Rivet 3/16''. Model RXT-X 300, RXT-X RS 300
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
120292001867 Bow CupBow Cup
-
130250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
140293830037 Rubber WasherRubber Washer
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220a292001871 RH Sponson. Model RXT-X 300, RXT-X RS 300RH Sponson. Model RXT-X 300, RXT-X RS 300
-
220a292001878 RH Sponson. Model RXT 260, RXT 260 RSRH Sponson. Model RXT 260, RXT 260 RS
-
220b292001873 RH Spacer Sponson. Model RXT-X 300, RXT-X RS 300RH Spacer Sponson. Model RXT-X 300, RXT-X RS 300
-
220b292001349 Spacer Sponson. Model RXT 260, RXT 260 RSSpacer Sponson. Model RXT 260, RXT 260 RS
-
220c250000572 Torx-Head Screw M8 X 35. Model RXT-X 300, RXT-X RS 300Torx-Head Screw M8 X 35. Model RXT-X 300, RXT-X RS 300
-
220c250000452 Torx Screw M8 X 40, Stainless. Model RXT 260, RXT 260 RSTorx Screw M8 X 40, Stainless. Model RXT 260, RXT 260 RS
-
220d234082600 Flat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RSFlat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RS
-
220e292001471 Square Head Stud. Model RXT-X 300, RXT-X RS 300Square Head Stud. Model RXT-X 300, RXT-X RS 300
-
220f292001503 Push Nut. Model RXT-X 300, RXT-X RS 300Push Nut. Model RXT-X 300, RXT-X RS 300
-
240a292001872 Sponson LH. Model RXT-X 300, RXT-X RS 300Sponson LH. Model RXT-X 300, RXT-X RS 300
-
240a292001877 LH Sponson. Model RXT 260, RXT 260 RSLH Sponson. Model RXT 260, RXT 260 RS
-
240b292001874 Spacer Sponson LH. Model RXT-X 300, RXT-X RS 300Spacer Sponson LH. Model RXT-X 300, RXT-X RS 300
-
240b292001349 Spacer Sponson. Model RXT 260, RXT 260 RSSpacer Sponson. Model RXT 260, RXT 260 RS
-
240c250000572 Torx-Head Screw M8 X 35. Model RXT-X 300, RXT-X RS 300Torx-Head Screw M8 X 35. Model RXT-X 300, RXT-X RS 300
-
240c250000452 Torx Screw M8 X 40, Stainless. Model RXT 260, RXT 260 RSTorx Screw M8 X 40, Stainless. Model RXT 260, RXT 260 RS
-
240d234082600 Flat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RSFlat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RS
-
240e292001471 Square Head Stud. Model RXT-X 300, RXT-X RS 300Square Head Stud. Model RXT-X 300, RXT-X RS 300
-
240f292001503 Push Nut. Model RXT-X 300, RXT-X RS 300Push Nut. Model RXT-X 300, RXT-X RS 300
-
270250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
290232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360292001580 Drain Ass'yDrain Ass'y
-
361292001825 Plastic NutPlastic Nut
-
365292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
366292001317 Drain Neck Ass'y. Model RXT-X 300, RXT-X RS 300. Plug 292001352Drain Neck Ass'y. Model RXT-X 300, RXT-X RS 300. Plug 292001352
-
367292001825 Plastic Nut. Model RXT-X 300, RXT-X RS 300Plastic Nut. Model RXT-X 300, RXT-X RS 300
-
370292001583 Plug Ass'yPlug Ass'y
-
380>380a292001636 Bailer Pick-up Ass'y. Includes 380 to 380aBailer Pick-up Ass'y. Includes 380 to 380a
-
380a293830080 Floating BallFloating Ball
-
390211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
400275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
450293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
980292000933 U-ClampU-Clamp
-
990279000164 Flat WasherFlat Washer
-
1000291001386 Black Finition PlateBlack Finition Plate
-
1010293830037 Rubber WasherRubber Washer
-
1020250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1030232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1080a292001509 A Section Support. Model RXT 260, RXT 260 RSA Section Support. Model RXT 260, RXT 260 RS
-
1080b292001510 B Section Support. Model RXT 260, RXT 260 RSB Section Support. Model RXT 260, RXT 260 RS
-
1080c292001259 Spring. Model RXT 260, RXT 260 RSSpring. Model RXT 260, RXT 260 RS
-
1080d292001204 Overmolded Bar. Model RXT 260, RXT 260 RSOvermolded Bar. Model RXT 260, RXT 260 RS
-
1080e207066560 Hex. Screw M6 x 65. Model RXT 260, RXT 260 RSHex. Screw M6 x 65. Model RXT 260, RXT 260 RS
-
1080f234061600 Flat Washer M6, Stainless. Model RXT 260, RXT 260 RSFlat Washer M6, Stainless. Model RXT 260, RXT 260 RS
-
1080g232561600 Hex. Elastic Stop Nut M6. Model RXT 260, RXT 260 RSHex. Elastic Stop Nut M6. Model RXT 260, RXT 260 RS
-
1090250000828 Screw Torx M6.81 X 30. Model RXT 260, RXT 260 RSScrew Torx M6.81 X 30. Model RXT 260, RXT 260 RS
-
1120293800066 Sealant, Loctite 5900, 300 ml. Model RXT 260, RXT 260 RSSealant, Loctite 5900, 300 ml. Model RXT 260, RXT 260 RS
