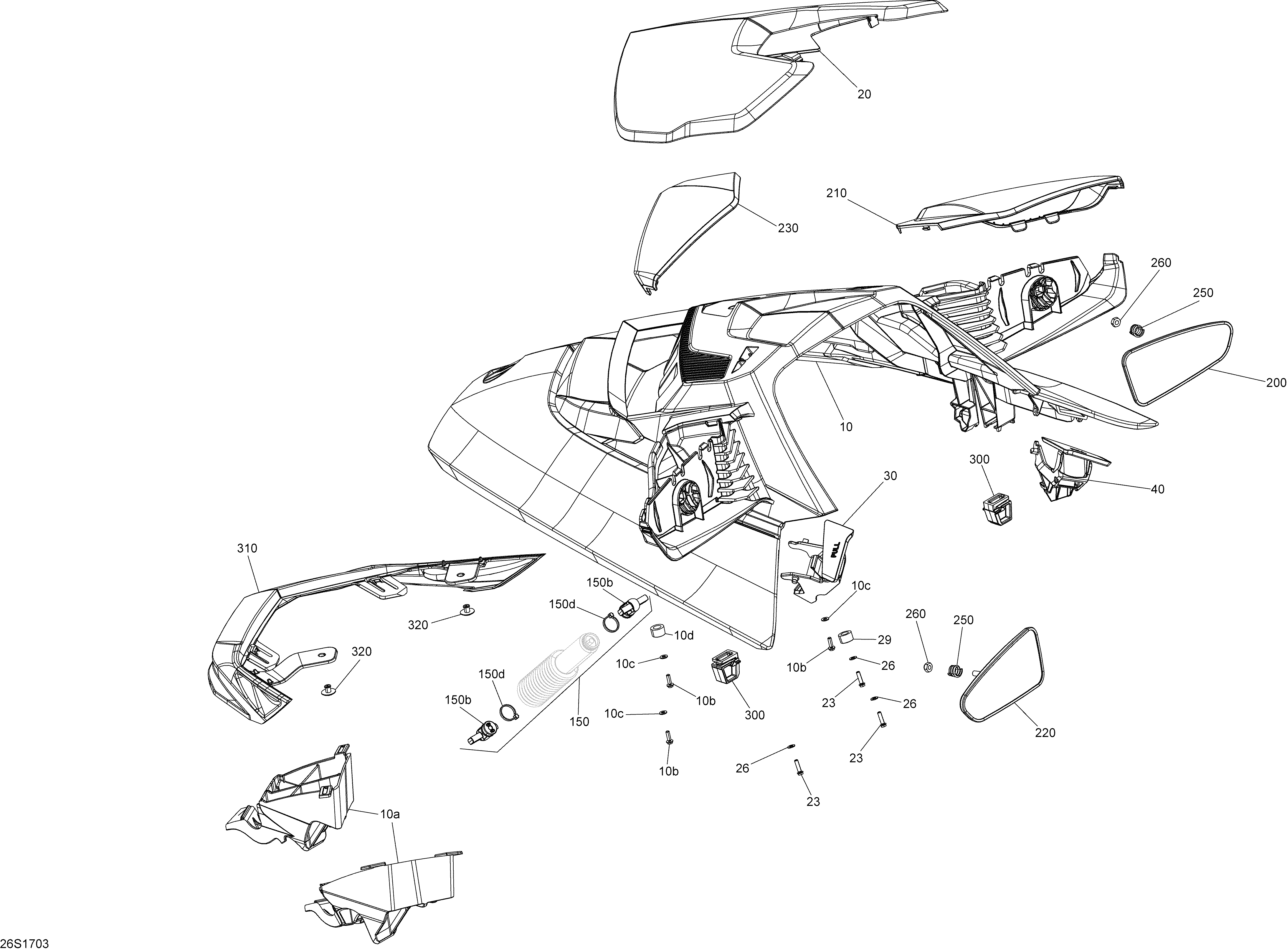

09- Front Cover - All Models для BRP RXT - 2017
-
№АртикулНазвание
-
10>10d269502311 Dragon Red / Black Hood Ass'y. Includes 10 to 10dDragon Red / Black Hood Ass'y. Includes 10 to 10d
-
10>10d269502314 Hyper Silver Hood Ass'y. Includes 10 to 10dHyper Silver Hood Ass'y. Includes 10 to 10d
-
10>10d269502315 Black Hood Ass'y. Includes 10 to 10dBlack Hood Ass'y. Includes 10 to 10d
-
10a269502090 Red Front CosmeticRed Front Cosmetic
-
10a269502089 Black Front CosmeticBlack Front Cosmetic
-
10b241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
10c234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10d291001203 SpacerSpacer
-
20269502209 Black Upper Front DeflectorBlack Upper Front Deflector
-
20269502250 Yellow Front DeflectorYellow Front Deflector
-
23241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
29291001203 SpacerSpacer
-
30269501964 Left LatchLeft Latch
-
40269501965 Right LatchRight Latch
-
150>150d269501664 Shock Absorber. Includes 150 to 150dShock Absorber. Includes 150 to 150d
-
150b269501717 Shock End PieceShock End Piece
-
150d293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
200269501920 RH Mirror Ass'yRH Mirror Ass'y
-
210269502204 Black RH Mirror HousingBlack RH Mirror Housing
-
210269502305 Blue Mirror Housing RHBlue Mirror Housing RH
-
220269501918 LH Mirror Ass'yLH Mirror Ass'y
-
230269502203 Black LH Mirror HousingBlack LH Mirror Housing
-
230269502306 Blue Mirror Housing LHBlue Mirror Housing LH
-
250269500453 Mirror SpringMirror Spring
-
260232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
300293830135 Rubber BumperRubber Bumper
-
310269501756 Black Front CosmeticBlack Front Cosmetic
-
310269502307 Blue Front CosmeticBlue Front Cosmetic
-
320293150067 RivetRivet
