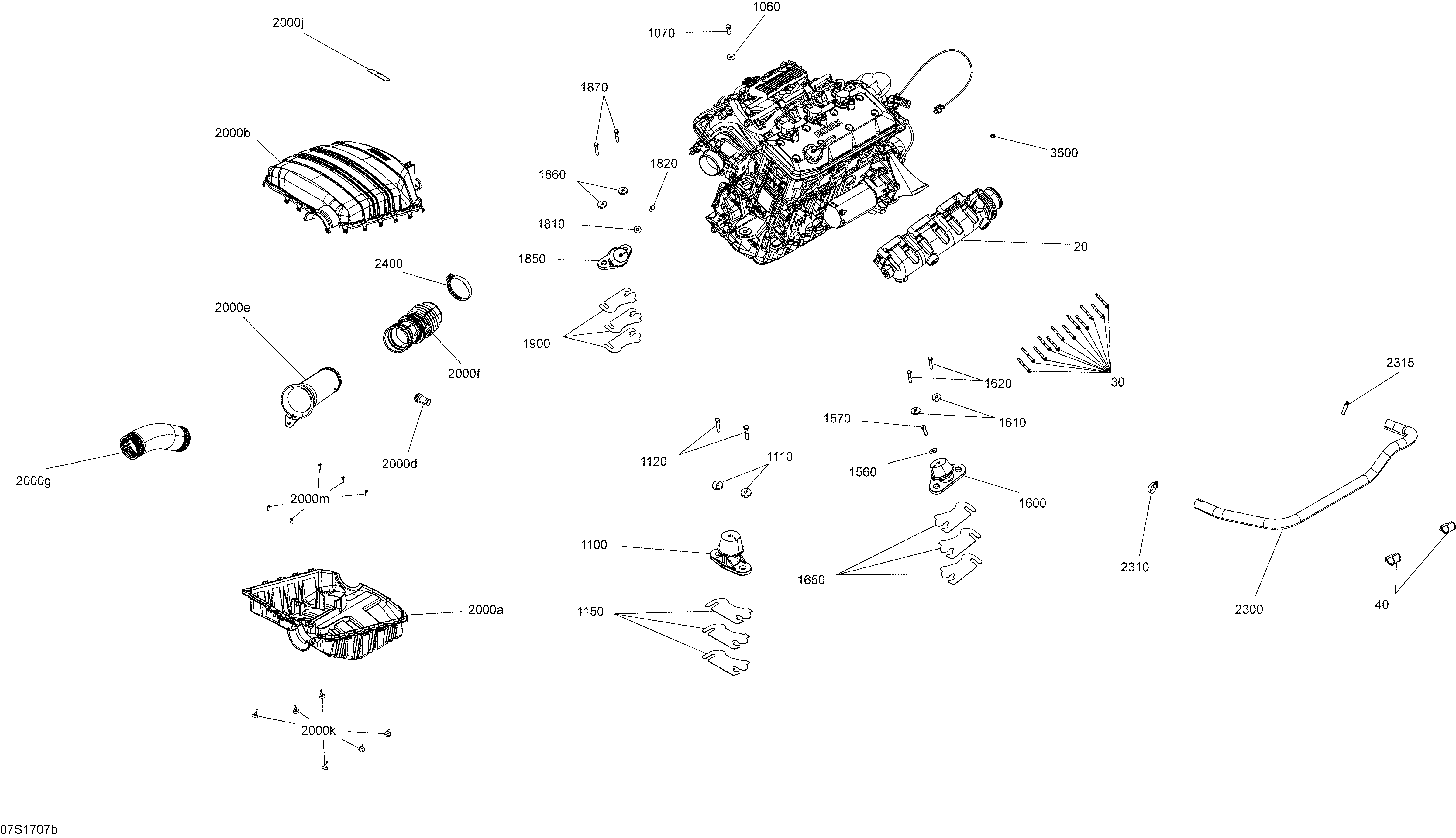

01- Engine - All Models для BRP Wake - 2017
-
№АртикулНазвание
-
20274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
30420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
40275500664 RetainerRetainer
-
1060234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1070207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1100270000885 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1560234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1570207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1600270000882 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1810234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1820207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1850270000882 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000354 Airbox BaseAirbox Base
-
2000b273000371 Airbox CoverAirbox Cover
-
2000d273000234 BreatherBreather
-
2000e273000358 Intake HoseIntake Hose
-
2000f273000292 Hose ConnectorHose Connector
-
2000g273000290 Air Silencer HoseAir Silencer Hose
-
2000j219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000k708000759 Rubber StopperRubber Stopper
-
2000m250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000949 Formed HoseFormed Hose
-
2310293650051 Tridon Gear ClampTridon Gear Clamp
-
2315293650051 Tridon Gear ClampTridon Gear Clamp
-
2400293650179 Tridon ClampTridon Clamp
-
3500293750002 Tie-Rap 142 mmTie-Rap 142 mm
