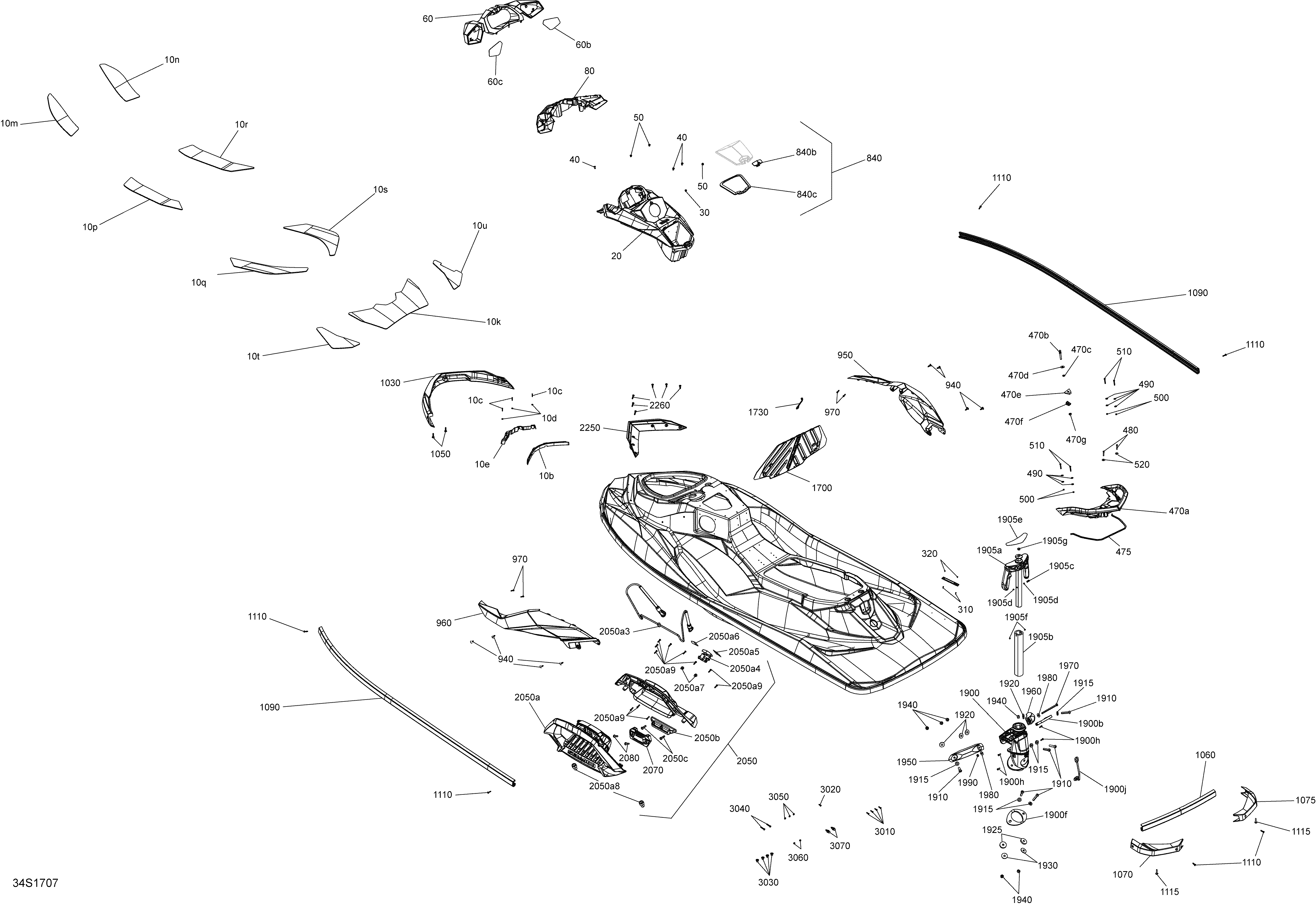

09- Body - All Models для BRP Wake - 2017
-
№АртикулНазвание
-
10b291003897 Deck NoseDeck Nose
-
10c241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
10d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10e291003704 Bumper SupportBumper Support
-
10k291003096 Swim Platform CarpetSwim Platform Carpet
-
10m291003058 Front Carpet LHFront Carpet LH
-
10n291003059 Front Carpet RHFront Carpet RH
-
10p291003060 Front Center Carpet LHFront Center Carpet LH
-
10q291003329 Rear Center Carpet LHRear Center Carpet LH
-
10r291003061 Front Center Carpet RHFront Center Carpet RH
-
10s291003330 Rear Center Carpet RHRear Center Carpet RH
-
10t291003062 Rear Carpet LHRear Carpet LH
-
10u291003063 Rear Carpet RHRear Carpet RH
-
20291004276 ConsoleConsole
-
30293830005 Rubber BumperRubber Bumper
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
50293150186 Pop Rivet 3/16Pop Rivet 3/16
-
60>60c291004264 Manta Green Bezel Ass'y. Includes 60 to 60cManta Green Bezel Ass'y. Includes 60 to 60c
-
60b291003090 Mirror RHMirror RH
-
60c291003091 Mirror LHMirror LH
-
80291004271 Mirror SupportMirror Support
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
470a291004627 Manta Green-Rear HandleManta Green-Rear Handle
-
470b291003877 Stud SeatStud Seat
-
470c232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470d234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470e269002125 Seat Stud SpacerSeat Stud Spacer
-
470f269002126 Seat Stud SupportSeat Stud Support
-
470g232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
475293250218 GasketGasket
-
480207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
850>840c269502140 Glove Door Ass'yGlove Door Ass'y
-
840b264000091 Latch, BlackLatch, Black
-
840c293250236 GasketGasket
-
940293730006 Black DartBlack Dart
-
950269502169 Blue Belize RH Cosmetic PanelBlue Belize RH Cosmetic Panel
-
960269502170 Blue Belize LH Cosmetic PanelBlue Belize LH Cosmetic Panel
-
970211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
1030291004277 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004451 Side BumperSide Bumper
-
1070291004278 Corner BumperCorner Bumper
-
1075291004279 Corner BumperCorner Bumper
-
1090291004451 Side BumperSide Bumper
-
1110250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1115250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1700291004572 Divider Ass'yDivider Ass'y
-
1730269502111 Holding StrapHolding Strap
-
1900>1900j291002553 Support Sub-assemblySupport Sub-assembly
-
1900b293250183 StrapStrap
-
1900f293250151 SealSeal
-
1900h241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
1900j269501299 StrapStrap
-
1905a291002812 Molded HandleMolded Handle
-
1905b291002642 Aluminum PostAluminum Post
-
1905c269501651 Ball SpringBall Spring
-
1905d293350062 Ball 1/4''Ball 1/4''
-
1905e219903137 Warning LabelWarning Label
-
1905f293150167 Type ''U'' Metallic Drive ScrewType ''U'' Metallic Drive Screw
-
1905g291001519 Bumper Plug, BlackBumper Plug, Black
-
1910250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
1915293050001 Flat WasherFlat Washer
-
1920234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1925293830037 Rubber WasherRubber Washer
-
1930250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1940232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1950291002711 LH Lateral ArmLH Lateral Arm
-
1960291002712 RH Lateral ArmRH Lateral Arm
-
1970230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
1980234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1990232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2050>2050c291003101 Board Support KitBoard Support Kit
-
2050a291003101 Board Support KitBoard Support Kit
-
2050a3291002979 Elastic Rope Ass'yElastic Rope Ass'y
-
2050a4291002980 LatchLatch
-
2050a5219903228 Warning WAKEWarning WAKE
-
2050a6219903240 WAKE-PRO DecalWAKE-PRO Decal
-
2050a7293830005 Rubber BumperRubber Bumper
-
2050a8293830119 Rubber BufferRubber Buffer
-
2050a9250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2050b291002864 Lower AnchorageLower Anchorage
-
2050c250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
2070291003104 Upper AnchorageUpper Anchorage
-
2080250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
2250291004273 Body DeflectorBody Deflector
-
2260250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
3010250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
3020250000735 Torx Screw K40 X 16Torx Screw K40 X 16
-
3030293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3040207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
3050211200035 Flat WasherFlat Washer
-
3060232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
3070293150089 Tuflok Plastic RivetTuflok Plastic Rivet
