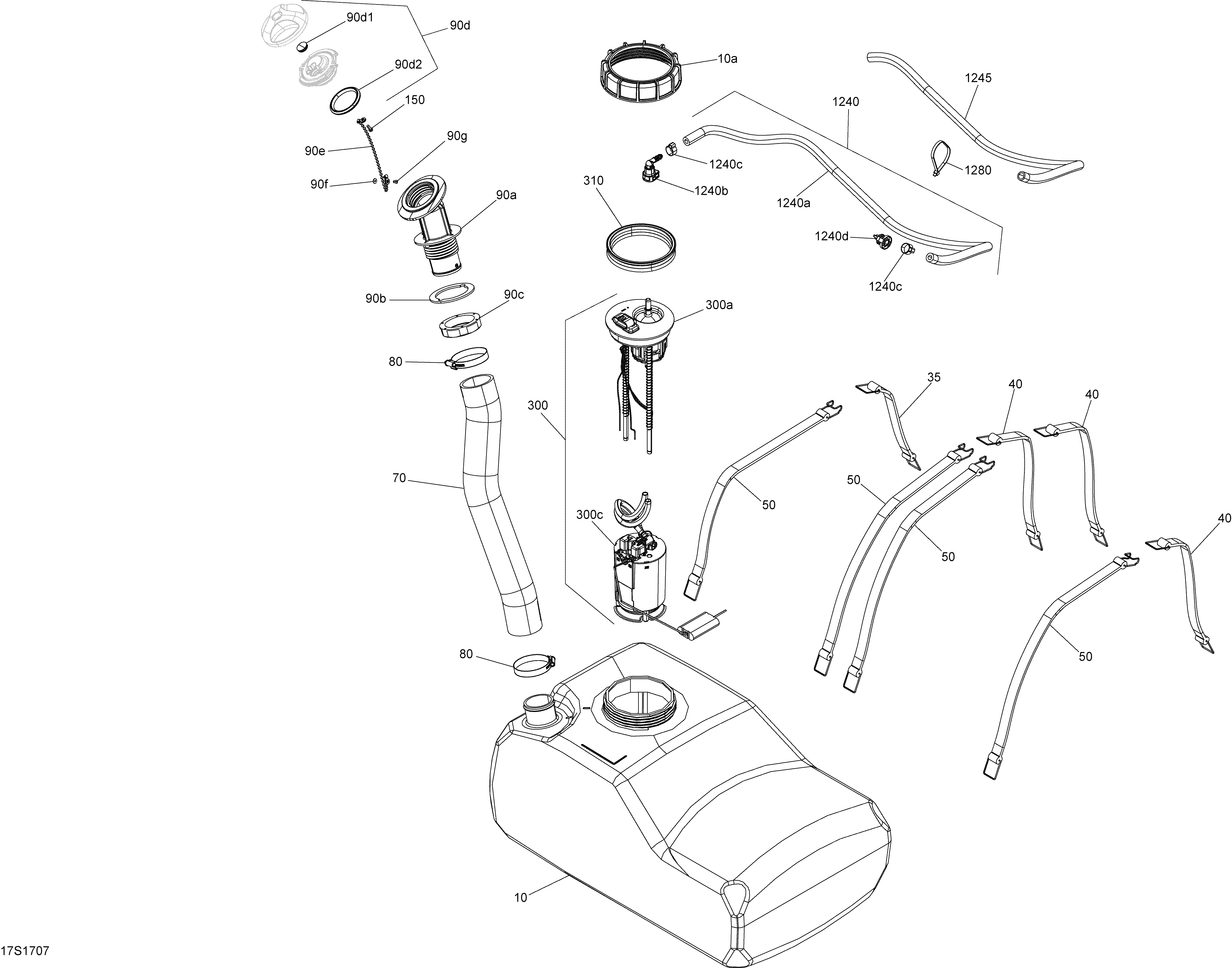

02- Fuel System - All Models для BRP Wake - 2017
-
№АртикулНазвание
-
10>10a275500944 Tank-Fuel. Includes 10 to 10aTank-Fuel. Includes 10 to 10a
-
10a250100062 Special Nut M130Special Nut M130
-
10a250100062 Special Nut M130Special Nut M130
-
35293850087 Fuel Tank StrapFuel Tank Strap
-
40293850093 StrapStrap
-
50293850101 Fuel Tank StrapFuel Tank Strap
-
70275500918 HoseHose
-
80293650081 Norma ClampNorma Clamp
-
90A275500845 Filler NeckFiller Neck
-
90b293250029 GasketGasket
-
90c211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90d>90d2275500975 Fuel Cap Ass'y. Includes 90d to 90d2Fuel Cap Ass'y. Includes 90d to 90d2
-
90d1293000034 Snap Cap, BlackSnap Cap, Black
-
90d2293250417 GasketGasket
-
90e275500972 Fuel Cap ChainFuel Cap Chain
-
90f234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
90g390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
150241140060 Screw K40 X 10Screw K40 X 10
-
300>300c275500850 Fuel Pump Ass'y. Includes 300 to 300cFuel Pump Ass'y. Includes 300 to 300c
-
300a275500780 Sensor LeverSensor Lever
-
300c270600108 Fuel FilterFuel Filter
-
310293250173 GasketGasket
-
1240a296000331 BoyauBoyau
-
1240b275500921 Quick DisconnectQuick Disconnect
-
1240c293650053 Crimp ClampCrimp Clamp
-
1240d293710105 Elbow Fitting 90°Elbow Fitting 90°
-
1245415080000 Tubing 16 mmTubing 16 mm
-
1245415080000 Tubing 16 mmTubing 16 mm
-
1280293750008 Tie-Rap 350 mmTie-Rap 350 mm
