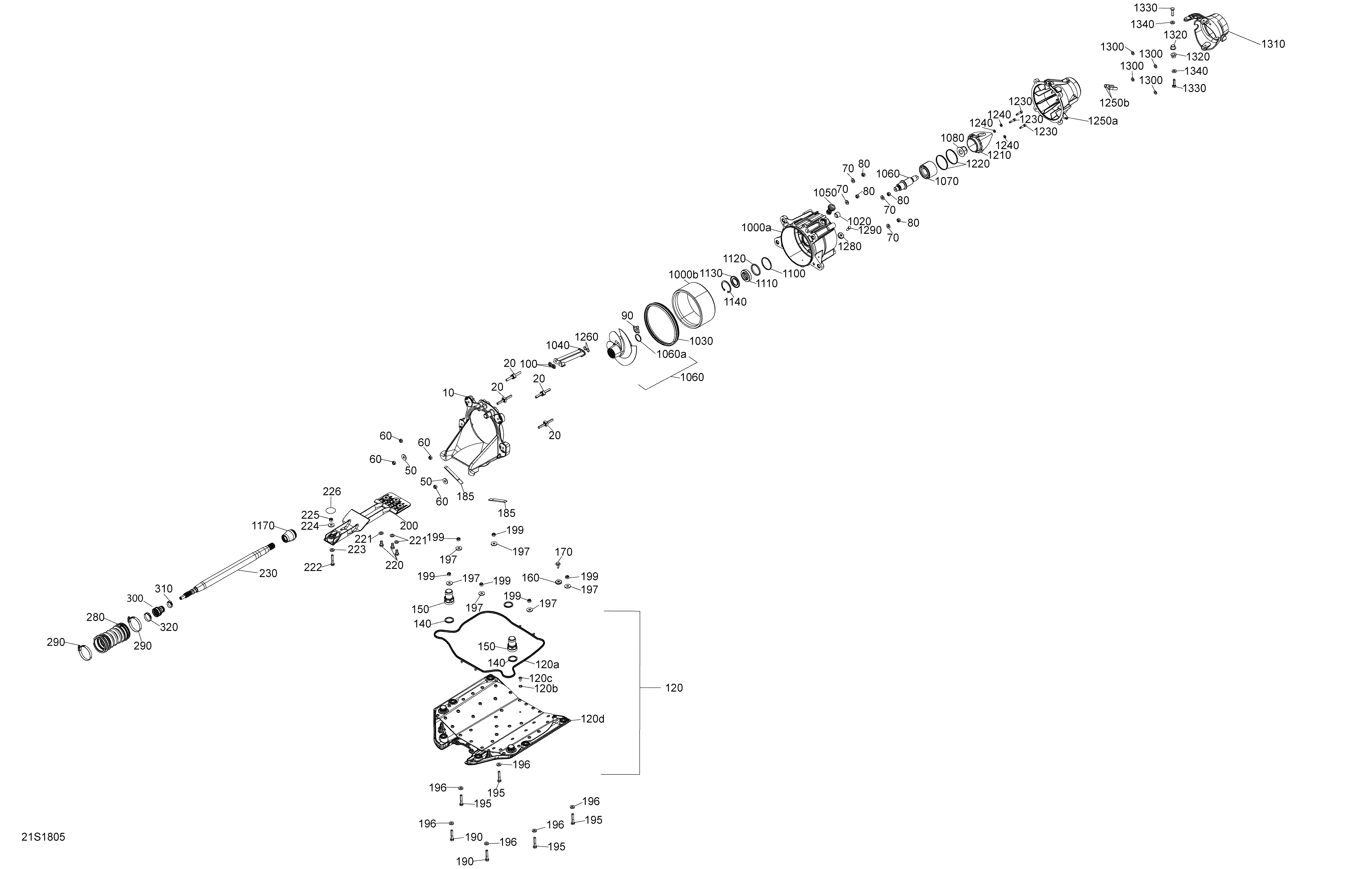

05- Propulsion GTS - 90 для BRP 1- GTS 90 - 2018
-
№АртикулНазвание
-
10271001964 Pump SupportPump Support
-
20250300046 Square StudSquare Stud
-
50279000336 Flat WasherFlat Washer
-
60232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
70293050001 Flat WasherFlat Washer
-
80232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
90271002029 ReducerReducer
-
100293250084 Watertight SealWatertight Seal
-
120271001860 Riding Plate Ass'y. Includes 120 to 120dRiding Plate Ass'y. Includes 120 to 120d
-
120a293250235 SealSeal
-
120b250200114 Sealing WasherSealing Washer
-
120c250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
120d250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
140293300121 O-RingO-Ring
-
150293710166 Straight FittingStraight Fitting
-
160271001920 Anode ZincAnode Zinc
-
170250000965 Hex Screw M6 X 20Hex Screw M6 X 20
-
185293250087 Gasket, NeopreneGasket, Neoprene
-
190250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
195250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
196293050001 Flat WasherFlat Washer
-
197279000336 Flat WasherFlat Washer
-
199232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
200271001969 Pump GratePump Grate
-
220207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
221234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
222250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
223293050001 Flat WasherFlat Washer
-
224279000336 Flat WasherFlat Washer
-
225232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
226293830047 Protector DiskProtector Disk
-
230271001934 DriveshaftDriveshaft
-
280271001921 BellowBellow
-
290293650079 Norma ClampNorma Clamp
-
300>320295501148 Protector Sleeve KitProtector Sleeve Kit
-
310509000442 Oeticker Gear Clamp, 25.6-706ROeticker Gear Clamp, 25.6-706R
-
320509000181 Oetiker Gear ClampOetiker Gear Clamp
-
1000a271002018 Housing ImpellerHousing Impeller
-
1000b267000897 Wear RingWear Ring
-
1020267000469 Plug Plastic, BlackPlug Plastic, Black
-
1030293200087 Neoprene SealNeoprene Seal
-
1040271000785 Water OutletWater Outlet
-
1050267000282 PlugPlug
-
1060267000388 Impeller ShaftImpeller Shaft
-
1070267000900 Angled BearingAngled Bearing
-
1080250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
1100293300090 O-RingO-Ring
-
1110293200086 Oil SealOil Seal
-
1120271001393 SpacerSpacer
-
1130293200089 Oil SealOil Seal
-
1140293370038 CirclipCirclip
-
1160267000919 Impeller Ass'y. Includes 1160 to 1160aImpeller Ass'y. Includes 1160 to 1160a
-
1160a293300044 O-RingO-Ring
-
1170267000206 Impeller BootImpeller Boot
-
1210267000428 Impeller CoverImpeller Cover
-
1220293300086 O-RingO-Ring
-
1230205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
1240234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1250a267000789 VenturiVenturi
-
1250b271001885 Siphon TubeSiphon Tube
-
1260293300013 O-RingO-Ring
-
1270250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
1280271001920 Anode ZincAnode Zinc
-
1290250000965 Hex Screw M6 X 20Hex Screw M6 X 20
-
1300234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1310267000745 Steer Nozzle, BlackSteer Nozzle, Black
-
1320293900001 Venturi BushingVenturi Bushing
-
1330250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
1340293050001 Flat WasherFlat Washer
