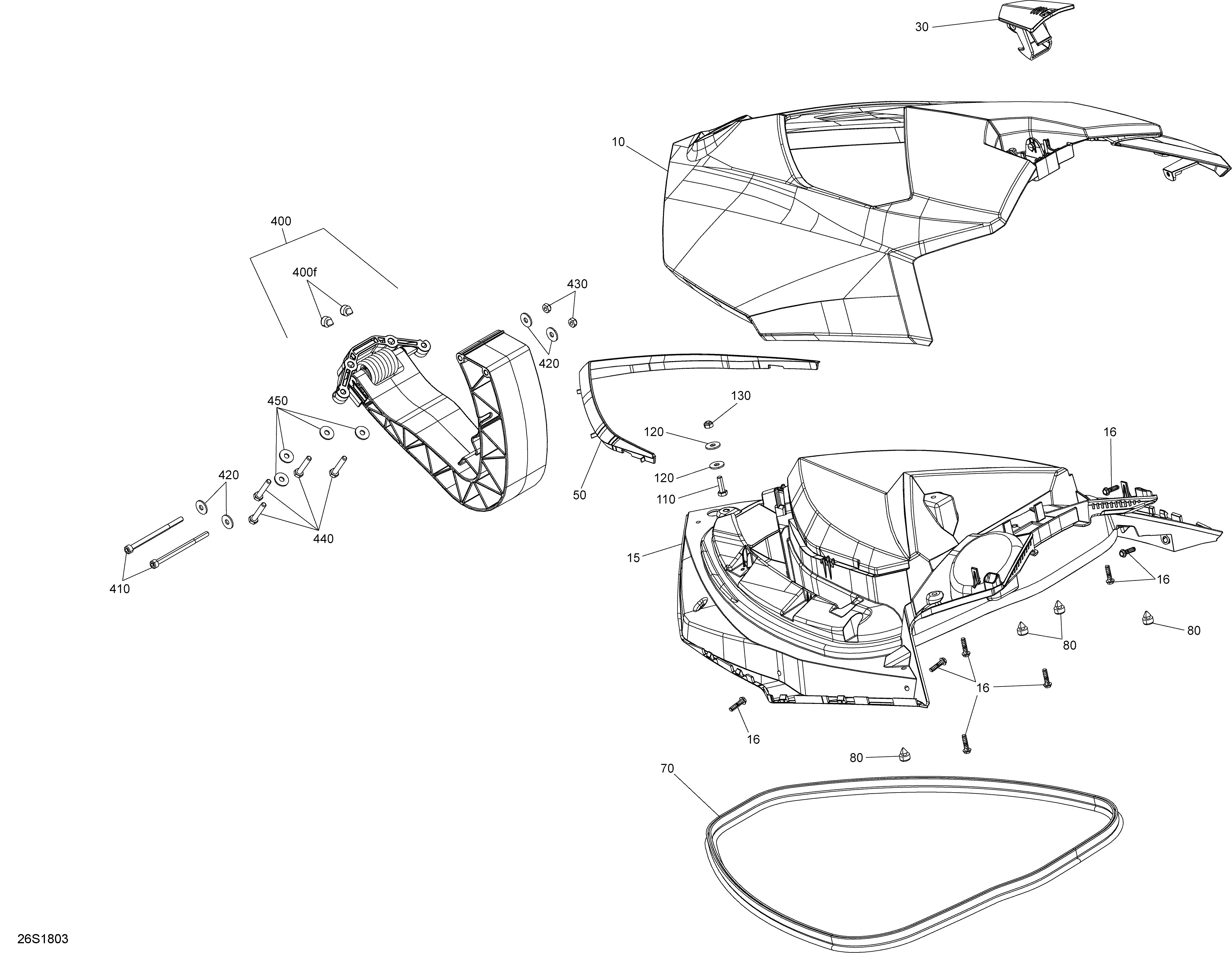

09- Front Cover GTS - 900 HO ACE для BRP 1- GTS 90 - 2018
-
№АртикулНазвание
-
10269502355 Black, Storage CoverBlack, Storage Cover
-
15269502196 Storage CoverStorage Cover
-
16241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
30269700142 Latch LeverLatch Lever
-
50269501859 Black Front MouldingBlack Front Moulding
-
70293250047 Neoprene SealNeoprene Seal
-
80293830005 Rubber BumperRubber Bumper
-
110207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
120234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
130232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
400269501944 Hinge Ass'y. Includes 400 to 400fHinge Ass'y. Includes 400 to 400f
-
400f293830005 Rubber BumperRubber Bumper
-
410205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
420234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
430232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
440207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
450234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
