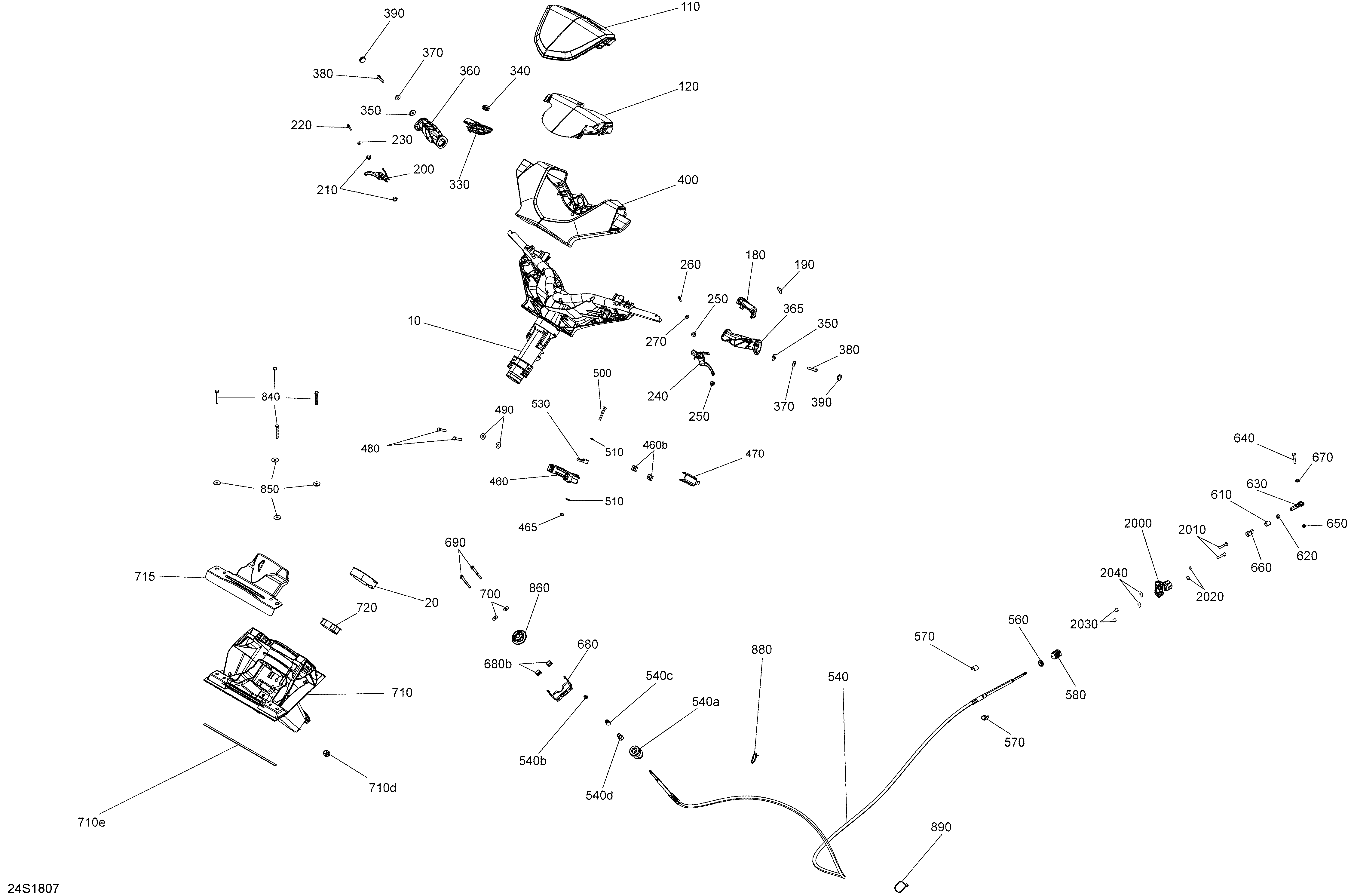

07- Steering GTS - 900 HO ACE для BRP 1- GTS 90 - 2018
-
№АртикулНазвание
-
10277001963 Steering ColumnSteering Column
-
20277001653 Wear RingWear Ring
-
110277001769 White Steering PadWhite Steering Pad
-
120277001921 Handle Bar FoamHandle Bar Foam
-
180277001860 Housing Cover LHHousing Cover LH
-
190277001887 Red Knob SwitchRed Knob Switch
-
200277001944 Throttle HandleThrottle Handle
-
210293900091 BushingBushing
-
220241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
230234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
330277001861 Housing Cover RHHousing Cover RH
-
350277001863 Insert Grip HandleInsert Grip Handle
-
360277001946 Handle Grip RHHandle Grip RH
-
365277001958 Handle Grip LHHandle Grip LH
-
370234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
380250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
390277000203 Black CapBlack Cap
-
400277001970 Steering CoverSteering Cover
-
460277002019 Support Ass'y. Includes 460 to 460bSupport Ass'y. Includes 460 to 460b
-
460b269501166 Nut Housing Ass'yNut Housing Ass'y
-
465232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277001180 Ball JointBall Joint
-
540277001578 Steering Cable Ass'y. Includes 540 to 540dSteering Cable Ass'y. Includes 540 to 540d
-
540a277000782 Ajustment KnobAjustment Knob
-
540b211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540c277001582 Small BootSmall Boot
-
540d277001583 Large BootLarge Boot
-
560293830063 Rubber WasherRubber Washer
-
570277001527 Half RingHalf Ring
-
580277001729 Steering Cable LockSteering Cable Lock
-
610277001582 Small BootSmall Boot
-
620211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
630277000775 Ball JointBall Joint
-
640207663560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
660277001583 Large BootLarge Boot
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680277001655 Thrust Support Ass'y. Includes 680 to 680bThrust Support Ass'y. Includes 680 to 680b
-
680b269501166 Nut Housing Ass'yNut Housing Ass'y
-
690207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
700234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
710277001971 Support Ass'y. Includes 710 to 710eSupport Ass'y. Includes 710 to 710e
-
710d517302716 CapCap
-
710e293250008 GasketGasket
-
715293000116 DeflectorDeflector
-
720277001741 Wear RingWear Ring
-
840245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
850250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
860293720090 Cable GrommetCable Grommet
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
890293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2000277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
2010207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2020250200114 Sealing WasherSealing Washer
-
2030234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2040232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
