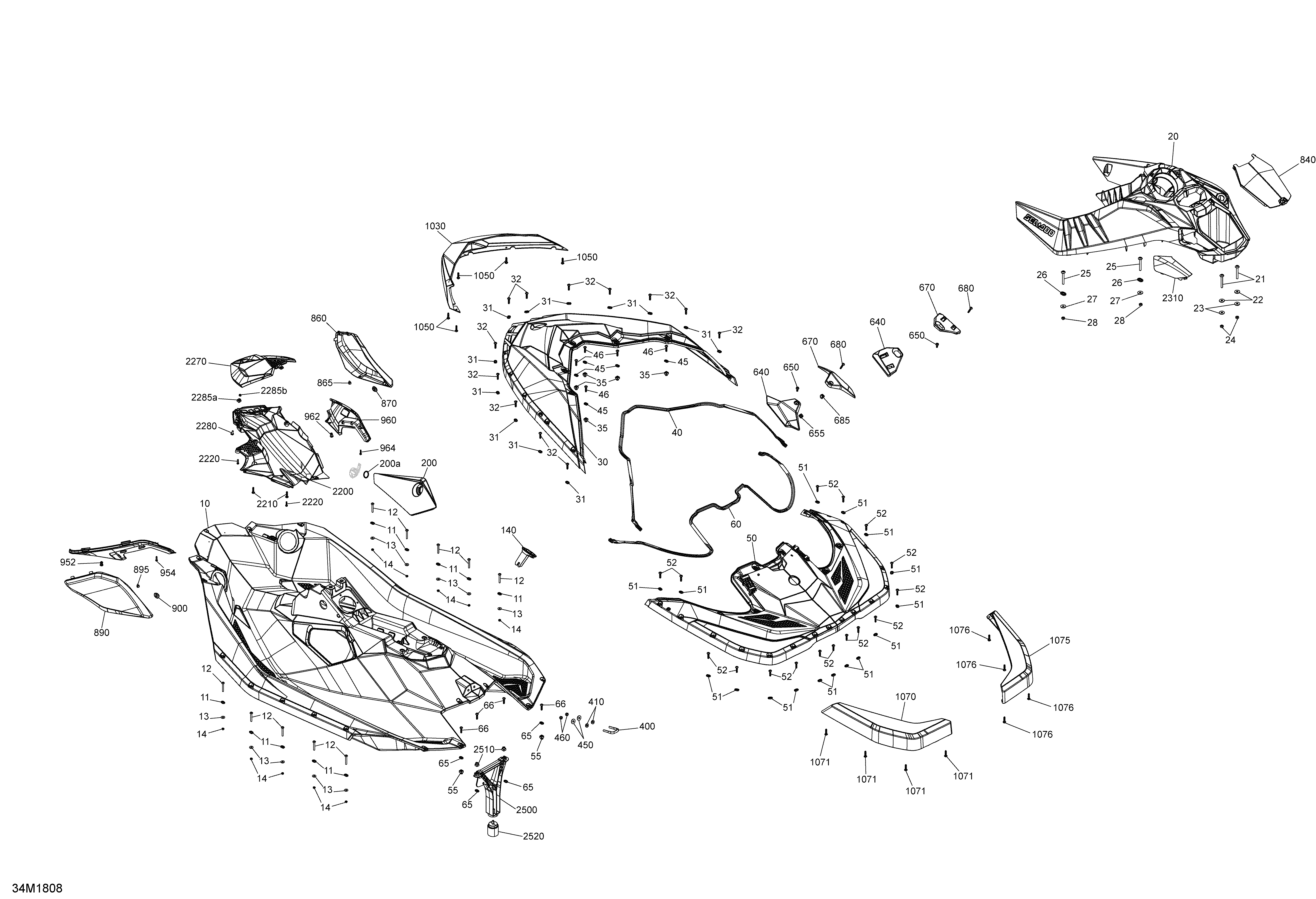

09- Body Spark - 900 ACE для BRP 1- Spark 900 ACE - 2018
-
№АртикулНазвание
-
10291004646 Mid DeckMid Deck
-
11291003880 Oval WasherOval Washer
-
12250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
20291004493 ConsoleConsole
-
21250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
22250200150 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
25250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
26291003880 Oval WasherOval Washer
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
30291004581 Front Deck Bright WhiteFront Deck Bright White
-
30291004725 Yellow, Front DeckYellow, Front Deck
-
30291004727 Black, Front DeckBlack, Front Deck
-
31291003880 Oval WasherOval Washer
-
32250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
35291003793 InsertInsert
-
40293250341 Seal JointSeal Joint
-
45291003880 Oval WasherOval Washer
-
46250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
50291004586 Rear Deck Bright WhiteRear Deck Bright White
-
50291004728 Yellow, Rear DeckYellow, Rear Deck
-
50291004730 Black, Rear DeckBlack, Rear Deck
-
51291003880 Oval WasherOval Washer
-
52250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
55291003793 InsertInsert
-
60293250340 Seal JointSeal Joint
-
65291003880 Oval WasherOval Washer
-
66250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
140291003390 Rear Access CoverRear Access Cover
-
200291004155 Front Access Cover. Includes 200 to 200aFront Access Cover. Includes 200 to 200a
-
200a293300121 O-RingO-Ring
-
400292000933 U-ClampU-Clamp
-
410293050001 Flat WasherFlat Washer
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
640291003883 LH Rear Panel TrimLH Rear Panel Trim
-
650250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
655291003793 InsertInsert
-
670291003884 RH Rear Panel TrimRH Rear Panel Trim
-
680250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
685291003793 InsertInsert
-
840291003378 Glove Box CoverGlove Box Cover
-
860291004731 Blue, RH Knee PadsBlue, RH Knee Pads
-
860291004733 Blue, RH Knee PadsBlue, RH Knee Pads
-
860291004734 Orange, RH Knee PadsOrange, RH Knee Pads
-
865293830005 Rubber BumperRubber Bumper
-
870705000321 Oval WasherOval Washer
-
890291004735 Blue, LH Knee PadsBlue, LH Knee Pads
-
890291004737 Blue, LH Knee PadsBlue, LH Knee Pads
-
890291004738 Orange, LH Knee PadsOrange, LH Knee Pads
-
895293830005 Rubber BumperRubber Bumper
-
900705000321 Oval WasherOval Washer
-
950291004524 Panel Trim LHPanel Trim LH
-
952293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
954211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
960291004525 Panel Trim RHPanel Trim RH
-
962293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
964211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
1030291004567 Front BumperFront Bumper
-
1050250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1070291004568 Rear Bumper LHRear Bumper LH
-
1071250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1075291004569 Rear Bumper RHRear Bumper RH
-
1076250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
2200291004575 Inferior CoverInferior Cover
-
2210250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
2220211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
2270291004592 Front Trim Gulfstream BlueFront Trim Gulfstream Blue
-
2270291004739 Yellow, Front TrimYellow, Front Trim
-
2270291004741 Orange, Frontal TrimOrange, Frontal Trim
-
2280250000829 Torx-Truss M/S Stlss M6 X 20Torx-Truss M/S Stlss M6 X 20
-
2285269501166 Nut Housing Ass'y. Includes 2285 to 2285bNut Housing Ass'y. Includes 2285 to 2285b
-
2285a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2285b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2310291003702 CapCap
-
2500291003440 Rear SupportRear Support
-
2510291003793 InsertInsert
-
2520291003694 Rear Support MountRear Support Mount
