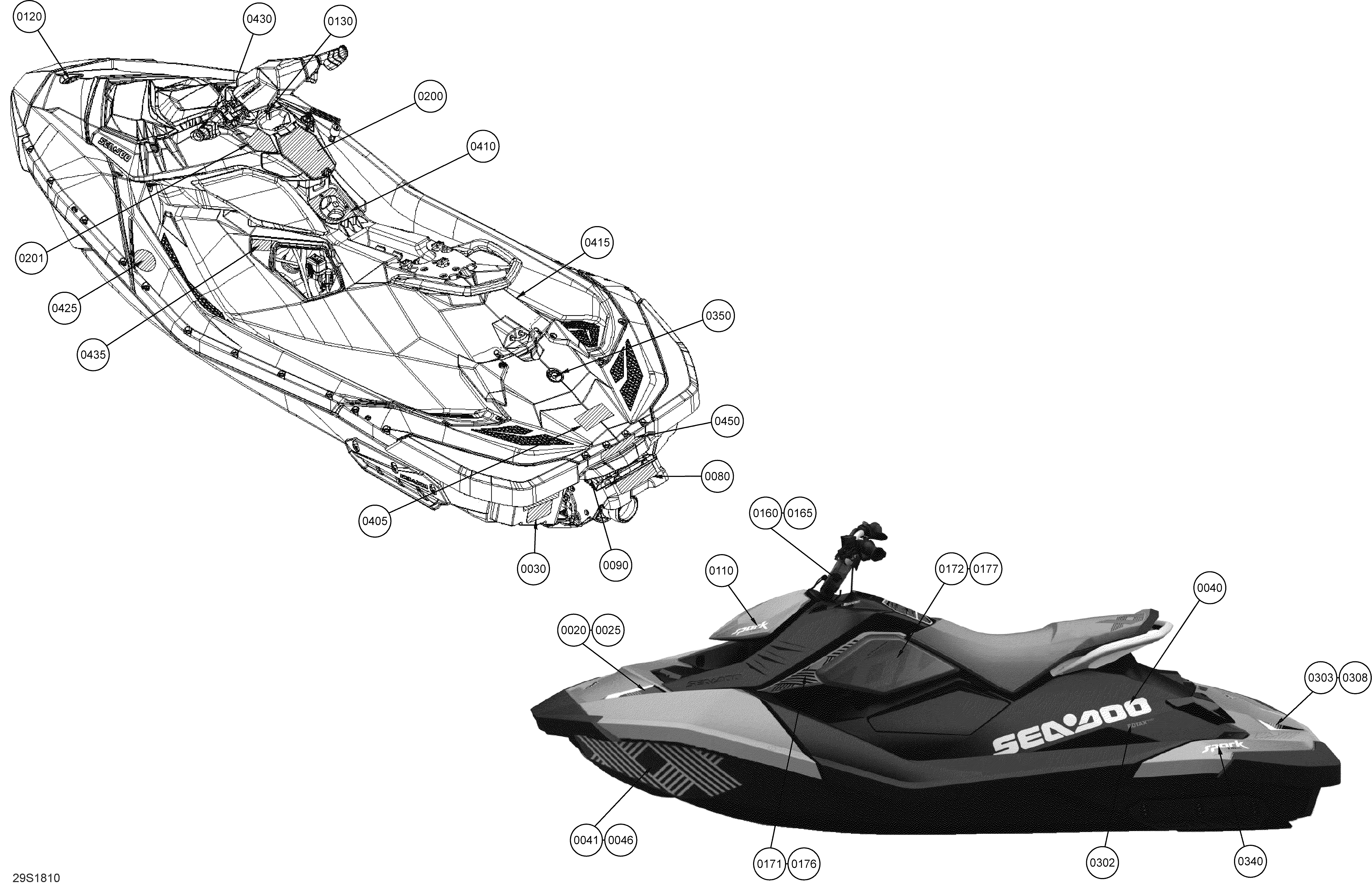

09- Decals SPARK - 900 ACE для BRP 1- Spark 900 ACE - 2018
-
№АртикулНазвание
-
30219904060 Decal Caution, Burns And NoticeDecal Caution, Burns And Notice
-
40219905304 Decal Sea-DooDecal Sea-Doo
-
80219904396 Decal Warning, Reverse GateDecal Warning, Reverse Gate
-
90219904804 Pictogram Foot Gate LabelPictogram Foot Gate Label
-
110219904666 Spark Logo BlueSpark Logo Blue
-
110219905038 White Decal SparkWhite Decal Spark
-
110219905039 Blue Reef, Spark LogoBlue Reef, Spark Logo
-
120516008739 Logo BRPLogo BRP
-
130704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
200219904030 Decal Warning, SecurityDecal Warning, Security
-
201219904655 Decal, InstructionDecal, Instruction
-
302516008069 Rotax Power DecalRotax Power Decal
-
340219905041 Logo Spark Orange MangoLogo Spark Orange Mango
-
340219905042 Logo Spark Reef BlueLogo Spark Reef Blue
-
340219905044 Logo Spark Gulfstream BlueLogo Spark Gulfstream Blue
-
350516008738 Logo BRPLogo BRP
-
405219904272 Decal, ExemptionDecal, Exemption
-
410219904029 Decal Warning, GasolineDecal Warning, Gasoline
-
415219904062 Decal Caution, Engine OilDecal Caution, Engine Oil
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219904805 Pictogram No Objects LabelPictogram No Objects Label
-
435219904283 Decal Warning, BatteryDecal Warning, Battery
-
450219904576 Decal Warning, Re-BoardDecal Warning, Re-Board
-
720219902678 Label, Information. Not ShownLabel, Information. Not Shown
