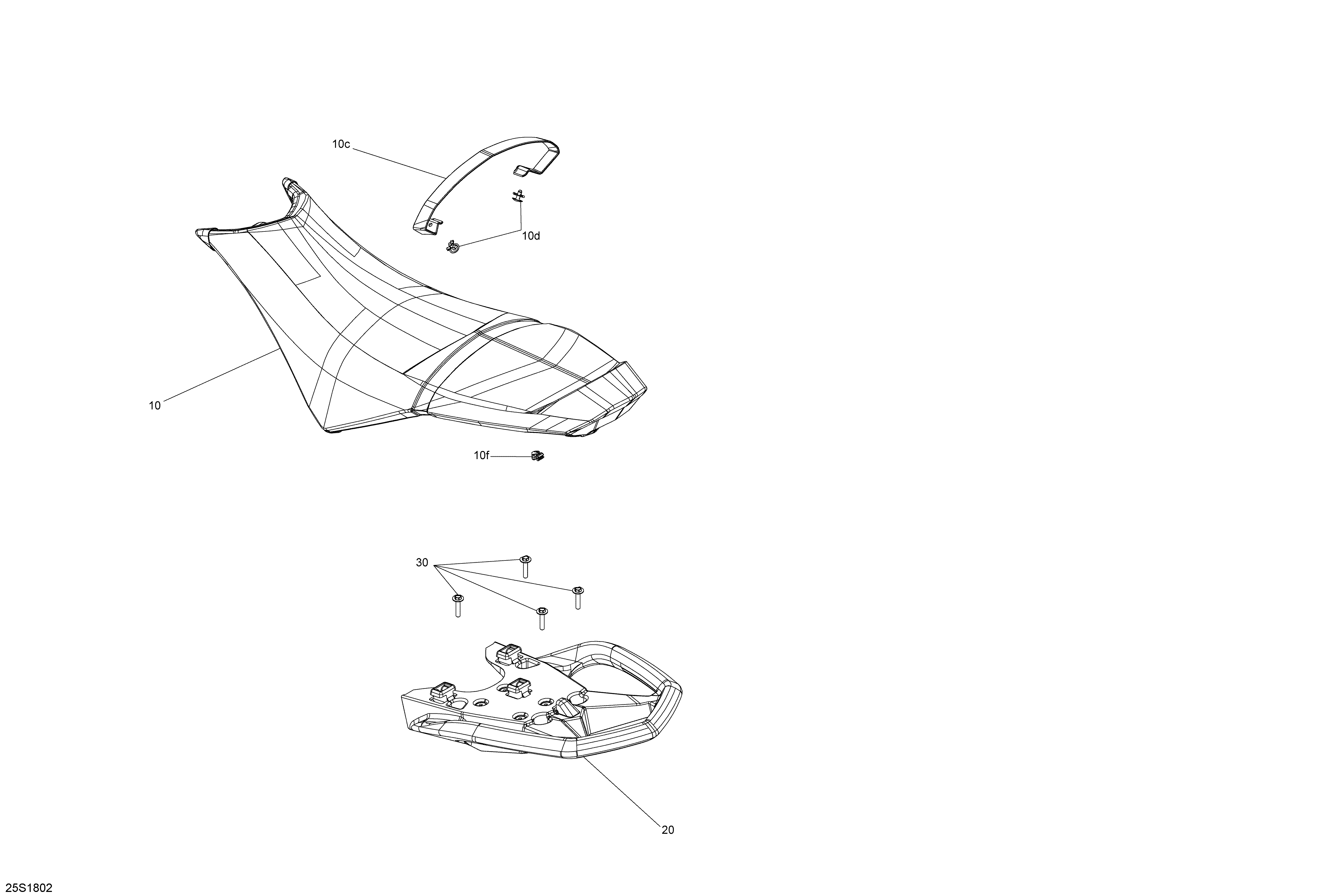

09- Seat Spark - 900 ACE для BRP 1- Spark 900 ACE - 2018
-
№АртикулНазвание
-
10269003093 Seat Ass'y. Model White/Blue. Includes 10 to 10fSeat Ass'y. Model White/Blue. Includes 10 to 10f
-
10269003106 Seat Ass'y. Model Yellow/Reef Blue. Includes 10 to 10fSeat Ass'y. Model Yellow/Reef Blue. Includes 10 to 10f
-
10269003123 Seat Ass'y. Model Black/Orange. Includes 10 to 10fSeat Ass'y. Model Black/Orange. Includes 10 to 10f
-
10c269002951 Gulfstream Blue Seat Strap. Model White/BlueGulfstream Blue Seat Strap. Model White/Blue
-
10c269003112 Reef Blue, Seat Strap. Model Yellow/Reef BlueReef Blue, Seat Strap. Model Yellow/Reef Blue
-
10c269003125 Mango Orange, Seat-Strap. Model Black/OrangeMango Orange, Seat-Strap. Model Black/Orange
-
10d293150067 RivetRivet
-
10f293720100 Rubber StopperRubber Stopper
-
20291004527 Grab HandleGrab Handle
-
30250000689 Hex. Cap Screw M6.8Hex. Cap Screw M6.8
