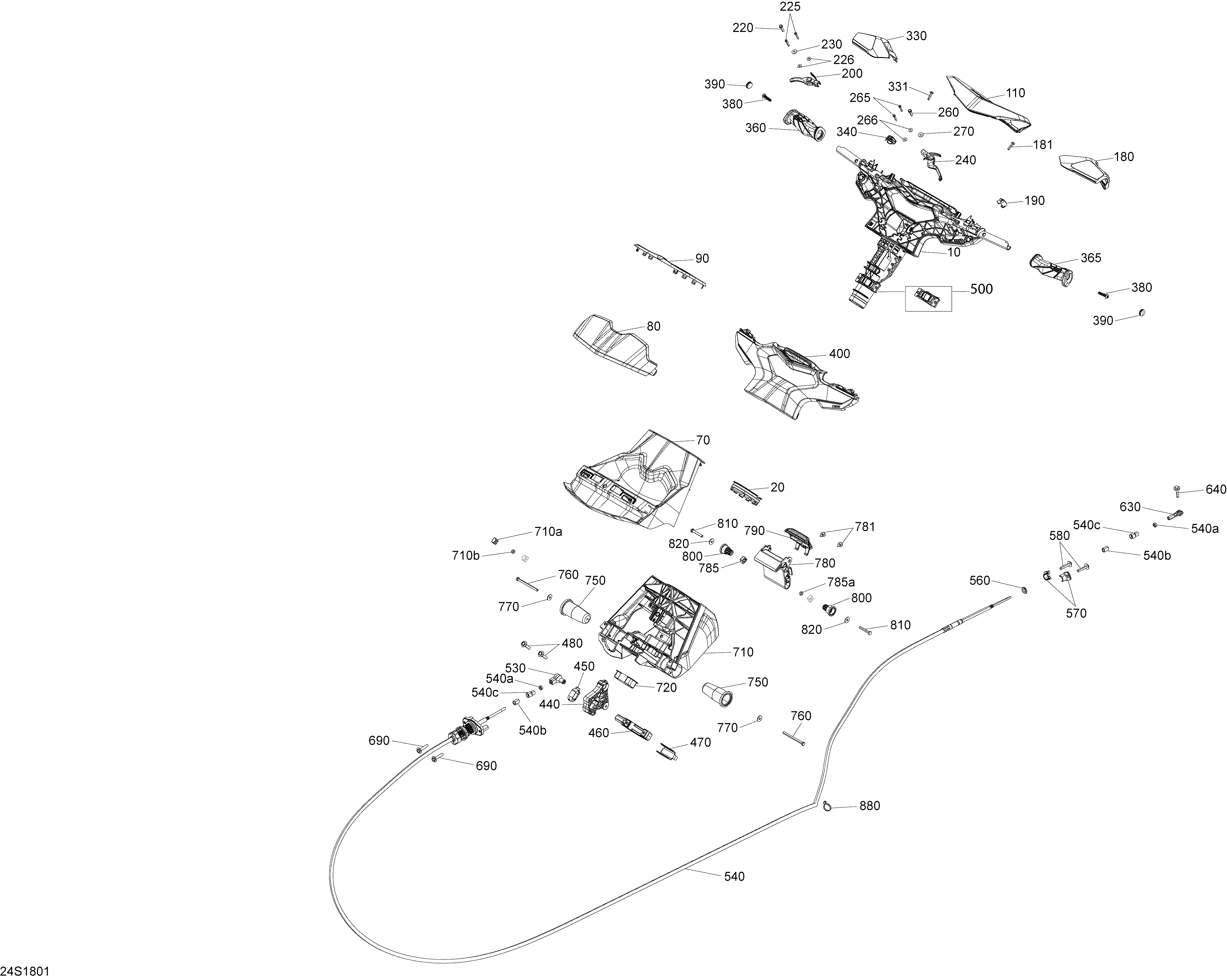

07- Steering - Wake Package Pro для BRP 2- WAKE PRO 230 - 2018
-
№АртикулНазвание
-
10277001979 Steering ColumnSteering Column
-
20277001874 Wear RingWear Ring
-
70277002072 Cluster SupportCluster Support
-
80277001981 Cluster CoverCluster Cover
-
90277002074 Bezel For Speed IndicatorBezel For Speed Indicator
-
91705012354 LH Trim Dragon RedLH Trim Dragon Red
-
92705012355 RH Trim Dragon RedRH Trim Dragon Red
-
110277001988 Steering Pad B-160Steering Pad B-160
-
180277001983 LH Housing CoverLH Housing Cover
-
181211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
190277002052 Push Button RedPush Button Red
-
200277001944 Throttle HandleThrottle Handle
-
220211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
230234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
235241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
236234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse HandleReverse Handle
-
260211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
270234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
275241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
276234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
330277001984 RH Housing CoverRH Housing Cover
-
331211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
340277002053 Push Button GreyPush Button Grey
-
360277002014 Handle Grip RHHandle Grip RH
-
365277002015 Handle Grip LHHandle Grip LH
-
380250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
390277000203 Black CapBlack Cap
-
400277001985 Steering CoverSteering Cover
-
440277002081 Arm SteeringArm Steering
-
450277002075 Bushing SteeringBushing Steering
-
460277001987 ArmArm
-
470277001654 SpacerSpacer
-
480250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
530277002011 End FittingEnd Fitting
-
540>540c277001989 Steering Cable. Includes 540 to 540cSteering Cable. Includes 540 to 540c
-
540a211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540b277001582 Small BootSmall Boot
-
540c277001583 Large BootLarge Boot
-
560293830063 Rubber WasherRubber Washer
-
570277001856 Ring HalvesRing Halves
-
580250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
630277000775 Ball JointBall Joint
-
640>640a250000970 Hex Sems Screw M6X35. Includes 640 to 640aHex Sems Screw M6X35. Includes 640 to 640a
-
640a250000969 Hex Screw M6X35Hex Screw M6X35
-
690250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
710>710c277002087 Steering Support Assembly. Includes 710 to 710cSteering Support Assembly. Includes 710 to 710c
-
710a269501166 Nut Housing Ass'yNut Housing Ass'y
-
710b269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
710c232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
720277001741 Wear RingWear Ring
-
750277001605 Steering Support PivotSteering Support Pivot
-
760207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
780277001996 Adjustment HandleAdjustment Handle
-
781293830005 Rubber BumperRubber Bumper
-
785>785b269501166 Nut Housing Ass'y. Includes 785 to 785bNut Housing Ass'y. Includes 785 to 785b
-
785a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
785b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
790277002010 LockLock
-
800277001652 PivotPivot
-
810207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
820234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
